Megger DCM310 Clamp Meter, Max Current 400A ac CAT III 600 V

Megger

£80.00 / £96.00 incl VAT

⚡ Current only
⚡ Measures to 400 A.C. current
⚡ Compact pocket-sized design.
⚡ Data Hold feature
⚡ Long battery life
Price Pledge

Calibration Certificate

Add Calibration on your Clamp Meter.

Description

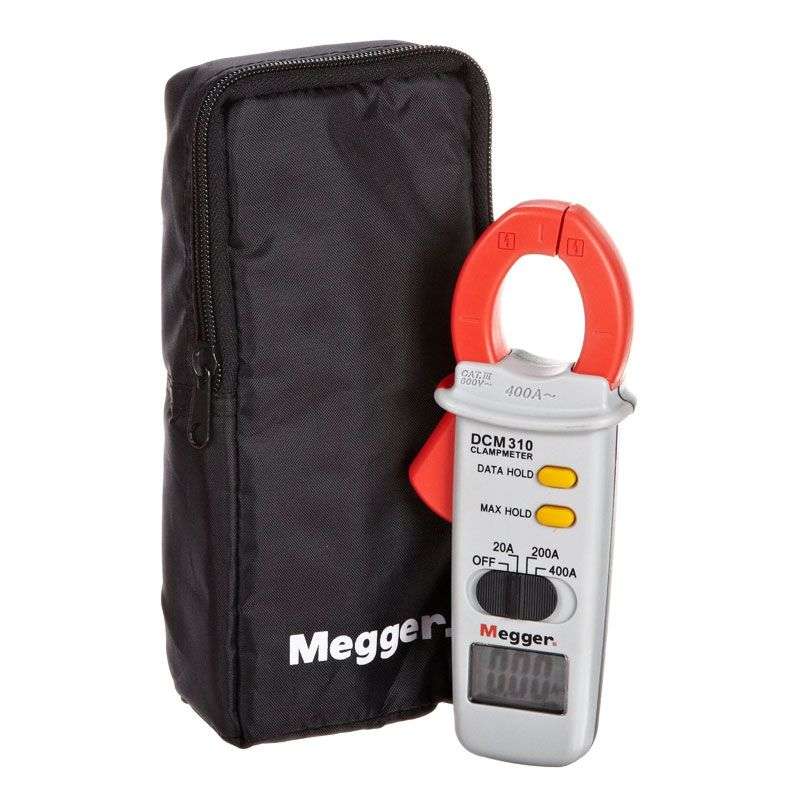

Megger DCM310 Digital Clamp Meter

Product Description:

Megger’s DCM310 is a great tool for carrying out quick and easy evaluations of current, making it an ideal tool for use in everywhere from domestic electrical jobs to use in industrial environments.

It’s capable of measuring AC current (50-60Hz) up to a threshold of 400A and includes a built-in data hold function that can be used to freeze the last value taken on the screen for easy referencing. If you’re measuring over a time period the DCM310 also includes a built-in MAX feature that allows users to calculate, store and display the maximum value measured during the period of testing.

Rugged and durable, the Megger DCM310 is also drop-tested to a height of 1.2m. The jaws of the device (which are used to clamp around the testing application) are 27mm in diameter (more than enough for most electrical testing applications).

The Megger DCM310 is IEC 61010 and CAT III 600V compliant.

Megger DCM310 Digital Clamp Meter Key Features

  • Current measuring device
  • Measures up to 400A
  • Low current ranges for improved resolution
  • MAX hold mode
  • Data hold function
  • Small design for inserting into difficult applications
  • 27mm jaws
  • CAT III 600V safety rated

Full List of Products Included

  • Megger DCM310 Digital Clamp Meter
  • Battery
  • Pouch
  • User Guide

Megger DCM310 Technical Specifications

AC Current Range 0-19.99A

20-199.9A

200-400A

AC Current Accuracy ±3% ±0.05A

±2% ±0.5A

±2% ± 0.5A

Sample Rate 2.5 times per second
Power Requirements 1 x PP3 9V Alkaline Battery
Battery Life 580 Hours
Operating Temperature 0-30, 30-40, 40-50°C
