Megger DCM320 Clamp Meter, Max Current 400A ac CAT III 600 V

Megger

£89.38 / £107.26 incl VAT

⚡ Robust and lightweight with operator safety and usability at the forefront of its design
⚡ 200-hour battery life
⚡ Safety rated to IEC 61010 CAT III 600 V,
⚡ Able to withstand a 1.2m drop

In stock (can be backordered)

Price Pledge

Calibration Certificate

Add Calibration on your Clamp Meter.

Description

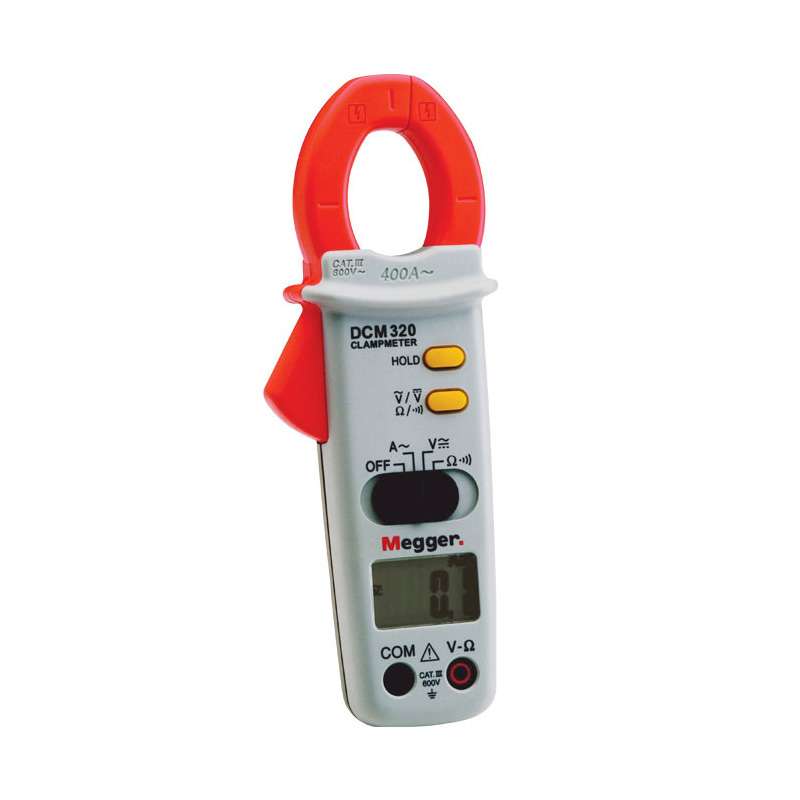

Megger DCM320 Digital Clamp Meter:

Product Details:

The Megger DCM320 is an ideal clamp meter for use during the installation, maintenance and checking of electrical systems and equipment.

The DCM 320 clamp meter will measure AC current (50 – 60 Hz) up to 400 A, with a Data-hold feature to freeze the displayed value for use in confined situations where the display may be difficult to read. The DCM320 has the benefit of measurement ranges for a.c. and d.c. voltages up to 600 V, and resistance up to 20 MΩ, via the terminals and supplied test leads. It also has a continuity buzzer that operates up to 20 Ω.

The Megger DCM320 clamp meter is safety rated to IEC 61010 CAT III 600 V, so offering high levels of protection to the operator. A carrying case is included, and even without the case, this current clamp meter is rated to withstand a 1.2 m drop onto a hard surface without damage. The compact clamp jaw enables cables to be measured as large as 27 mm diameter, so covering the majority of applications within the electrical system installation industry. Ideal for use by anyone working on basic electrical systems or equipment, these instruments are also suitable for the majority of applications encountered by the electrical contractor.

Key Features:

  • 600 V AC/DC measurement range
  • Resistance up to 20 MΩ
  • Robust, compact and lightweight
  • Extensive battery life
  • Auto power off functionality
  • Freeze frame data hold functionality
  • Max hold store and display
  • 2000 digit large scale readout
  • Compact clamp jaw measures up to 27mm diameter cables
  • 12-month warranty

Megger Part Number – 1000-304

Specifications

Attribute
Value
Absolute Maximum AC Current Measurement 400A ac
Absolute Maximum AC Voltage Measurement 600V ac
Absolute Maximum DC Voltage Measurement 600V dc
Absolute Maximum Resistance Measurement 20MΩ
Model Number DCM320
Calibrated RSCAL
Clamp Meter Type AC Current Clamp Meter
Best AC Current Accuracy ±1.9% ±5 Digits
Best AC Voltage Accuracy ±1.5% ±5 Digits
Best DC Voltage Accuracy ±1% ±2 Digits
Functions Measured AC Current
Absolute Maximum Temperature Measurement +50°C
Power Source Battery
Maximum Operating Temperature +50°C
Best Temperature Measurement Accuracy >80 %
Safety Category CAT III 600 V
Best Resistance Measurement Accuracy ±1.9% ±5 Digits
Dimensions 56 x 28 x 188mm
Battery Type 1.5 A Alkaline
Safety Category Voltage 600V
Safety Category Level CAT III
Weight 225g
Battery Life 200 h
Maximum Conductor Size 27mm
Length 56mm
Width 28mm
Display Type LCD
Minimum Operating Temperature 0°C
Height 188mm

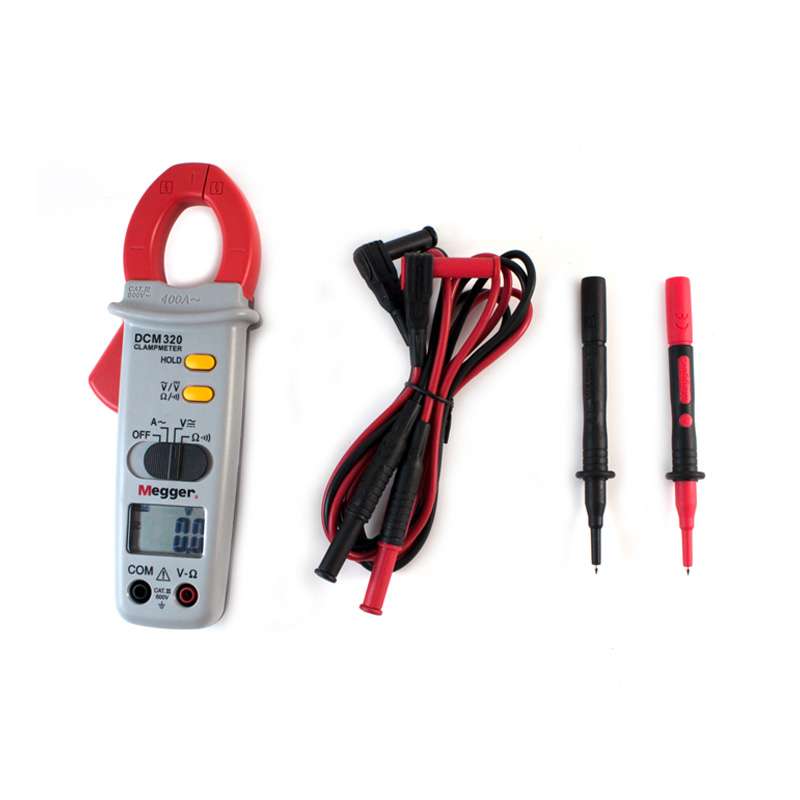

  • Megger DCM320 Digital Clamp Meter
  • Battery
  • Pouch
  • User Guide
