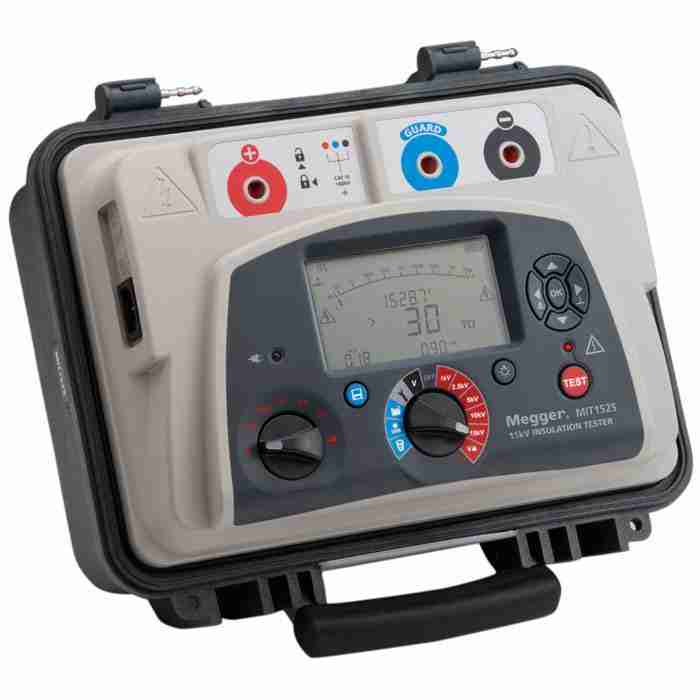

Megger MIT1525 15kV Insulation Resistance Tester

Megger

£4,995.00 / £5,994.00 incl VAT

⚡ Outputs up to 15kV DC
⚡ Measures insulation resistance up to 30TΩ
⚡ Includes testing modes: PI, DAR, DD, Step Voltage, Ramp
⚡ Stores results with time/date stamping
Rugged IP65-rated design with dual-case protection
⚡ Operates on Li-ion battery or mains supply

Available on back-order

SKU: MEG-MIT1525 Category: Brand:

Description

Megger MIT1525 15kV Insulation Resistance Tester

Product Details:

The Megger MIT1525 is a high-performance insulation resistance tester designed for professional use, completing Megger’s range of high-voltage MIT testers. With an output of up to 15kV DC and the capability to measure insulation resistance values as high as 30TΩ, the MIT1525 is the ideal tool for advanced insulation testing across a variety of industrial applications.

Comprehensive Testing Capabilities

The MIT1525 offers a versatile array of testing modes to suit any insulation diagnostic requirement, including:

  • Timed Insulation Resistance Testing
  • Polarisation Index (PI)
  • Dielectric Absorption Ratio (DAR)
  • Step Voltage Testing
  • Dielectric Discharge (DD)
  • Ramp Testing

Step voltage testing is particularly useful to assess the insulation and cables’ ability to withstand day-to-day voltage spikes, such as those generated by motors in operation. The MIT1525 allows fine-tuned step-voltage adjustments: 25V increments between 1kV and 5kV, and 50V increments between 5kV and 15kV.

Enhanced Data Management

The MIT1525 features an advanced internal memory system with time and date stamping, allowing users to store up to 5.5 hours of measurements taken at 5-second intervals. Data can be reviewed directly on the large backlit screen or exported to a PC using the included Megger PowerDB Lite software via USB for live-time analysis and reporting.

Designed for Ease of Use and Durability

With its dual rotary switches, the MIT1525 is intuitive to operate, even in demanding environments. The large, backlit display simultaneously shows critical testing parameters such as:

  • Resistance
  • Voltage
  • Leakage Current
  • Capacitance
  • Battery Level
  • Test Time

The rugged dual-case design provides excellent protection from impacts and is fire retardant, ensuring long-lasting reliability. When closed, the lid creates a secure seal offering IP65-rated moisture and dust resistance, making the MIT1525 suitable for use in harsh environments.

Power Options and Calibration

The instrument operates on a rechargeable Li-ion battery or AC mains supply, offering flexibility for field and workshop use. Each MIT1525 comes with a calibration certificate as standard, ensuring precise and reliable measurements.


Why Insulation Resistance Testing Matters

Insulation can degrade over time due to factors such as temperature, current flow, physical wear, chemical exposure, and environmental conditions. Regular insulation resistance testing is crucial for maintaining both the safety and reliability of electrical installations, helping prevent costly failures or hazards in service.


Key Features at a Glance

  • High voltage testing up to 15kV DC
  • Measures resistance up to 30TΩ
  • Multiple testing modes: PI, DAR, DD, Step Voltage, Timed Testing, Ramp
  • Step voltage settings: 25V steps (1kV-5kV), 50V steps (5kV-15kV)
  • Large, intuitive display with simultaneous parameter viewing
  • Data storage with time/date stamping and live-time analysis via USB
  • Rugged, IP65-rated dual-case design for durability
  • Powered by Li-ion battery or mains
  • Supplied with Megger PowerDB Lite software and calibration certificate

The Megger MIT1525 is the perfect choice for professionals needing reliable, accurate, and durable high-voltage insulation resistance testing equipment.

Megger vs Chauvin Arnoux: Find Your Best Match:


Feature

Megger MIT515

Chauvin Arnoux

CA 6505

Chauvin Arnoux

CA 6545



Megger MIT525

Chauvin Arnoux

CA 6547

Chauvin Arnoux

CA 6549



Megger MIT1025

Chauvin Arnoux

CA 6550



Megger MIT1525

Chauvin  Arnoux

CA 6555

Best ForEntry-level 5kV testing, simple operationEntry-level insulation testing with low TΩ rangeMid-range testing with additional diagnosticsAdvanced 5kV testing with extra test typesHigh-precision testing up to 35 TΩMost versatile 5kV option with wide voltage rangeHigh-performance testing up to 20 TΩExtreme accuracy for high-resistance systemsUltimate high-voltage tester (15kV, versatile)Ultimate precision for demanding industrial systems
Test Voltage
15.0 kV
10.0 kV
5.0 kV
2.5 kV
1.0 kV
500 V
250 V
Measurement
Max reading10 TΩ10 TΩ10 TΩ10 TΩ20 TΩ50 TΩ20 TΩ50 TΩ30 TΩ100 TΩ
Min reading10 kΩ1 kΩ1 kΩ10 kΩ1 kΩ1 kΩ10 kΩ1 kΩ10 kΩ1 kΩ
Voltage
Capacitance
Leakage current
Test Types
Timed insulation resistance
Polarisation index
Dielectric absorption index
Step voltage
Dielectric discharge
Ramp
Other Features
Analogue and digital display
Short circuit current3 mA3 mA3 mA3 mA3 mA3 mA3 mA3 mA4 mA4 mA
Rechargeable
Timer control and display
Max noise rejection3 mA3 mA3 mA3 mA3 mA3 mA3 mA3 mA4 mA4 mA
USB output
SoftwarePowerDB LitePowerDB LitePowerDB LitePowerDB Lite



What’s In The Box?

  • Megger MIT1525 15kV Insulation Resistance Tester
  • Power lead
  • USB cable
  • PowerDB Lite software
  • Product Information CD
  • 3m leadset x 3, large 15 kV insulated clip 1002-949
  • Calibration Certificate
