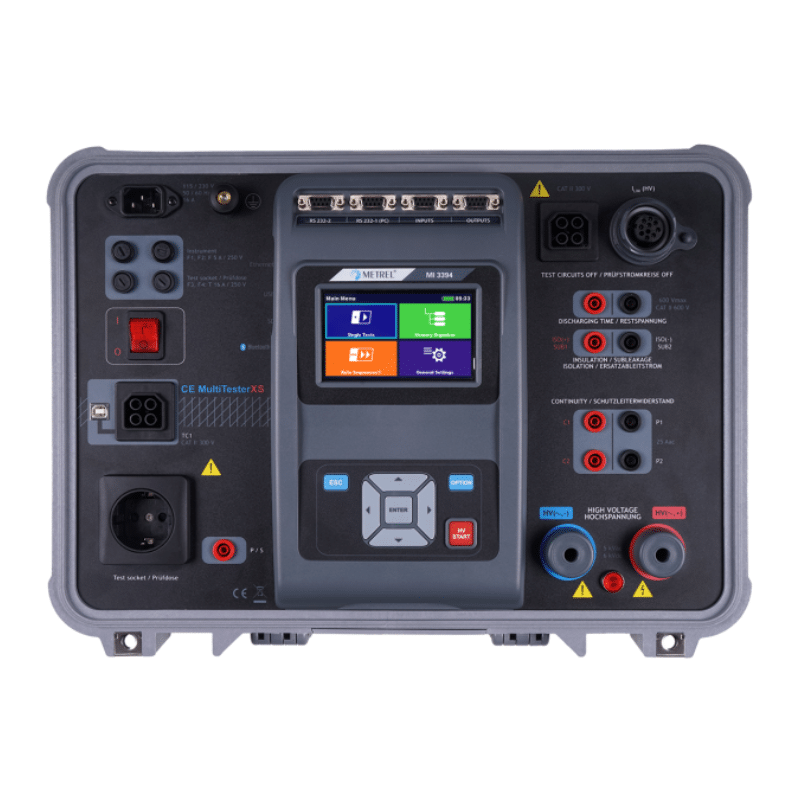

Metrel MI 3394 CE High Voltage Electrical Safety Multitester

Metrel

Price range: £4,379.76 through £6,240.30

⚡ Hi-pot high voltage test (5kV AC, 6kV DC)
⚡ Four-wire continuity testing with selectable current options (0.2A, 4A, 10A, 25A)
⚡ Comprehensive leakage current measurement (substitute, differential, touch, PE)
⚡ Multiple connectivity options including RS-232, Bluetooth, and USB
⚡ Portable design with integrated handles and 3.5” color touchscreen display
SKU: N/A Category: Brand:

Description

Metrel MI 3394 CE High Voltage Electrical Safety Multitester

Product Details:

The Metrel MI 3394 CE Electrical Safety Multitester is a versatile tool designed for verifying that electrical appliances and systems comply with CE electrical safety standards. It is compatible with TT, TN, IT, and 115V supply systems. The tester supports various tests and measurements, including AC/DC high voltage, continuity, insulation resistance, and discharge time. It measures four types of leakage currents: substitute, differential, touch, and PE leakage current. Additionally, it offers tests for power (P/S/Q), voltage, current, power factor (cosϕ), frequency, total harmonic distortion (ThdU, ThdI), and power factor (PF).

Advanced features include high voltage testing at 5kV AC and 6kV DC, along with a four-wire continuity test that offers precision measurements with selectable current options (0.2A, 4A, 10A, 25A). The Metrel MI 3394 also facilitates earth/ground bond testing.

The device features multiple test terminals for individual tests or automated test sequences, which can be conducted with a single socket using the optional CE A1460 test adapter. Data management is streamlined with built-in software, allowing for easy organization of saved results. Memory is expandable via a removable micro-SD card, with an 8GB card included, and support for up to 32GB.

The tester offers three connectivity options—RS-232, Bluetooth, and USB—enabling communication with other devices for data transfer, remote control, and test program uploads. The results and menus are displayed on a 3.5” color LCD touchscreen, making operation intuitive and user-friendly. Despite its extensive capabilities, the MI 3394 remains portable with integrated handles for easy transport, ensuring robust performance without compromising ease of use.

Key Features:

  • Hi-pot high voltage test (5kV AC, 6kV DC)
  • Four-wire continuity testing (0.2A, 4A, 10A, 25A)
  • Insulation resistance testing
  • Discharge time measurement
  • Leakage current measurement (substitute, differential, touch, PE)
  • System tests (power P/S/Q, voltage, current, cosϕ, frequency, ThdU, ThdI, PF)
  • Micro-SD card slot with 8GB card included (supports up to 32GB)
  • RS-232, USB, and Bluetooth connectivity
  • 3.5” color touchscreen display
  • Multiple test terminals
  • Auto-test sequence capability
  • Suitable for TT, TN, IT, and 115V systems
  • Integrated handles for portability

Available Kits:

Standard Set:

  • MI 3394 CE MultiTesterXA
  • 2 x 5m HV test leads (without pistols)
  • Continuity and insulation test leads
  • Crocodile clips
  • Discharge time cable
  • Mains cable
  • Accessory bag
  • Calibration certificate
  • RS-232 and USB cables
  • CD with full instruction manual
  • Metrel ES Manager BASIC license

Euro Set:

  • MI 3394 CE MultiTesterXA
  • HV test pistols with 2m cables
  • Continuity and insulation test leads
  • Crocodile clips
  • Discharge time cable
  • Mains cable
  • Accessory bag
  • Calibration certificate
  • RS-232 and USB cables
  • CD with full instruction manual
  • Metrel ES Manager BASIC license

Line Set:

  • MI 3394 CE MultiTesterXA
  • CE Test adapter A 1460 with Tip Commander (2.5m)
  • Barcode scanner A 1105
  • Continuity and insulation test leads
  • Crocodile clips
  • Discharge time cable
  • Mains cable
  • Accessory bag
  • Calibration certificate
  • RS-232 and USB cables
  • USB isolator A 1521
  • CD with full instruction manual
  • Metrel ES Manager BASIC license

Lab Set:

  • MI 3394 CE MultiTesterXA
  • Burn Link adapter A 1560
  • HV test pistols with 2m cables
  • Continuity and insulation test leads
  • Crocodile clips
  • Discharge time cable
  • Mains cable
  • Accessory bag
  • Calibration certificate
  • RS-232 and USB cables
  • CD with full instruction manual
  • Metrel ES Manager BASIC license

The Metrel ES Manager software can be downloaded for free from the Metrel website.
