Metrel MI 6601 MediTest


£6,600.00 / £7,920.00 incl VAT
⚡ Comprehensive medical equipment safety testing compliant with IEC/EN 60601 and IEC/EN 62353 standards.
⚡ Standalone operation or PC integration with Metrel Medical Electrical Safety Manager software.
⚡ 10 universal configurable connections for versatile testing capabilities.
⚡ Automated test sequences with Auto Sequences® for efficiency and accuracy.
⚡ Detailed reports with Metrel Cloud integration for storage and compliance documentation.
Available on back-order
Description
Product Video:
Click Here for Metrel MI 6601 MediTest: Technical Data Specification
Workspaces
⚡ Medical Mode: Supported
⚡ Portable Appliance Mode: Supported
⚡ Visual Inspection Mode: Supported
AUTOSEQUENCES®
⚡ AUTOSEQUENCE Profile: Supported
⚡ AUTOSEQUENCE Programmable: Supported
⚡ Custom Visual/Functional Inspection: Supported
⚡ AUTOSEQUENCE Medical: Supported
⚡ AUTOSEQUENCE Medical IEC 60601: Supported
⚡ AUTOSEQUENCE Medical IEC 62353: Supported
⚡ AUTOSEQUENCE PAT: Supported
⚡ PASS/FAIL System Evaluation: Supported
⚡ On-Site Parameter Settings: Supported
⚡ Shorten Sequence On-Site: Supported
Advanced User Interface
⚡ Colour Display: Supported
⚡ Touch Screen: Supported
⚡ Adaptable User Interface: Supported
⚡ Graphical Help Menus: Supported
Database System Built-In
⚡ Programmable Memory Structure: Supported
⚡ Multi-Level Memory Organiser: Supported
SDK Support
⚡ Upload Structure: Supported
⚡ Upload Measurements: Supported
⚡ Download: Supported
Main Features
Voltage
⚡ Voltage TRMS: Supported
⚡ Mains Voltage: Supported
Earth Bond / Continuity
⚡ Max Test Current 200 mA (2-Wire): Supported
⚡ Max Test Current 25 A (2-Wire): Supported
Insulation Resistance
⚡ Test Voltage 250 V: Supported
⚡ Test Voltage 500 V: Supported
⚡ Max Resistance Range 200 MOhm: Supported
⚡ Automatic Discharge: Supported
⚡ IEC 62353 Connections: Supported
Leakage Current
⚡ Differential Leakage: Supported
⚡ Touch Leakage Current: Supported
⚡ Substitute Leakage Current: Supported
⚡ PE Leakage Current: Supported
⚡ Equipment Leakage Current (Alt., Dir., Diff.): Supported
⚡ Applied Part Leakage Current (Alt., Dir., Diff.): Supported
⚡ Touch Leakage Current (Medical): Supported
⚡ Leakage Current with Optional Clamp: Supported
IEC 60601 Leakage Current
⚡ Earth Leakage: Supported
⚡ Patient Leakage: Supported
⚡ Patient Auxiliary Leakage: Supported
⚡ Total Patient Leakage: Supported
⚡ Vext on Applied Parts Leakage: Supported
⚡ Vext on SIO Patient Leakage: Supported
⚡ Vext on Functional Earth Patient Leakage: Supported
Polarity
⚡ IEC Lead Test / Polarity: Supported
Functional Test and Troubleshooting
⚡ Apparent Power (S): Supported
⚡ Power (P, Q, PF/Cosφ): Supported
⚡ Leakages (Touch, Diff.) & Power Measurements: Supported
⚡ THD (U, I): Supported
⚡ Energy: Supported
Power Measurements
⚡ Active Power: Supported
⚡ Reactive Power: Supported
⚡ Apparent Power: Supported
⚡ Power Factor: Supported
Harmonics Analysis
⚡ THD Current: Supported
⚡ THD Voltage: Supported
Applied Parts Connectors
⚡ 10 Separate Connections: Supported
Additional Features
Security
⚡ User Accounts: Supported
PASS / FAIL Indicators
⚡ PASS/FAIL Indicators: Supported
Display
⚡ LCD: Supported
⚡ Backlight: Supported
Keyboard
⚡ QWERTY Keyboard: Supported
⚡ Virtual Keyboard: Supported
Power Supply
⚡ 115 V (50-60Hz): Supported
⚡ 230 V (50-60Hz): Supported
Test Lead Compensation
⚡ Test Lead Compensation: Supported
Buzzer
⚡ Buzzer: Supported
Appliance Tests
⚡ 230 V Appliance Testing: Supported
⚡ 115 V Appliance Testing: Supported
Graphical User Interface
⚡ Graphical Online Help: Supported
Remote Communication
⚡ Remotely Controlled: Supported
⚡ Ethernet/Intranet Remote Communication: Supported
Communication Ports
⚡ USB: Supported
⚡ RS232 – PS/2: Supported
Built-In Bluetooth
⚡ Bluetooth: Supported
Memory
⚡ Internal Memory: Supported
⚡ MicroSD Memory Card: Supported
IP Protection
⚡ IP54 & IP65: Supported
Standards Compliance
Medical Electrical Equipment
⚡ IEC/EN 62353: Supported
⚡ IEC/EN 60601: Supported
⚡ VDE 0751-1: Supported
Portable Appliances Safety
⚡ EN 50699 & EN 50678: Supported
Instrument Safety
⚡ IEC/EN 61010 Series: Supported
EMC Safety
⚡ IEC/EN 61326: Supported

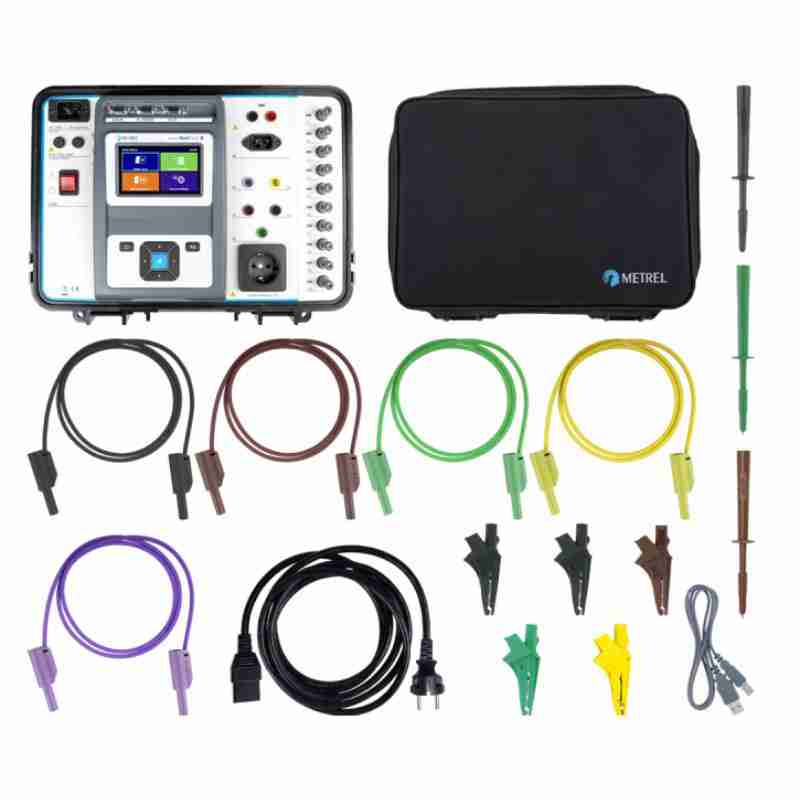

⚡Instrument MI 6601 MediTest
⚡A 1080 Mains cable
⚡A 1758 Test lead, black, 1 m
⚡A 1759 Test lead, brown, 1 m
⚡A 1760 Test lead, green, 1 m
⚡A 1761 Test lead, yellow, 1 m
⚡A 1762 Test lead, violet, 1 m
⚡A 1014 Test probe, black
⚡A 1298 Test probe, brown
⚡A 1062 Test probe, green
⚡A 1013 Crocodile clip, black, 2pcs
⚡A 1297 Crocodile clip, brown
⚡A 1309 Crocodile clip, green
⚡A 1546 Crocodile clip, yellow
⚡A 1727 USB cable
⚡A 1017 Communication cable RS232
⚡A 1500 Bag for accessories
⚡Subscription to Metrel Medical Software solution:
⚡Metrel Medical ES Manager
⚡Metrel Cloud Reports
⚡Metrel Cloud Storage
