Metrel MI2885 Master Q4 Class S Power Quality Analyser


£2,021.58 – £3,003.00Price range: £2,021.58 through £3,003.00
⚡ Four-channel TRMS voltage and current measurement with peak values and crest factor
⚡ Inrush current measurement with waveform display and snapshot functionality
⚡ Advanced power analysis compliant with IEEE 1459 and EN 50160 standards
⚡ Seven customizable alarms with event recording for shutdowns, swells, and dips
⚡ Includes 8GB micro-SD card, PowerView3 software, and remote connectivity via USB, ethernet, and RS23
Description

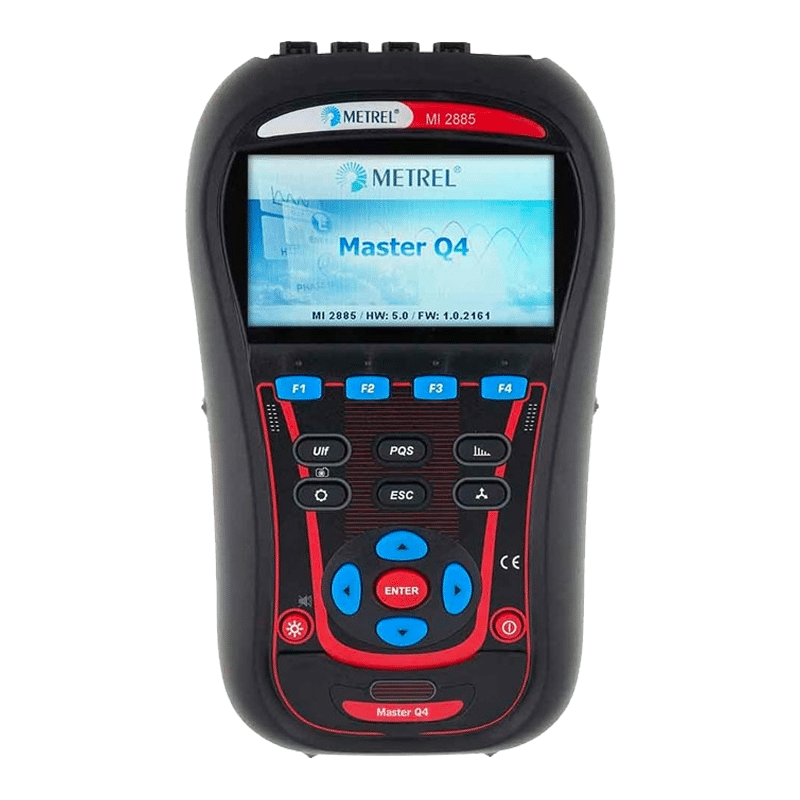

Metrel MI2885 Master Q4 Class S Power Quality Analyser
Product Details:
The Metrel MI2885 Master Q4 Class S Power Quality Analyser is an advanced instrument designed for comprehensive power quality assessment and detection of irregular electricity consumption patterns. It’s suitable for long-term monitoring of mid- to low-voltage electrical installations, enabling power quality analysis, verification of power correction, predictive maintenance, and system capacity checks.
With four channels for voltage and current measurement (TRMS, peak, and crest factor), the MI2885 provides detailed power analysis, including power factor (cos φ), fully compliant with IEEE 1459 and EN 50160 standards. The analyser offers extensive evaluation of unbalance, flicker, and harmonics up to the 50th order for deeper insights into system performance.
The Metrel MI2885 features seven customizable alarms to alert users to specific power issues and can capture and store data on power events such as interruptions, shutdowns, swells, and dips.
In addition to its standard analysis capabilities, the MI2885 can measure and record inrush current during motor start-up, displaying waveform and inrush details while capturing a snapshot of system status. Monitoring inrush is crucial for diagnosing malfunctions, making this an essential feature of the analyser.
Despite its advanced capabilities, the Metrel MI2885 is user-friendly, featuring a high-definition graphical display and intuitive menu navigation. It can also automatically recognize and configure smart current clamps, simplifying setup. The analyser comes with an 8GB micro-SD card (expandable up to 32GB), providing over a year of continuous data logging.
The Metrel MI2885 includes Metrel PC SW PowerView 3 software for seamless data transfer to a PC, automated report generation, and enhanced analysis. The device also supports remote monitoring via ethernet connection for live tracking.
The Metrel MI2885 is available in two set options. The standard set includes test probes, crocodile clips, test leads, data cables, software, and a soft carry case. The Euro set adds four one-phase flexible current clamps with a maximum range of 3000A.
Metrel part number: MI2885
Key Features:
- Four-channel voltage (TRMS, peak, crest factor)
- Four-channel current (TRMS, peak, crest factor)
- Inrush current measurement and waveform display
- Suitable for mid- to low-voltage installations
- Advanced power analysis (IEEE 1459)
- Seven adjustable alarms and event recording
- Measurement of start-up inrush current
- 8GB micro-SD card
- Capable of over one year’s continuous operation
- USB, ethernet and RS232 remote connection
What’s In The Box?
Standard Set
- Metrel MI2885 Master Q4 Power Quality Analyser
- Test probe, (brown, black, grey, green,blue), 5 pcs
- Crocodile clip, (brown, black, grey, green, blue), 5 pcs
- Voltage measurement lead, (brown, black, grey, green, blue), 5 pcs
- Labels for colour coding
- MicroSD memory card 8.0GB
- MicroSD card reader
- PC SW PowerView3
- RS232, USB and Ethernet patch cable
- Power supply adapter
- 1.2 V NiMH rechargeable battery, 6 pcs
- Soft carrying bag
- Instruction manual
- Calibration certificate
Euro Test Set (optional)
- As above but with 1-phase flexible current clamps 3000 / 300 / 30 A (A 1227), 4 pcs
