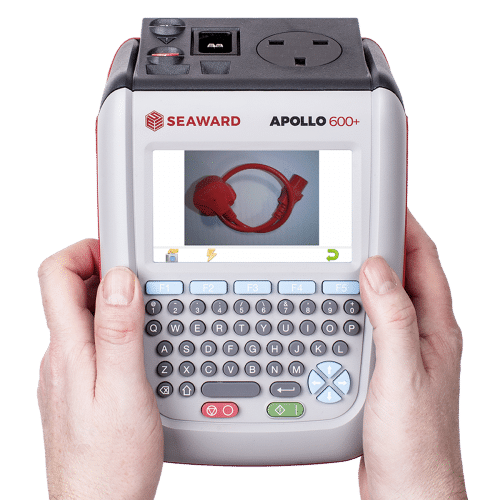

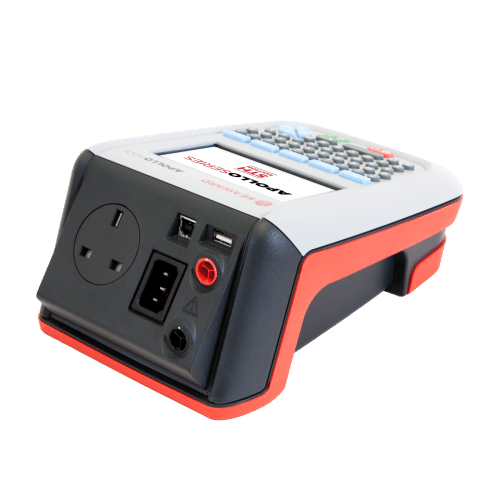

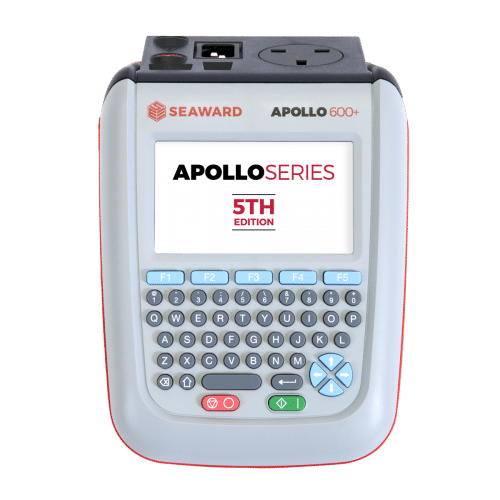

Seaward Apollo 600+ PAT Tester (380A926)
£1,334.40 / £1,112.00 excl VAT
IET Code of Practice Fully Compliant
Onboard colour camera with flash
Stores up to 2,000 images
Stores up to 50,000 appliance records
Bluetooth Printer & Scanner Capability
Description
Product Details:
The Seaward Apollo 600 embodies the latest development in health and safety management. They have managed this by incorporating risk assessment tools alongside the capabilities you would expect from a top of the range tester. The tester complies with the 4th Edition of the IET Code of Practice and the latest guidance from the HSE.
The tester offers a fully comprehensive array of tests including earth leakage, RCD trip time and touches current, the Apollo 600 Plus can ensure the electrical safety of all 230V and technical equipment along with the basic testing for 110V appliances. Seawards Apollo 600 can even test 3-phase equipment and point to point testing of fixed appliances.
The Tester has been built with a built-in risk assessment tool based on the latest IET Code of Practice, which makes it able to calculate individual re-test dates based on the risk associated with using each appliance. This innovative and unique feature provides users with the means to accurately schedule and manage the electrical safety procedures within their workplace. This prevents unnecessary testing.
The Apollo 600 can store 2,000 images and 50,000 test records. No other tester on the market provides a thorough method of documenting the Seawards Apollo Plus Series.
Key Features:
- RCD testing,
- Load testing,
- Leakage / Touch current measurement,
- QWERTY Layout Keyboard,
- Onboard Digital Colour Camera (With Flash),
- Bluetooth connectivity (Wireless),
- Risk assessment capability,
- Can store up to 50,000 Recordings and 2,000 images,
- Built-in universal and electrical risk assessment tools,
- Ability to use (2D) QR Codes
| Earth Continuity | |
| Test Current | ±200mA DC |
| Display Range | 0.01 to 19.99Ω |
| Pass Value | User-defined |
| Insulation Resistance | |
| Test Voltage | 500V / 250V DC @ 1mA nominal |
| Display Range | 0.01MΩ to 19.99MΩ |
| Pass Value | User-defined |
| IEC Lead Test | |
| Test Voltage | 5V AC nominal |
| Test | Live/neutral checks for o/c, s/c and crossed |
| Protective Conductor Current/Load | |
| Test Voltage | Supply voltage, maximum load current 16A |
| Display Range | 0.01mA to 19.99mA |
| Pass Value | User-defined |
| Touch Current | |
| Test Voltage | Supply voltage, maximum load current 16A |
| Display Range | 0.00 to 3.50mA |
| Pass Value | User-defined |
| Load Power/Current | |
| Test Voltage | 230V 10%, maximum load current 16A |
| Test Duration | Programmable up to a maximum of 255s depending on load. i.e. max duration is reduced for high loads |
| Display Range | 0.00kVA to 4.00kVA 0.00A to 16.00A |
| Alternative Leakage Current | |
| Test Voltages | >25V AC <50V AC |
| Display Range | 0.00mA to 19.99mA |
| Pass Value | User-defined |
| RCD Test | |
| Test Voltage | 230V 10%, -15% |
| Test Current | 15mA/30mA rms sinusoidal |
| Display Range | 0ms to 2000ms |
| Test Method | Internal isolation to avoid tripping distribution board RCDs |
| Power Socket Test | |
| Voltage Range | 207V to 253V AC |
| Indication of Voltage Potential | Line potential phase to earth Line potential phase to neutral Line potential neutral to earth |
| General Specifications | |
| Memory Size | 50000 records 2000 photos |
| Weight | 1.5kg |
| Dimensions | 230 x 150mm x 100mm |
| Power Source | Mains or rechargeable battery pack |
Comparison Chart
| General Features | 600 | 500 | 400 |
| Battery & mains powered | • | • | • |
| Colour screen & QWERTY keypad | • | • | • |
| Large internal memory | up to 50,000 records and 2,000 photos | up to 10,000 records | up to 2,000 records |
| Bluetooth scanner & printer compatible | • | • | • |
| Password controlled user accounts | • | • | |
| Set up multiple user accounts with varying levels of privileges | • | • | |
| Clone facility to set up multiple testers | • | • | |
| Checkbox supplied as standard | • | • | |
| Test Inspection Features | 600 | 500 | 400 |
| Auto-increment asset ID | • | • | |
| PAT Setup option to allow for custom menus | • | • | |
| Enter asset description after test using the keypad or barcode scanner | • | • | • |
| Comprehensive electrical safety test features | • | • | • |
| Point to point measurement (Rpe & IR) | • | • | Optional accessory required |
| User configurable electrical test/visual inspection sequences | 100 | 100 | 25 |
| User set sites & locations | 100 | 100 | 50 |
| Risk-based retest period calculator | • | • | |
| User definable comments lines against test records | 4 | 4 | |
| Configurable checklists for any workplace test or inspection (user tests) | • | • | |
| Onboard camera | • | ||
| Universal risk assessment | • | ||
| Health & safety certificates | • | ||
| Data Transfer | 600 | 500 | 400 |
| 1D and 2D Scanner connectivity | • | • | Reads 1D Data Only |
| Read QR code (2D) labels with 2D scanner | • | • | |
| RFID reader connectivity | • | • | |
| Print Pass & Fail labels with 1D barcode | • | • | • |
| Print Pass & Fail labels with QR code (2D) | • | • | |
| Add your company logo to labels (on large 1D labels only) | • | • | |
| Select from various label formats to print | 6 | 6 | 6 |
| Download to PC via USB cable | • | • | • |
| Data Transfer via USB flash drive | • | ||
| Filter results to be downloaded | • | • | • |
| Upload previous results to the tester for a retest | • | • |

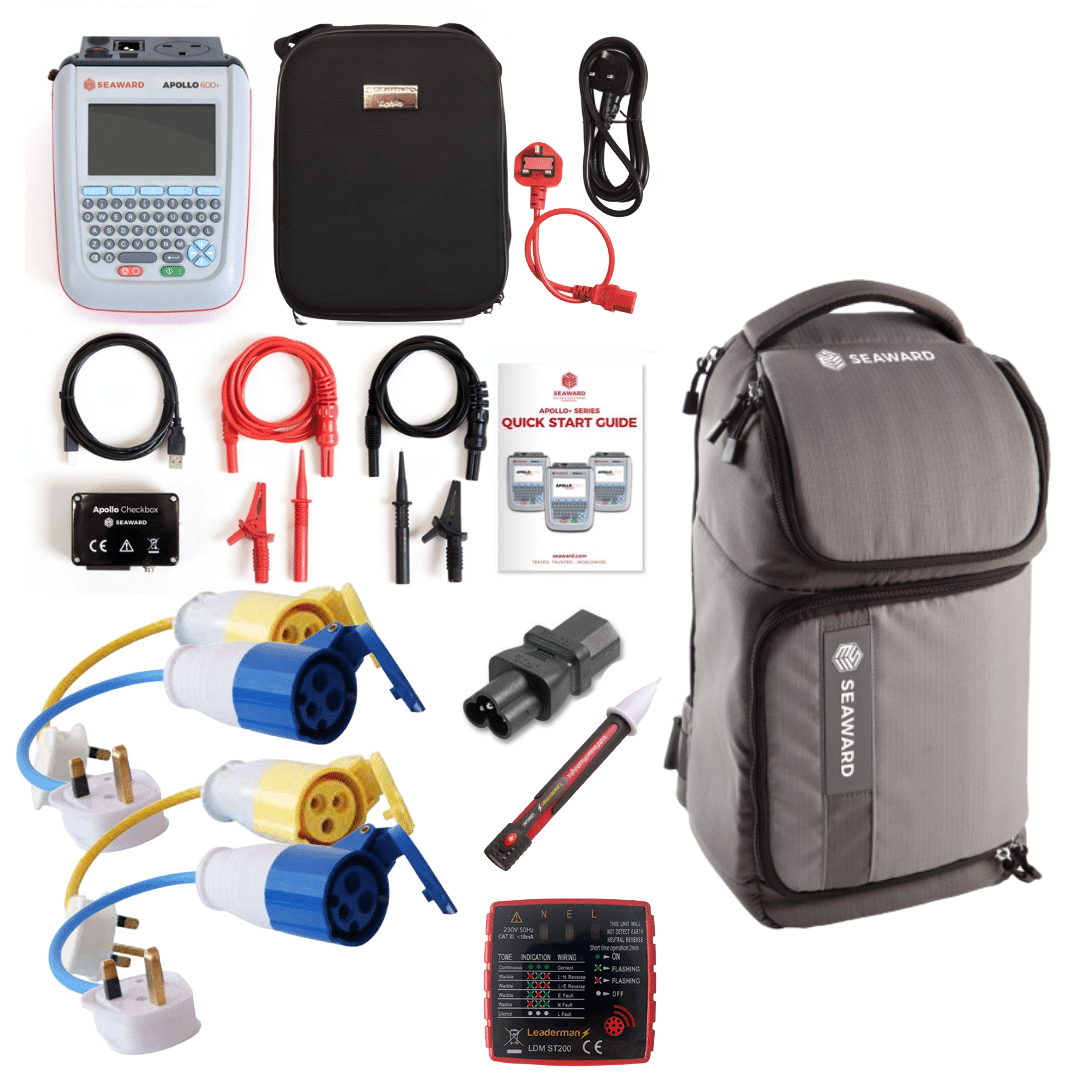

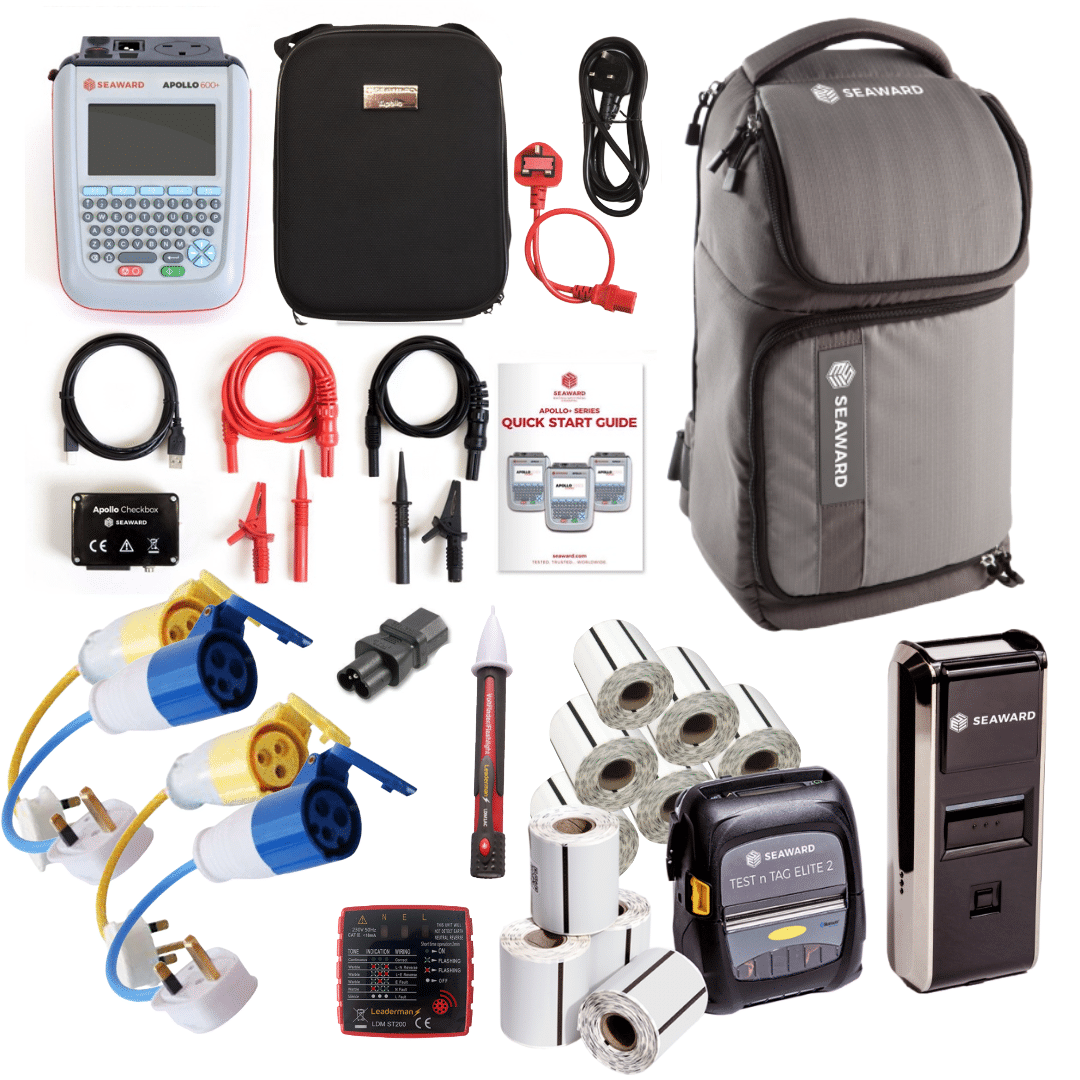

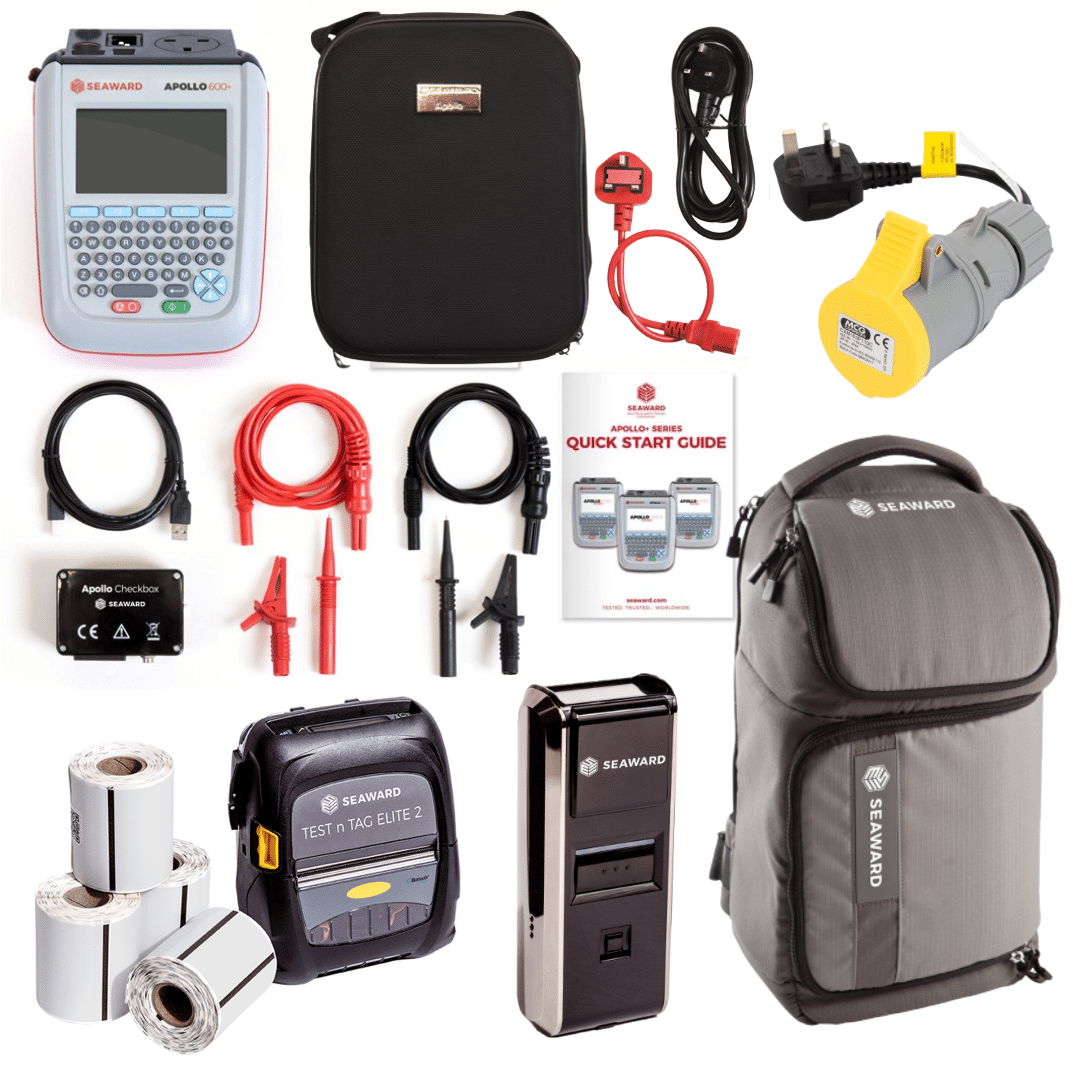

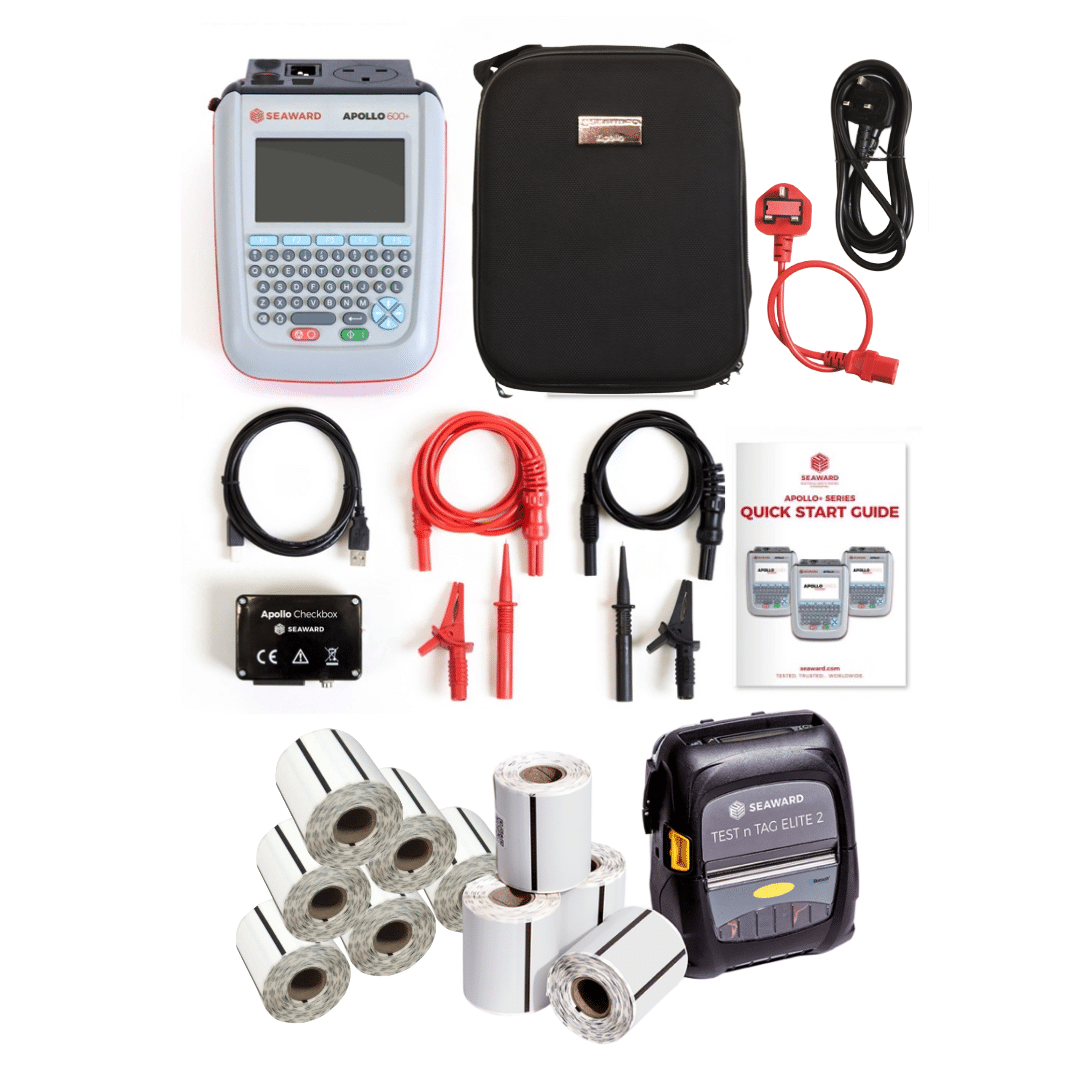

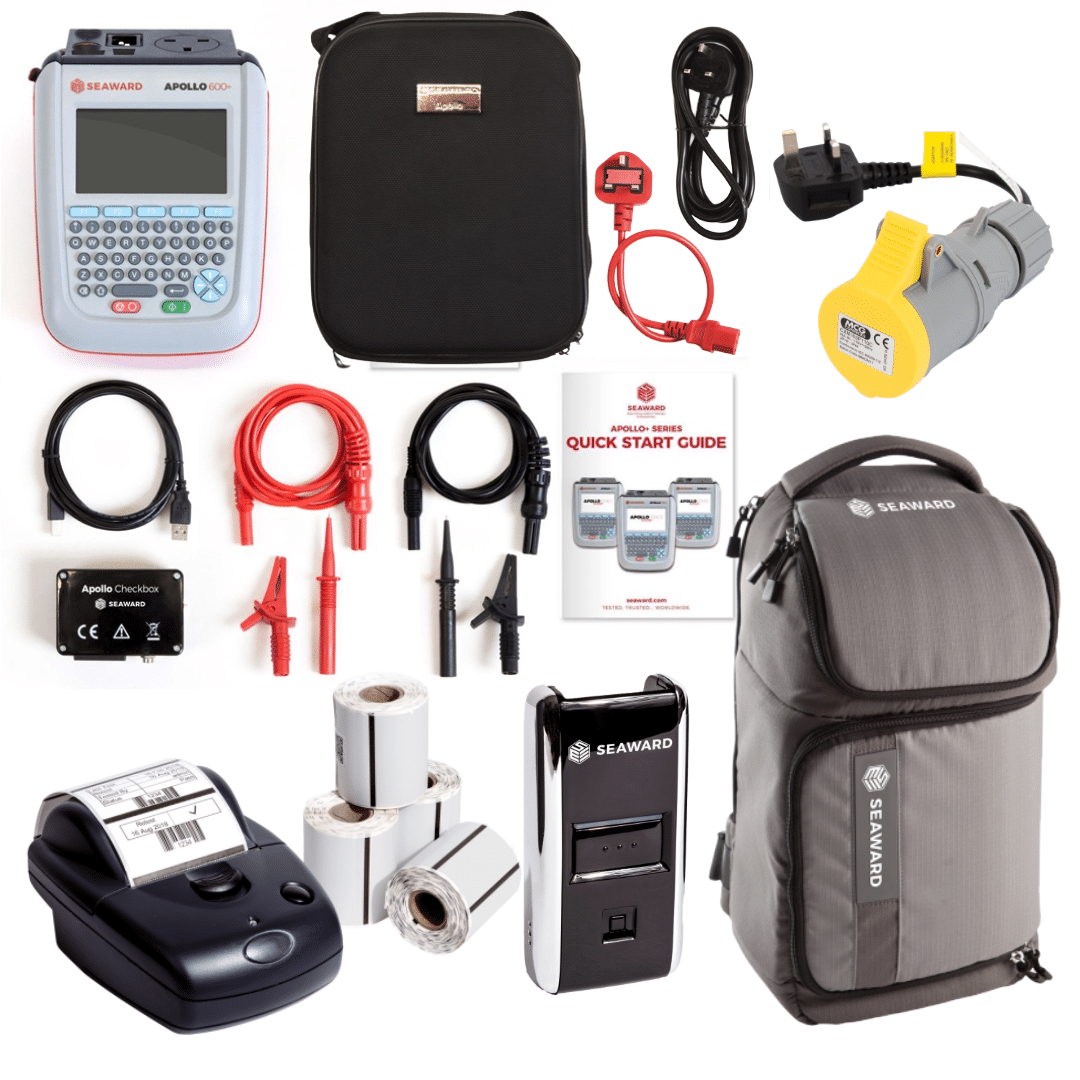

- Seaward Apollo 600 PAT Tester

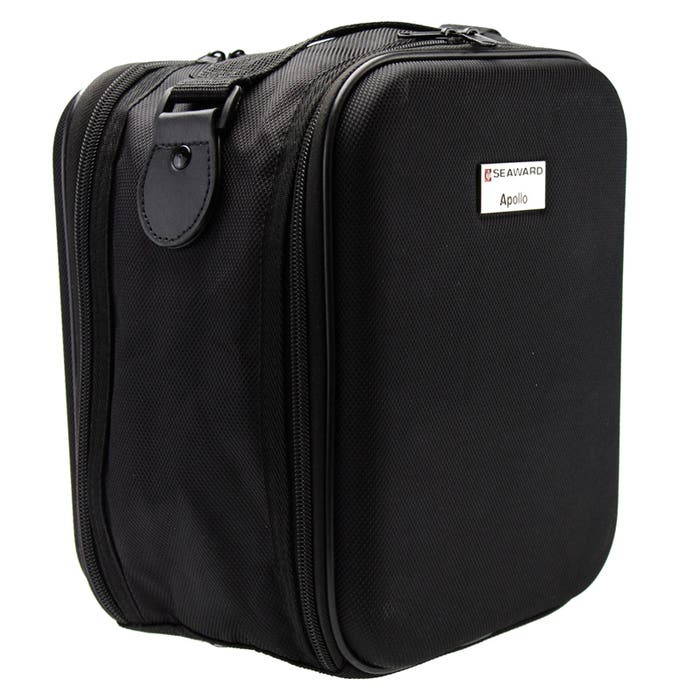

- Professional Carry Case
- Red Test Lead 1.2m with Alligator Clip
- Black Test Lead 1.2m with Alligator Clip
- IEC Extension Lead, 0.5m
- Black Mains Lead
- USB Download Lead
- Apollo Check Box
- UKAS Calibration Certificate
- Quick Start Guide
- TWO YEAR WARRANTY
