Seaward KD1E/22 HV Indicator to 22kV

Seaward

£789.00 / £946.80 incl VAT

⚡ Duplicate neon indicators enclosed within shock-resistant sleeves for enhanced durability and visibility
⚡ Permanently connected earth cable for secure grounding
⚡ Protective hand guard to reduce the risk of electric shock
⚡ Direct access to various types of vertical or horizontal metal-clad switchgear
⚡ Conforms to UK Electricity Council Approval list G9 for trusted safety compliance

Available on back-order

SKU: SEA-113A912 Category: Brand:

Description

Seaward KD1E/22 HV Indicator to 22kV – 113A912

Product Description:

The Seaward KD1E/22 is a highly robust, portable HV AC/DC voltage indicator designed to confirm the presence of voltage on earthed neutral electrical circuits, ranging from 3kV to 22kV. This high-voltage potential indicator is engineered to meet the recommended creepage and safety standards, offering reliability and safety during operation. The KDIE/22 series features high-grade PVC tubing and fully encapsulated resistor chains, ensuring long-lasting durability in various environments. It is ideal for use in industrial applications and fieldwork, where the detection of high voltage is crucial for safety.

Key Features:

  • Duplicate neon indicators enclosed within shock-resistant sleeves to ensure maximum protection and visibility
  • Permanently connected earth cable for reliable grounding
  • Protective hand guard to minimize the risk of electric shock
  • Direct access to nearly all types of vertical or horizontal metal-clad switchgear
  • Conforms to UK Electricity Council Approval list G9 for trusted safety compliance

What’s Included:

  • Seaward KDIE/22 High Voltage Indicator – 113A912
  • Carry Case for easy transportation and storage
  • Calibration Certificate for product assurance and performance accuracy
  • Instructions for proper handling and safety use

Seaward KD1E Comparison Table

Neon IndicatorsDigital Indicators
KD1EKD1E/19KD1E/19SKD1E/22KD1E/33KD1E/15DKD1E/33D
Maximum System Voltage11kV19kV19kV22kV33kV15kV33kV
Maximum Voltage to Earth6.6kV11kV11kV12.5kV19kV8.6kV19kV
Threshold Voltage300V300V300V300V300V
Measuring Range0.00kV-8.6kV0.00kV-19.0kV
Resolution10V100V
SensitivityAC/DCAC/DCAC OnlyAC/DCAC/DCAC/DCAC/DC
Circuit Current
(IEC 61234-2)
2.3mA nominal
@ 6.6kV
0.7mA nominal
@ 11kV
0.9mA nominal
@ 11kV
3.5mA nominal
@ 12.5kV
1.1mA nominal
@ 19kV
0.5mA nominal
@ 8.6kV
1.1mA nominal
@ 19kV
Dielectric Leakage Current
(IEC 61234-2)
7µA nominal
@ 13.8kV
11µA nominal
@ 22.8kV
12µA nominal
@ 22.8kV
12µA nominal
@ 26.4k
17µA nominal
@ 40kV
9µA nominal
@ 18kV
17µA nomina
@ 40kV
Length (mm)330330330665670600600
Diameter (mm)25252525252525
Handle Length (mm)10510510590250235235
Hand Guard Height (mm)10510510590250235235

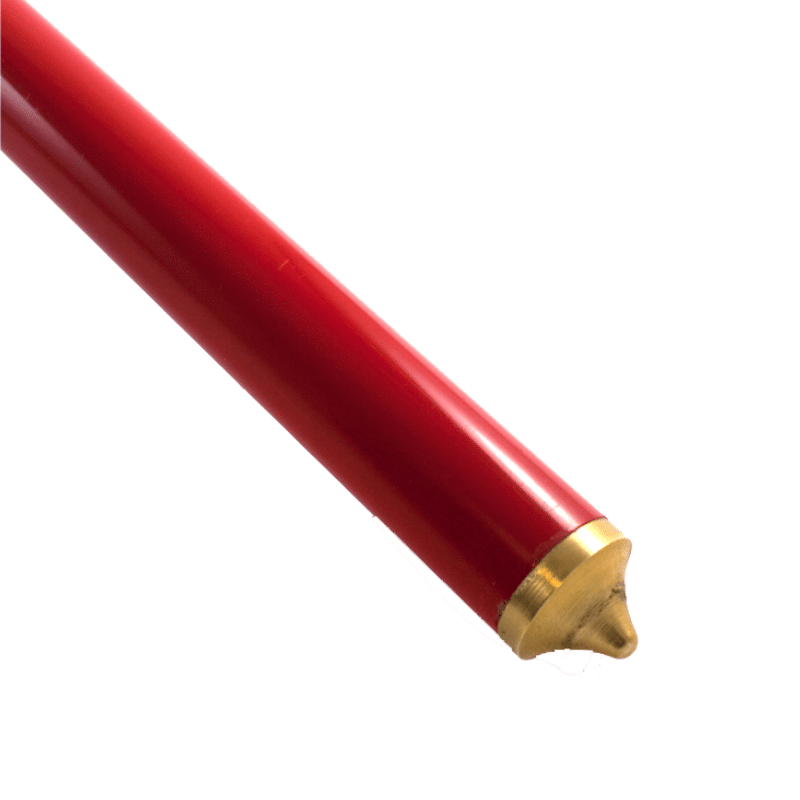

Contact Electrode TypeDomedFlatFlatDomedFlatDomedDomed
  • Maximum System voltage: 22kV
  • Maximum Voltage to earth: 12.5kV
  • Threshold voltage: 300V
  • Measuring Range: N/A
  • Resolution: N/A
  • Sensitivity: AC/DC
  • Circuit current: 3.5mA
  • Nominal: @ 22.kV (IEC 61234-2)
  • Dielectric leakage current: 12uA
  • Nominal: @ 26.4kV (IEC 61234-2)
  • Length (mm): 665
  • Diameter (mm): 25
  • Handle length (mm): 90
  • Hand guard height (mm): 23.5
  • Contact Electrode Type: Domed
