Seaward Solar Mounting Bracket for Solar Survey 200R Irradiance Meter. 396A979.

Seaward

£63.00 / £75.60 incl VAT

⚡ Fits onto the edge of solar panels
⚡ Compatible with Seaward Solar 200R Irradiance Meter
⚡ Allows accurate measurement of sun’s irradiance on a PV installation

Price Pledge
SKU: SEA-SOLAR-BRACKET Categories: , , Tags: , , Brand:

Description

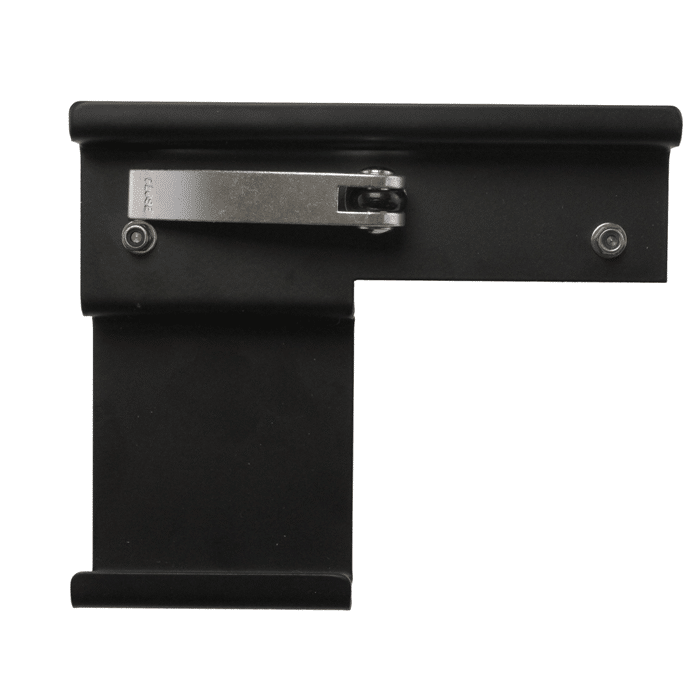

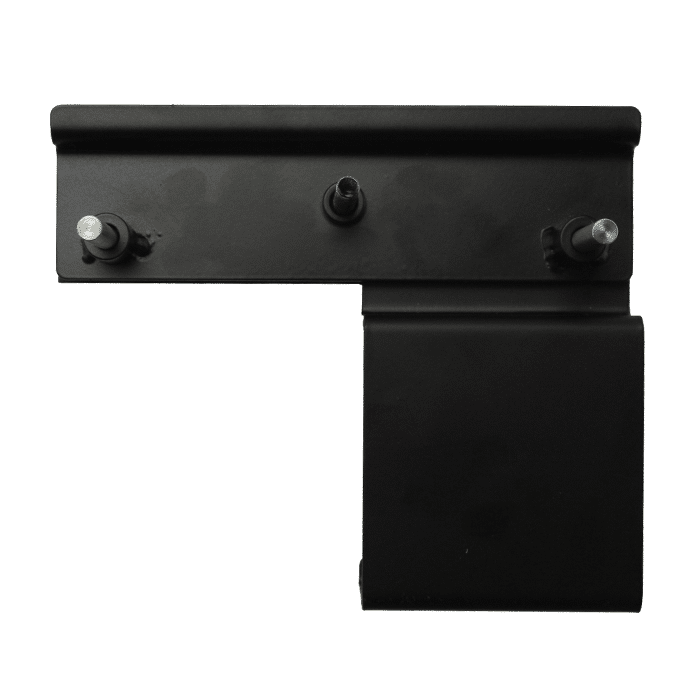

Seaward Solar Survey Mounting Clamp

Description:

  • The Seaward Solar Survey Mounting Clamp allows a Seaward Solar 200R Irradiance Meter to sit for a prolonged period on a solar panel in order to measure the sun’s energy or irradiance at that point. It is rugged, simple to use and is essential to proper maintenance of solar PV installations.
  • Seaward part number: 396A979
Function Range Accuracy
ACW / DCW 0.000kW – 599.9kW A, error*V, reading + V, error *A, reading

Voltage

Function Range Accuracy
DCV 0.00 – 999.9V ± (0.7% + 2dgt)
ACV 0.00 – 999.9V ± (1.0% + 5dgt)
LPF (ACV) 0.00 – 999.9V ± (1% + 5dgt) @ 50Hz – 500Hz
± (5% + 5dgt) @ >60Hz – 400Hz
Resolution (all) 0.01 V

Current

Function Range Accuracy
DCA 0.00A – 99.99A 100.0A – 599.9A ± (1.5% + 0.2 A)
± (1.5% + 5dgt)
ACA 0.10A – 599.9A ± (1.5% + 5dgt) 50Hz – 60 Hz
± (2% + 5dgt) >60Hz – 500 Hz
LPF 0.10A – 599.9A ± (1.5% + 5dgt) 50Hz – 60 Hz
ACA ± (5% + 5dgt) >60Hz – 500 Hz

Peak Hold: Peak Max / Peak Min

Function Range Accuracy
ACV 140.0V 140.0V ± (3.0 % + 15dgt)
ACA 140.0A 850A ± (3.0% + 15dgt)

Frequency

Function Range Accuracy
Frequency 20.00Hz – 9.999kHz ± (0.5% + 3dgt)

Total Harmonic Distortion

Function Range Accuracy
ACA /ACV 0.1 – 99.9% ± (3.0% + 10dgt)
Resolution 0.1%
Harmonic Order Range Accuracy
H01 ~ H12 0.1 – 99.9% ± (5% + 10dgt)
H13 ~ H25 0.1 – 99.9% ± (10% + 10dgt)
Resolution 0.1%

Inrush Current

Function Range Accuracy
ACA 0.00A – 99.99A
100.0A – 599.9A
± (2.5 % + 0.2A)
± (2.5 % + 5dgt)

Power Factor

Range -1.00 – 1.00
Resolution 0.01
Basic Accuracy ± 3°± 1dgt

Resistance, Continuity & Diode

Function Range Accuracy
Resistance 0.0Ω – 999.9Ω
1.000 kΩ -99.99 kΩ
± (1.0% + 5dgt)
± (1.0% + 3dgt)
Continuity 0.0Ω – 999.9Ω ± (1.0% + 5dgt)
Diode 0.40 ~ 0.80V ± 0.1V

Capacitance

Function Range Accuracy
Capacitance 0.000 μF – 4000 μF ± (1.9% + 8dgt)
Resolution 0.001 μF max

General

Safety IEC 61010
Power Requirement Single 9V battery
Battery life ~ 100 hours (alkaline battery)
Size 87 mm (W) x 239 mm (L) x 51 mm (H)
