Socket & See MFT5000 18th Edition Multifunction Tester

Socket & See

£570.00 / £475.00 excl VAT

⚡ PFC / PSC – Result displayed by pressing the PFC / PSC button after a loop test (High Current and No Trip)#

⚡ 30mA Autotest – The unit will conduct all six required tests at a single touch of a button.

⚡ 3 Year Socket & See Warranty

Out of stock

Description

Product Details:

The Socket & See MFT5000 18th Edition Multifunction Tester packs all essential test functions into one, affordable, easy-to-use tester. The MFT5000 is robust and designed for everyday testing. Featuring a colour-coded, high contrast facia and full-colour backlit screen, the unit can be used in a whole range of environments from domestic to industrial.

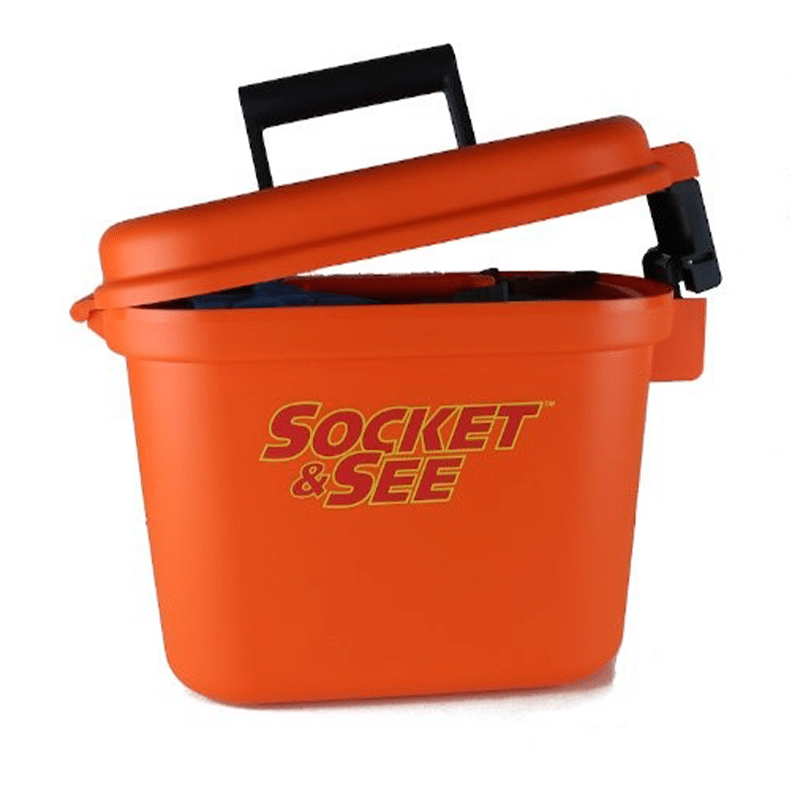

Rugged and reliable, the MFT5000 is designed for everyday use by professional electricians. It is IP54 rated against dust and moisture ingress, making dusty environments or the great British weather, not a problem. The unit is supplied in a hard carry case for easy and secure storage. The removable internal tray is perfect for storing the MFT5000’s accessories.

Socket & See MFT5000 test sequences:

Insulation Testing
Selectable ranges 250V / 500V and 1000V. The current and voltage are measured and the external resistance is calculated and displayed.

Loop Testing
High current 2 wire test mode enables the user to test the true impedance of both the Line-Neutral Loop and the Line-Earth loop and therefore to establish both the PSC (prospective short circuit current) and the PFC (prospective fault current) for the installation

No trip 3 wire test mode generates a current that is too low to trip an RCD on an otherwise healthy circuit.  The No Trip test is a 3-wire test that also checks the Live, Neutral/Earth conductors are correctly connected before running the loop test.

PFC / PSC
The result is displayed by pressing the PFC / PSC button after a loop test (High Current and No Trip)

RCD Testing
Individually selectable 30mA / 100mA / 300mA and 500mA (Type AC/A) and 100mA / 300mA (Type ACS / AS).

30mA Autotest – The unit will conduct all six required tests at a single touch of a button. Then when the RCD under test “trips” reset the RCD and continue to do so until the test procedure is complete. Clear PASS / FAIL indication provided on screen.

Ramp Test – Gradually increases the fault current and identifies the level of additional leakage at which the RCD trips. Useful for diagnostic testing of circuits where nuisance tripping is a problem and helps to identify the difference between an over-sensitive RCD and excessive leakage from poor insulation, or equipment with high leakage.

Phase Rotation
During phase rotation measurement the amplitudes and phase angles of the three inputs, L1 L2 L3 are checked against limits, allowing for mild unbalance conditions. The indication 1-2-3 is displayed for normal rotation (L2 lags L1) and 3-2-1 for reverse rotation (L2 leads L1).

Display of Phase rotation is Automatic when all three test leads are connected to the 3 phase supply.

The MFT5000 will display .1 .2 .3 or .3 .2 .1 depending on the direction of phase rotation.

Socket Testing
Perform a quick and easy check of a socket’s wiring condition.

Polarity Test Pad
Test for and identify rare reverse polarity (Live ‘Phase’ to earth/neutral and earth/neutral to Live ‘Phase’. A potentially dangerous condition that conventional loop testers may not highlight.

Continuity Test
Establish the resistance of the circuit under test. Lead null function for fast and accurate measurement.

The Socket & See MFT5000 is also available with a custom splash screen, so you can truly make it your own. Add your company logo, contact details, name, and even an asset ID to help asset management within your organization. No need for unsightly and potentially damaging engraving or adhesive labels.

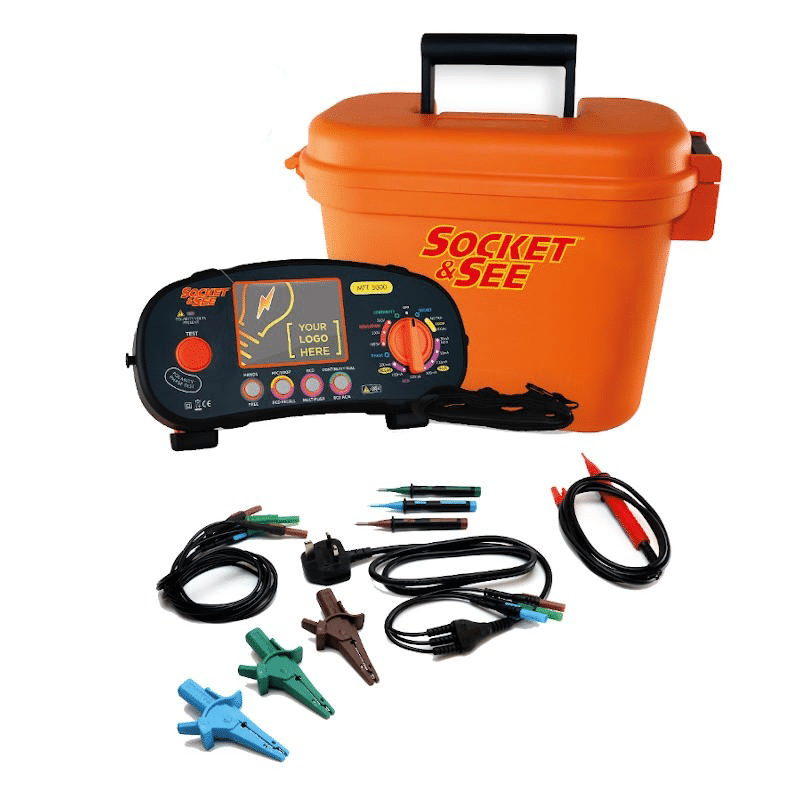

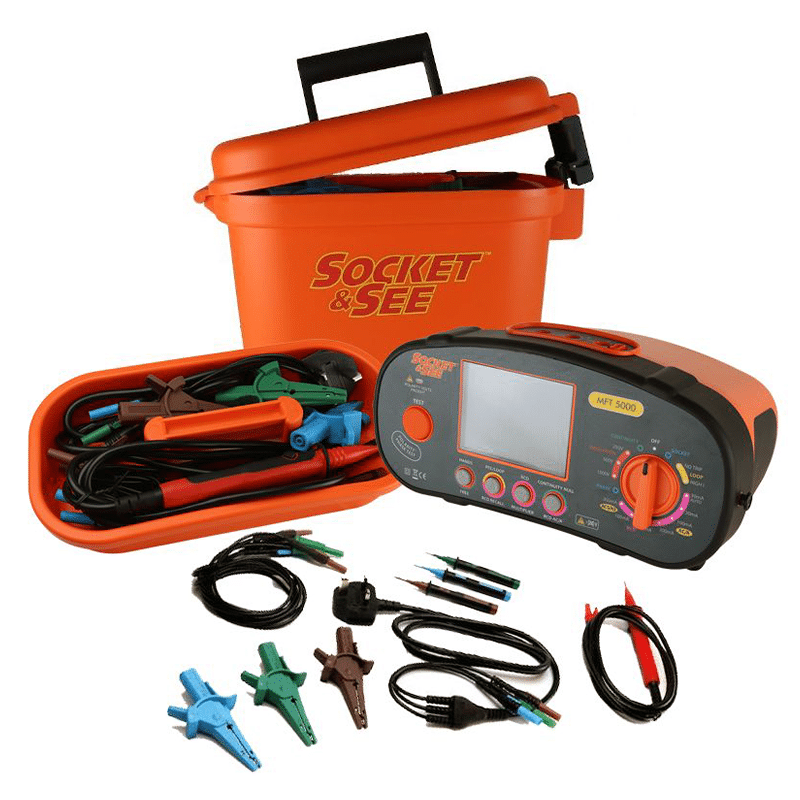

  • Socket & See MFT5000 multifunction tester

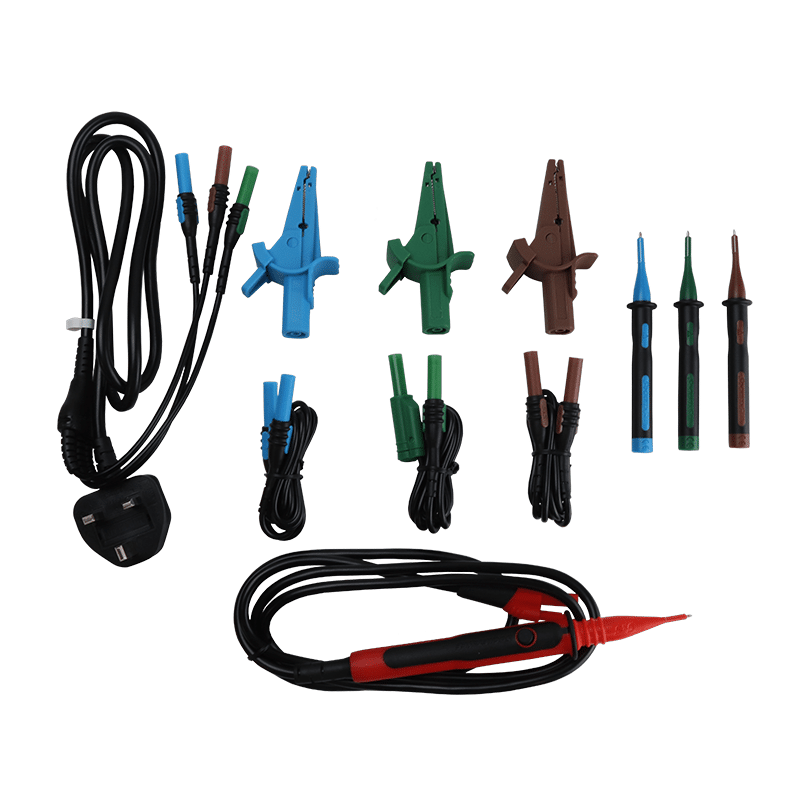

  • 3 wire test lead set including croc clips and probes
  • Pro lead: 3 x 4mm to 13A plug
  • Remote switched probe
  • Shoulder strap
  • Hard carry case
  • Instruction manual
  • Certificate of Conformity
