Description

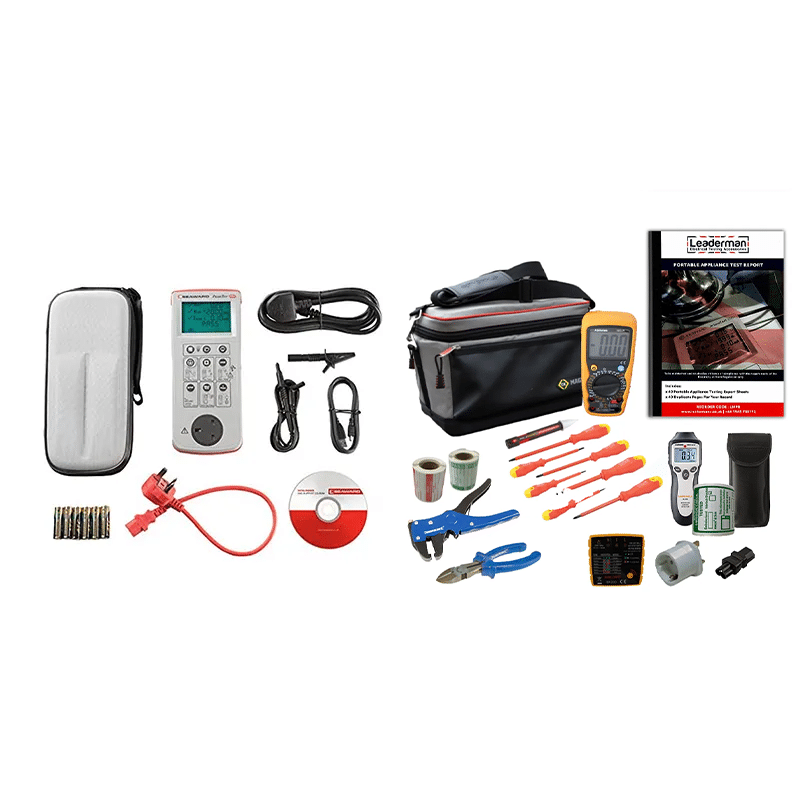

Testermans MagmaPAT Test Kit & Seaward Primetest 100 PAT Tester

Product Description:

Introducing the ultimate PAT Testing Kit, meticulously crafted to streamline your electrical safety inspection and testing process. This comprehensive kit centers around the rugged and versatile CK Magma MA2641 Tool & Meter Case, offering organized and secure storage for all your essential tools and instruments.

CK Magma MA2641 Test Equipment Tool and Meter Case:

• Efficient Organization: This all-in-one tool kit and test meter storage solution features 27 pockets, adjustable padded compartments, and a convenient toolkit storage compartment. With specialized pockets and holders, you’ll find a designated spot for your test equipment, accessories, and tools, making it a breeze to locate what you need.
• Quick Access: The easy-opening lid and two retaining straps provide improved access, so you can get to your tools without delay. Say goodbye to time wasted searching through your toolkit.
• Security and Durability: Your valuable equipment is safeguarded with a heavy-duty lockable zip system and a hard protective divider between tools and test equipment. It’s built to withstand the demands of your work environment.
• On-the-Go Comfort: Whether you’re in the field or the workshop, the carrying handle and padded shoulder strap ensure maximum comfort during transport. The integrated trolley strap allows easy transport with any Magma wheeled case.
• Weatherproof Base: The case’s 100% waterproof polymer base enhances durability, so you can trust it in any situation.

The Full Kit: This PAT Testing Kit is not just about the case; it’s a comprehensive set of essential tools and instruments designed to ensure electrical safety. Here’s what you’ll find inside:

• Leaderman LDM-MLD Microwave Leakage Tester Detector: A crucial component for assessing the safety of microwave ovens, this advanced tester quickly and accurately detects microwave radiation leakage. With features like an audible alarm, LED display, and a built-in flashlight, it’s a must-have for PAT testers and safety inspectors.
• Microwave Test Labels (Roll Of 100)
• Automatic Wire Strippers: These handy wire strippers simplify the process of stripping wires, allowing you to work with wires ranging from 0.2 to 0.6mm². Their self-adjusting mechanism and wire-cutting blade make your work more efficient.
• 7 Piece Insulated Soft Grip Screwdriver Set: This set includes a range of insulated screwdrivers with hardened and tempered tips, suitable for various tasks. Whether you’re tightening screws or performing other electrical work, these screwdrivers are the right tools for the job.
• Multi-Function Side Cutting Pliers: Induction-hardened chrome vanadium steel. Moulded handles with slip guards. Multipurpose tool with wide-grip jaws for crimping and cable stripping.
• Leaderman LDM1AC Non-Contact Voltage Detector and Flashlight: This voltage detector is a reliable tool for locating live voltages in outlets, cords, or terminal strips. It features a flashing LED light indicator, audible beeper, and a built-in flashlight for added convenience.
• Leaderman LDM-PR PAT Test Report Pad: Compliant with the latest IET 5th Edition requirements, this report pad is perfect for keeping a log of your PAT testing results, providing 40 Portable Appliance Testing Report Sheets and 40 Duplicate NCR Copy sheets. It’s an essential tool for maintaining records and ensuring compliance.
• IEC C13 to C6 Clover Lead PAT Testing Adaptor: This adapter allows you to test laptop mains leads and similar cables easily. It’s designed to fit any PAT test machine with an IEC connection and is a crucial accessory for your PAT testing kit.
• Leaderman LDM-SK200 Socket Tester: The LDM-SK200 ensures safe electrical wiring with clear LED indicators for various wiring conditions, including Correct, missing Earth, Live/Earth Reverse, Live/Neutral Reverse, and missing Neutral. Its modern and ergonomic design makes it user-friendly and efficient.
• PAT Testing Pass Labels x2 Rolls (Total 500 Labels): Testermans’ PAT Pass Label Rolls are an essential tool for maintaining a safe and compliant environment. By clearly labeling appliances that have passed the testing process, these labels provide visual reassurance to users, ensuring peace of mind and facilitating easy identification of compliant equipment.
• Leaderman PAT Testing Fail Labels (Roll of 250): Testermans’ PAT Testing Fail Label Rolls are a crucial tool for maintaining safety standards and compliance. By clearly marking appliances that have failed testing, these labels provide visual cues to users and maintenance personnel, ensuring prompt action and the necessary repairs or removal of faulty equipment.
• PRO-SCHUKO: A BS1363/3 approved Schuko socket to UK plug with integral 13A fuse and holder.
• Alphatek TEK471 Digital Multimeter (AC DC 20A 1000V): Ideal for Continuity Testing Use the Alphatek TEK471 High Performance Digital Temperature Multimeter to check earth continuity and clearly identify plastic or metal contructed equipment– the pinnacle of precision and versatility for professionals in the field of electronics, electrical engineering, and temperature measurement. This meticulously crafted instrument combines cutting-edge technology with a user-friendly design to empower you with accurate readings and unprecedented convenience.

Conclusion:

This PAT Testing Kit is your all-encompassing solution for electrical safety inspections, combining the CK Magma MA2641 Test Equipment Tool and Meter Case with essential tools and instruments designed to enhance your PAT testing capabilities. Safety and efficiency are at the core of this kit, making it the ideal companion for professionals in the field of electrical testing and inspection.

• • Seaward Primetest 250+ Downloadable PAT Tester – 5th Edition

    Product Description:

    The Primetest 250 Plus is a battery powered and downloadable PAT tester with testing capabilities that fully satisfied the latest edition of the IEE Code of Practice. With a comprehensive range of electrical tests, an internal memory capable of storing 999 results and full Seaward Test n Tag Printer compatibility this PAT tester is efficient, powerful and highly versatile.

    Updated to be fully compliant with the 5th edition of the IET Code of Practice, the PrimeTest 250 Plus includes functions such as:

    • Selectable Pass/Fail values for earth continuity (0.1, 0.2, 0.3Ω)
    • Long lead test
    • New test for Class 1 equipment with no exposed parts
    • Test sequence for Class 2 FE equipment
    • Pass/Fail limit of 5mA for all Earth Leakage tests in line with 5th edition

    The PrimeTest 250 Plus PAT Tester updated for the 5th edition of the IET Code of Practice is compact, battery powered and handheld. It features an impressive datalogging facility which allows users to store & download up to 999 results in CSV format or in the supplied datalogging software. Alternatively the data can also be downloaded into Seaward’s PATGuard 3 software for creating professional PAT reports and certificates. Test results are saved by the press of a button and are downloaded onto a PC using a standard USB lead. Notably all test results are time and date stamped for traceability purposes.

    Not only does the Seaward Primetest 250 perform Earth Continuity and Insulation tests, it also incorporates a variety of other useful electrical test functions. Including mains powered tests such as Earth Leakage, Protective Conductive Current and RCD Trip Time testing using the supplied mains lead. This means that the tester complies fully to any testing requirements detailed within the IEE Code of Practice while remaining small and portable.

    The Primetest 250+ is furthermore one of the very few PAT testers on the market that can run mains operated tests on 3-Phase appliances using optional Seaward TPA 3-Phase Adaptors. It can be used in conjunction with the Seaward Test n Tag Pro printer via a serial cable and prints a 52 x 25mm PAT label at the end of the test sequence thus speeding up your testing procedure. The Seaward Primetest 250+ requires no set up and is ready to use straight out of the box.

    Please note that the tester will not provide a facility to enter appliance information into the tester against the PAT results. This would need to be done after downloading within the software package where the PAT results are downloaded into.

    Comprehensive Range of Electrical Tests

    Capable of performing all testing procedures as required by the IET Code of Practice, this PAT tester gives quick, easy access to all testing functions via dedicated testing buttons on the front of the tester.

    The PrimeTest 250 Plus can test it all – use it to test:

    • Low current earth continuity
    • Insulation resistance at 250/500V
    • IEC leads
    • Protective conductor current
    • Touch current tests
    • 3 phase leakage current (requires 3 phase adaptor)
    • Alternative leakage
    • RCD (30mA and 150mA) and power socket tests
    • Long Lead
    • Test for Class 1 equipment with no exposed parts and a Class 2 FE test sequence to coincide with the new equipment class included in the 5th edition.

    You can use the PT250+ to test both class I and class II appliances (including IT equipment), IEC leads and extension leads and – via the use of adaptors (sold separately) – this tester is also suitable for testing 110V and 415V (3 phase) equipment.

    Manage Your Testing Records with Fully Downloadable Memory Storage

    The PrimeTest 250 Plus can store up to 999 individual appliance testing records in its internal memory. When you’ve tested something, simply press the single save key and the record will be stored, time/date stamped ready for further use.

    When you’re done testing for the day, connect your PrimeTest 250+ up to your PC using a USB cable and download the records directly onto your computer.

    The PrimeTest 250+ is one of the few downloadable PAT testers which includes its download utility as standard – records are downloaded into standard CSV format, compatible with leading spreadsheet programs such as Microsoft Excel.

    For those who require professional reports and certificates, you can also opt to purchase Seaward’s PATGuard Elite 3 software which gives you a comprehensive database of PAT records, allows you to schedule inspections and tests and create reports etc.

    Seamless Plug & Print with the Optional Test n Tag Pro Serial Printer

    Use the PrimeTest 250 Plus with the Test n Tag Pro Serial Printer (sold separately and available in kit versions of the PT250+) to create professional, low cost inspection and testing labels as you’re testing.

    The Test n Tag Pro is designed to seamlessly work with the PT250+’s memory storage capabilities; just connect up the printer when testing and hit the print button when you’re ready to print out your label.

    Every label roll for the Test n Tag Pro has over 400 labels, ensuring you can test a large amount of appliances before replacing at a later date.

    Seaward PrimeTest 250+ PAT Tester Key Features

    • Downloadable PAT tester with internal 999 appliance record memory
    • Extremely easy to use – quick access buttons for easy test activation
    • Plug and print – simply insert Seaward’s printer (sold separately) for quick label printing
    • Date stamped results for full traceability
    • Single key save and downloading
    • Stores results in CSV format – ports directly into programs similar to Excel or Seaward’s PATGuard software
    • Low current earth continuity test to ensure accurate measurements
    • Insulation resistance test at 250 and 500V
    • IEC lead testing
    • Protective conductor current test
    • 3 phase leakage current test (requires adapter)
    • Alternative leakage current test
    • RCD test at 30mA and 150mA
    • Power socket test

    What’s Included?

    The standard version of the Seaward PrimeTest 250+ comes with:

    • Seaward Primetest 250+
    • 0.5m Extension Adaptor
    • Earth Lead with Probe and Clip
    • Mains Lead
    • 6 x AA Batteries
    • USB Download Lead
    • Carry Case
    • Operating Instructions

    Expand your Reporting Capabilities with Seaward PATGuard 3 Software

    Note: PATGuard 3 is an optional purchase and is not required to use the PT250+’s download capabilities.

    Although the PT250+ includes a download utility so you can download for free into a CSV file compatible with Microsoft Excel, you can vastly increase the capabilities of your PT250+ by adding Seaward’s PATGuard Elite 3 software to your purchase.

    Available in some of the PT250+ or for purchase separately, PATGuard 3 is a yearly-licensed software package* which gives you a number of benefits, including:

    • Professional user interface gives you quick, seamless access to your PAT records
    • Tag photos to sites, locations, asset IDs and testing results
    • Compatible with a wide variety of Seaward PAT testers, including the PT250+ and Apollo series
    • Electrical risk assessment tool quickly determines risk-based retest periods for electrical appliances
    • Universal risk assessment tool for any workplace hazards
    • Create an extensive range of editable detailed and summary reports
    • Create test and inspection reports for fire detection/fire alarm systems and emergency lighting
    • Auto-scheduler function notifies the user when assets are ready for retesting
    • Generate professional invoices
    • Create customisable exports of testing records in CSV format

    Compatible with Seaward’s PATMobile App

    The Seaward PATMobile App (available for free on GooglePlay**) is a manual data entry app designed for use with Seaward’s range of PrimeTest PAT Testers. It can be used to keep records, manage test data, and create and share CSV and PDF reports on-site.

    The Seaward PATMobile App is an effective and easy-to-use mobile app** with an eclectic array of features, including:

    • Recording and managing PAT results
    • A powerful search and filter for accessing required data
    • A dashboard for managing assets: indicates when appliances are out of date
    • Integrated calculators for risk-assessments and resistance
    • Auto-incrementation of asset IDs
    • User customisation: the user can upload a signature and/or company logo to be included in reports
    • Photos taken using the smartphone’s/ tablet’s camera can be included in records and reports
    • Scan 1D and 2D barcodes using the smartphone’s/ tablet’s camera
    • Scan Seaward’s Apollo QR codes using the smartphone’s/ tablet’s camera
    • Create PDF reports
    • Create CSV reports
    • Export CSV and PDF reports via email

    In addition to the above features and functions, the Seaward PATMobile App can be used to print labels wirelessly via Bluetooth when used in conjunction with Seaward’s Test n Tag Pro Printer and compatible labels (sold separately).

    Accessing the required features, functions or records is quick and easy as a result of the Seaward PATMobile App’s fast and intuitive interface. Please see the video below for an overview of the Seaward PATMobile App’s features and an introduction to using this data management app.

    The Seaward PATMobile App is a powerful, simple and comprehensive manual data entry app.

    ** Please note that, currently, the Seaward PATMobile App is ONLY available for Android smartphones/ tablets with an operating system of Android 5.0 and above.
