Testo 417 Vane Anemometer (Choice Of Kits Available)

Testo

£322.00£479.00

⚡ 100mm vane measures air flow speed from 0.3m/s to 20m/s
⚡ NTC sensor measures air temperature between 0 and 50℃
⚡ Automatic volume flow calculation, data hold, min/max and mean calculation
Price Pledge

Description

Testo 417 Vane Anemometer

Product Description:

With a sizeable 100mm vane, the Testo 417 Vane Anemometer is the perfect instrument for measuring the performance of heating, ventilation and air-conditioning thanks to its ability to measure air flow speed, volume flow and air temperature. The vane measures wind speeds from 0.3m/s to 20m/s (thereby calculating volume flow from 0 to 99999m3/h) whilst the NTC air temperature sensor range goes from 0 to +50℃ and comes equipped with a 100mm vane to ensure results are quickly calculated

The Testo 417 automatically detects air-flow direction and shows results clearly on its backlit LCD screen. Both volume flow and flow speed are shown once the user has input the duct area and there is also the option to toggle between air flow speed and air temperature. The device has advanced measurement features mean and allows for timed point average calculation.

Overall, the Testo 417’s high degree of accuracy and advanced measurement features make it perfect for HVAC applications whilst the user also benefits from the screen’s clarity and a 2-year warranty.

To further enhance your measurement capabilities for air flow speed and temperature, you may wish to consider the three advanced kits that use the Testo 417 as their base device. The various accessories improve the Testo 417’s accuracy and range and details are available in the grid below.

Testo Part number 417: 0563 0417

Testo 417 Kit 1

Includes two measuring funnels for plate outlet and ventilation grilles. The funnels are easily attachable and allow for a wider range of outlet sizes and formats to be used.

Testo Part number: 0563 1417

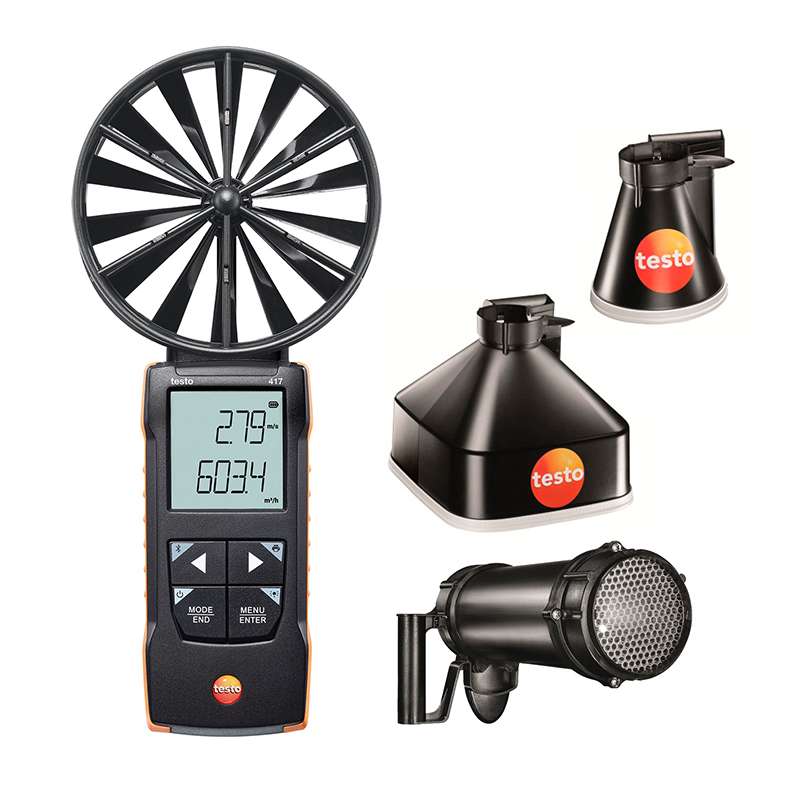

Testo 417 Kit 2

Includes two measuring funnels for plate outlet and ventilation grilles. The funnels are easily attachable and allow for a wider range of outlet sizes and formats to be used. The kit also includes a flow straightener allowing users to achieve precise results even at swirl diffusers.

Testo part number: 0563 2417

Testo 417 F-Reg Kit

Includes two measuring funnels for plate outlet and ventilation grilles. The funnels are easily attachable and allow for a wider range of outlet sizes and formats to be used. The Testo 417 F-Reg Kit also comes with a calibration certificate, ensuring the Anemometer has been calibrated to national standards.

Part number: 300563 1417

Instrument only (0563 0417) Kit 1 (0563 1417) Kit 2 (0563 2417) F-Reg Kit (300563 1417)
Testo 417 Vane Anemometer (0563 0417)
Funnel Set (0563 4170)
Flow Straightener (0554 4172)
Carry Bag
3 x AA Batteries
Testo Calibration Protocol
UKAS Calibration Certificate

Key Features:

  • Calculates direction of flow
  • Compatible with the Testo Smart App
  • large 100mm Vane
  • Temperature measurements
  • Flow and volume flow measurements
  • Multi-point and timed mean calculation
  • Flow can be measured in m/s and fpm
  • Volume can be mastered in m3h, I/s and cfm

Testo Smart App

The Testo Smart App supports the user being able to configure the measuring instrument. Users are able to view graphical measure value curve. Using a smart device with the downloaded app, users are able to turn their smart device into a second screen.

The Testo Smart App allows for operation, measurement and documentation of all compatible Bluetooth enabled Testo measuring instruments. With its intuitive measurement menus, quick configuration, the Testo Smart App is simple to use and allows for uncomplicated documentation to be completed. Measurements can be found quickly and easily with data shown in graphical and tabular curve display.

The App allows for data to be stored alongside customer information. Reports can be easily generated, including photos as PDF/CSV files and emailed directly from the smart device to colleagues or customers.

Data can be transferred to a PC using Testo’s PC software DataControl. The App benefits from continuous updates and extensions

More Information
Specification Temperature NYC

  • Measuring Range: 0 to 50ºC
  • Accuracy: ±0.5°C
  • Resolution: 0.1ºC

Velocity- Vane

  • Measuring Range: 0.3 to 20 m/s
  • Accuracy: ±(0.1 m/s + 1.5% of mv)
  • Resolution: 0.01 m/s

Volume Flow

  • Measuring Range: 0 to +99999 m³/h
  • Measuring Range: 0 to +440 m³/h (Testo 417 in combination with funnel set (0563 4170))
  • Measuring Range: 0.1 to +200 m³/h , preferred 0,1 to 100 m³/h (Testo 417 in combination with funnel & flow straightener (0554 4172))
  • Resolution: 0.1 m³/h (0 to +100 )/1 m³/h (Remaining Range)

General Technical Data

  • Weight 243g
  • Dimensions: 236 x 108 x45mm
  • Operating temperature -20ºC to 50ºC
  • Storage Temperature -20 to 50ºC
  • Housing material: ABS + PC/TPE
  • Protection class: Measuring instrument: IP40 Probe IP20
  • Battery Life: -20ºC to 50ºC
