Testo 755-1 Current and Voltage Tester

Testo

£113.00 / £135.60 incl VAT

⚡ Easy, reliable operation through automatic measurement parameter detection
⚡ DIN EN 61243-3:2014 and DIN EN 61010‑1:2011 certified
⚡ Exchangeable measuring tips
⚡ Suitable for almost all electrical measuring tasks

Only 1 left in stock (can be backordered)

Price Pledge

Add Soft Carry Case?

Some Fork Testers don’t come with a carry case that’s why we’ve added the perfect cases to go with you brand new Fork Tester, simply click to select.
(PLEASE CHECK THE PRODUCT YOU’RE BUYING IS NOT ALREADY SUPPLIED WITH A CASE)

None Leaderman LDM-C16 Protective Case For Voltage Testers +£15.00 Leaderman LDM-C1 Carry Case +£17.60 Fluke C150 Soft Carrying Case for Two Pole Voltage and Continuity Testers +£35.00 Martindale TC52 Soft Carry Case for Voltage Indicators +£16.50

Calibration Certificate

Add Calibration on your Fork Tester.

Calibration Certificate

Add Calibration on your Clamp Meter.

Description

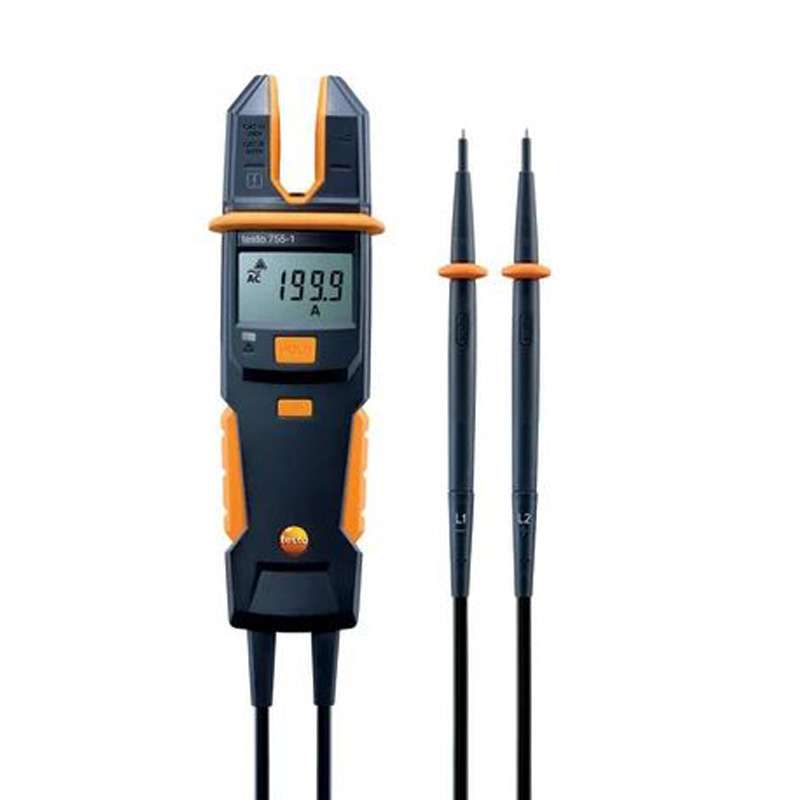

Testo 755-1 Current and Voltage Tester

Product Details:

The Testo 755-1 Current and Voltage Tester is a unique product that conforms to the latest European standard for voltage meters as well as having the capacity to measure current. The voltage measurement range goes from 6 to 600V AC/DC whilst current can be measured between 0.1 and 200A AC. Further capabilities include resistance measurement between 1Ω and 100kΩ as well as continuity testing up to 50Ω.

Not only does the Testo 755-1 possess impressive measurement features, it is also very user-friendly. Firstly, correct settings are automatically selected before use which makes tests safer and more accurate. Furthermore, the open jaw current tester turns on automatically when it detects a voltage over 6V so there is no need to switch the device on and a built-in torch helps the user find his/her way when working in poorly lit environments. The measuring tips can be easily maintained and exchanged whilst a lead holder is integrated into the main body of the device for further ease of use.

Results are displayed on the LCD screen and the Testo 755-1 comes supplied with batteries and measuring tips. In combination with the automatic voltage detection and automatic setting selection, this means that the Testo 755-1 is ready to use without even having to turn it on. Overall, the Testo 755-1 neatly combines voltage, current and resistance measurement in one useful instrument.

Testo part number: 0590 7551

Key Features:

  • Voltage range: 6 to 600V AC/DC
  • Current range: 0.1 to 200A AC
  • Resistance range: 1 to 100k
  • Continuity testing: <50
  • Open jaw switches on when detecting voltage over 6V
  • Automatically detects measuring parameters and settings
  • In-built torch for work in poor light
  • Exchangeable measuring tips
  • Lead holder integrated into main device body
  • Clear LCD screen
  • Conforms to latest standard (EN61243-3:2010)
  • 2-year warranty

What’s In The Box?

  • Testo 755-1 Current and Voltage Tester
  • Testo 755-1 Current and Voltage Tester instructions
  • Voltage measuring range: 6 to 600V AC/DC
  • Current measuring range: 0 to 200A AC
  • Resistance measuring range: 1Ω to 100kΩ
  • Continuity testing: <50Ω
  • Display (counts): 4000
  • Measuring point illumination: Yes
  • Measurement category: Cat IV 600V, Cat III 1000V
  • Protection class: IP64
  • Operating temperature: -10 to +50℃
  • Storage temperature: -10 to +60℃
  • Dimensions: 199 x 62 x 40mm (L x W x H)
  • Weight: 306g
  • Warranty: 2 years
  • Authorisations: TUV, CSA, CE
  • Standards: EN 61243-3:2010, EN 61010-1

What’s Included:

  • Fluke 325 Clamp Meter
  • Fluke C1600 Tool & Meter Case
  • Red/Black Test Lead Set
  • Soft Carrying Case
  • User Manual
  • Temperature Probe
  • Batteries Installed
