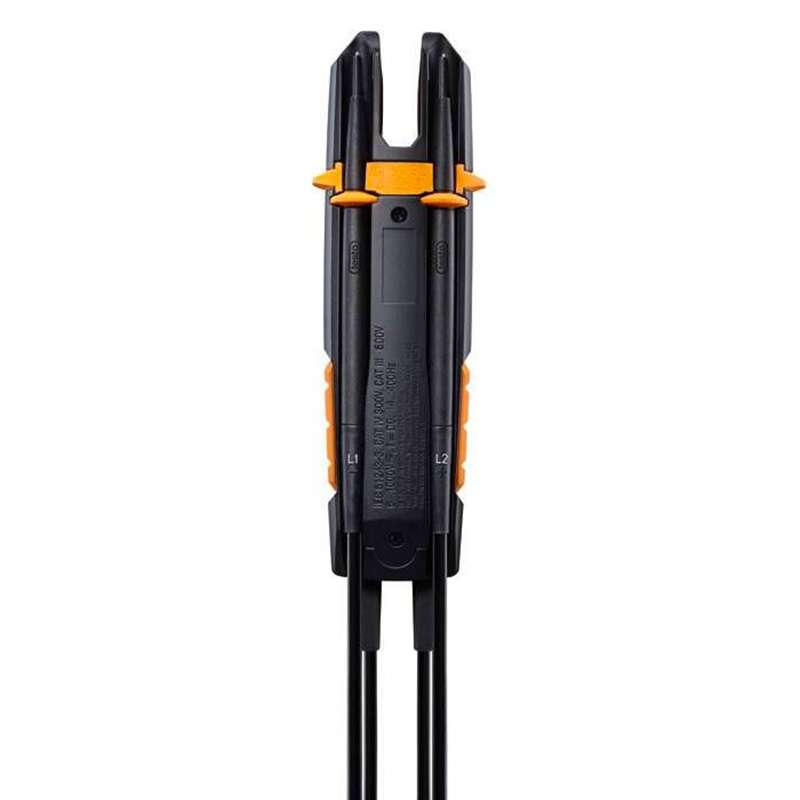

Testo 755-2 – Current voltage tester

Testo

£135.00 / £162.00 incl VAT

⚡ Multifunction Electrical tester for current, voltage, continuity and more
⚡ Advanced functions include single pole phase testing and rotating magnetic field testing
⚡ Automatic switch-on when voltage is detected and automatic parameter selection

Only 1 left in stock (can be backordered)

Price Pledge

Add Soft Carry Case?

Some Fork Testers don’t come with a carry case that’s why we’ve added the perfect cases to go with you brand new Fork Tester, simply click to select.
(PLEASE CHECK THE PRODUCT YOU’RE BUYING IS NOT ALREADY SUPPLIED WITH A CASE)

None Leaderman LDM-C16 Protective Case For Voltage Testers +£15.00 Leaderman LDM-C1 Carry Case +£17.60 Fluke C150 Soft Carrying Case for Two Pole Voltage and Continuity Testers +£35.00 Martindale TC52 Soft Carry Case for Voltage Indicators +£16.50

Calibration Certificate

Add Calibration on your Fork Tester.

Description

Testo 755-2 – Current Voltage Tester

Product Details:

The Testo 755-2 Current and Voltage Tester stands as a cutting-edge tool, combining the functionality of an advanced voltage tester (ranging from 6 to 1000V AC/DC) with the capability to measure current (0.1 to 200A AC) and resistance (1Ω to 100kΩ). Additionally, it excels in continuity testing (<50Ω) and offers advanced features such as rotating magnetic field testing and single-pole phase testing, both within the range of 100 to 690V AC at 50/60Hz. All measurements are conveniently displayed on the device’s clear LCD display.

The user experience with the Testo 755-2 is streamlined, thanks to automatic measurement parameter detection, eliminating the risk of incorrect settings and ensuring safer and more reliable inspections. The open-jaw clamp is designed to activate automatically upon detecting a voltage over 6V, reducing the potential for human error on multiple levels. The integrated torch enhances visibility at measurement points, particularly valuable in dark environments like wiring cabinets.

The device’s measuring tips are easily interchangeable, facilitating maintenance and updates without complications. Certified to the latest standard (EN 61243-3:2010), the Testo 755-2 comes complete with measuring tips and batteries. In summary, the Testo 755-2 offers users an excellent, user-friendly solution for obtaining a wide range of basic electrical readings.

Testo part number: 0590 7552

Key Features:

  • Voltage range: 6 to 1000V AC/DC
  • Current range: 0.1 to 200A AC
  • Resistance range: 1 to 100k
  • Continuity test: <50
  • Rotating magnetic field testing
  • Single pole phase testing
  • Integrated torch
  • Cat IV to 600V, Cat III to 1000V
  • Automatically powers up when voltage is detected
  • Automatically detects and selects measurement parameters
  • Open-jaw clamp
  • Exchangeable measuring tips
  • LCD screen
  • 2-year warranty

What’s In The Box?

  • Testo 755-2 Current and Voltage Tester
  • Testo 755-2 Current and Voltage Tester instructions
  • Batteries
  • Measuring tips



  • Voltage measuring range: 6 to 1000V AC/DC
  • Current measuring range: 0 to 200A AC
  • Resistance measuring range: 1Ω to 100kΩ
  • Continuity testing: <50Ω
  • Rotating magnetic field testing: 100 to 690V AC at 50/60Hz
  • Single pole phase testing: 100 to 690V AC at 50/60Hz
  • Display (counts): 4000
  • Measuring point illumination: Yes
  • Measurement category: Cat IV 600V, Cat III 1000V
  • Protection class: IP64
  • Operating temperature: -10 to +50℃
  • Storage temperature: -10 to +60℃
  • Dimensions: 199 x 62 x 40mm (L x W x H)
  • Weight: 306g
  • Warranty: 2 years
  • Authorisations: TUV, CSA, CE
  • Standards: EN 61243-3:2010, EN 61010-1
