Testo 760-1 – Multimeter

Testo

£82.00 / £98.40 incl VAT

⚡ Easy, reliable operation through automatic measurement parameter detection
⚡ Prevents incorrect settings
⚡ Suitable for almost all electrical measuring tasks
⚡ Clear, illuminated display

Only 2 left in stock (can be backordered)

Price Pledge

Add Soft Carry Case?

Some Multimeters don’t come with a carry case that’s why we’ve added the perfect cases to go with you brand new multimeter, simply click to select.
(PLEASE CHECK THE PRODUCT YOU’RE BUYING IS NOT ALREADY SUPPLIED WITH A CASE)

None Leaderman LDM-C25 small Carry Case +£15.00 Leaderman LDM-C115 Large Carry Case +£22.00 Fluke C50 Meter Small Carry Case +£42.50 Fluke C25 Large Soft Carry Case +£47.50

Calibration Certificate

Add Calibration to your Multimeter.

SKU: TES-760-1 Categories: , Tags: , Brand:

Description

Testo 760-1 – Multimeter

Product Description:

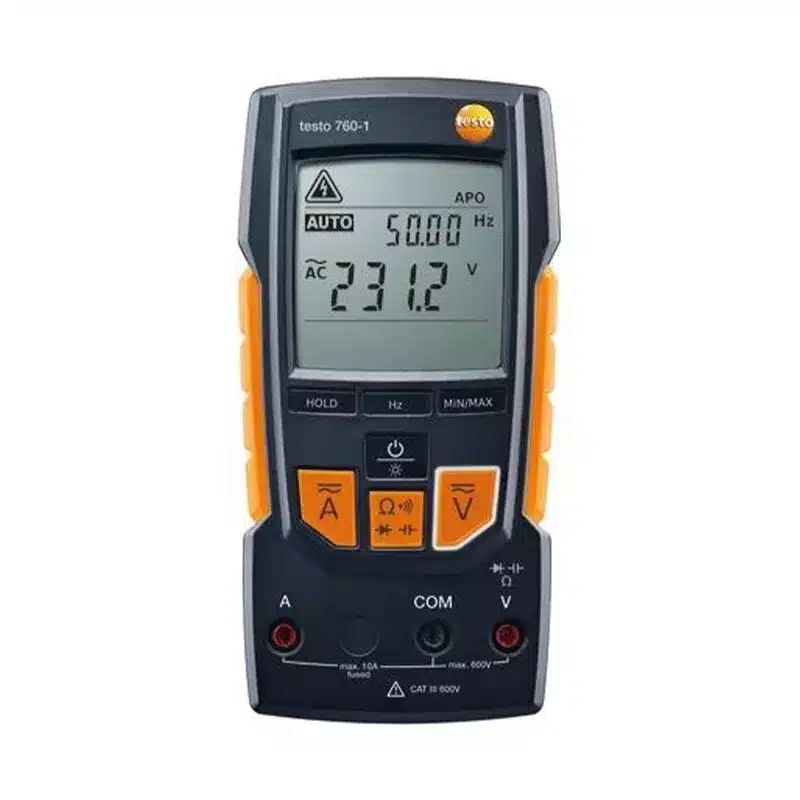

Testo 760-1 Digital Multimeter

The Testo 760-1 Digital Multimeter is a versatile multimeter that places great emphasis on usability in addition to measuring all regular electrical variables including AC/DC voltage, AC/DC current, resistance, capacitance, and frequency. Diode and continuity testing are also possible with the Testo 760-1.

The Testo 760-1’s main strength is that operation with incorrect settings is impossible because the device automatically detects the measurement parameters based on which sockets have been engaged. For ease of use, the appropriate function keys are illuminated when a socket is engaged whilst the display will show an error if the user attempts to measure the wrong parameter. Unlike traditional multimeters, the Testo 760-1 works with function keys rather than a dial, thereby making it easier to operate and reducing the risk of errors.

In addition to the Testo 760-1’s practical characteristics, it is rated as Cat IV up to 300V and Cat III up to 600V and there is a two-year warranty so the user can have confidence in all aspects of the device. The large, backlit screen means that readings are always easily legible and, at just 340g, the Testo 760-1’s lightweight design means it is easy to hold and transport. In conclusion, the Testo 760-1 combines versatility with several user-friendly features to constitute an excellent addition to any electrician’s toolbox.

Testo part number: 0590 7601

Key Features:

  • AC/DC Voltage: 0.1mV to 600V
  • AC/DC Current: 0.1mA to 10A AC/DC
  • Resistance: 0.1 to 40MΩ
  • Frequency: 0.001Hz to 500kHz
  • Capacitance: 0.001nF to 100µF
  • Diode test
  • Continuity test
  • Cat IV up to 300V / Cat III up to 600V
  • Function buttons replace traditional multimeter dial
  • Automatic parameter detection based on engaged sockets
  • Appropriate buttons illuminated depending on detected parameters
  • Error message if user attempts wrong measurement
  • Impossible to measure with incorrect settings
  • Large, backlit digital screen
  • 2-year warranty

What’s In The Box?

  • Testo 760-1 Digital Multimeter
  • Testo 760-1 Digital Multimeter instructions
  • 3 x 1.5V AAA batteries
  • Measuring cables

Models:

  • The testo 760-1 model is the standard version for virtually all daily measuring tasks.
  • The testo 760-2 is differentiated by a larger current measurement range, the true root mean square measurement – TRMS – and a low-pass filter.
  • The testo 760-3 is the model with the highest specification and, in addition to the features of the other two models, it has a voltage range of up to 1,000 V, along with higher measuring ranges for frequency and capacitance.

Technical Data

DC voltage
Measuring range 0.1 to 600 V
Resolution max. 0.1 mV
Accuracy ± (0.8 % of mv + 3 Digit)
AC voltage
Measuring range 0.1 mV to 600 V
Resolution max. 0.1 mV
Accuracy ± (1.0 % of mv + 3 Digit)
DC current
Measuring range 0.1 mA to 10 A
Resolution max. 0.1
Accuracy ± (1.5 % of mv + 5 Digit)
AC current
Measuring range 0.1 mA to 10 A
Resolution max. 0.1 mA
Accuracy ± (1.0 % of mv + 3 Digit)
Resistance
Resolution max. 0.1 Ohm
Measuring range 0.1 to 40.00 MOhm
Accuracy ± (1.5 % of mv + 3 Digit)
Capacitance
Resolution max. 0.01 nF
Measuring range 0.001 nF to 100 μF
Accuracy ± (1.5 % of mv + 5 Digit)
Frequency
Resolution max. 0.001 Hz
Measuring range 0.001 Hz to 512.0 kHz
Accuracy ± (0.1 % of mv + 1 Digit)
General technical data
Operating humidity 0 to 80 %RH
Weight 340 g
Dimensions 167 x 85 x 45 mm
Operating temperature -10 to +50 °C
Product colour Black
Protection class IP64
Standards EN 61326-1; EN 61010-2-033; EN 61140
Battery type 2 AAA micro batteries
Display type LCD (Liquid Crystal Display)
Display size 2 lines
Interface 4 measuring jacks
Storage temperature -15 to +60 °C
Overvoltage Category CAT III 600V; CAT IV 300V
Authorizations CSA; CE
Internal_resistance 11 MOhm (AC / DC)
Instrument Measurement Functions
Diode test yes
Continuity testing yes
Display ligthing yes
Hold yes
MinMax yes
Display (counts) 4,000
Autom. measurement parameter detection yes
