Testo 760-2 Multimeter

Testo

£132.00 / £158.40 incl VAT

⚡ Easy, reliable work thanks to automatic measurement parameter detection
⚡ Current measurement in the µA range
⚡ True root mean square measurement – TRMS
⚡ Low-pass filter for accurate measurement results on frequency converter controlled motors

Only 1 left in stock (can be backordered)

Price Pledge

Calibration Certificate

Add Calibration to your Multimeter.

Description

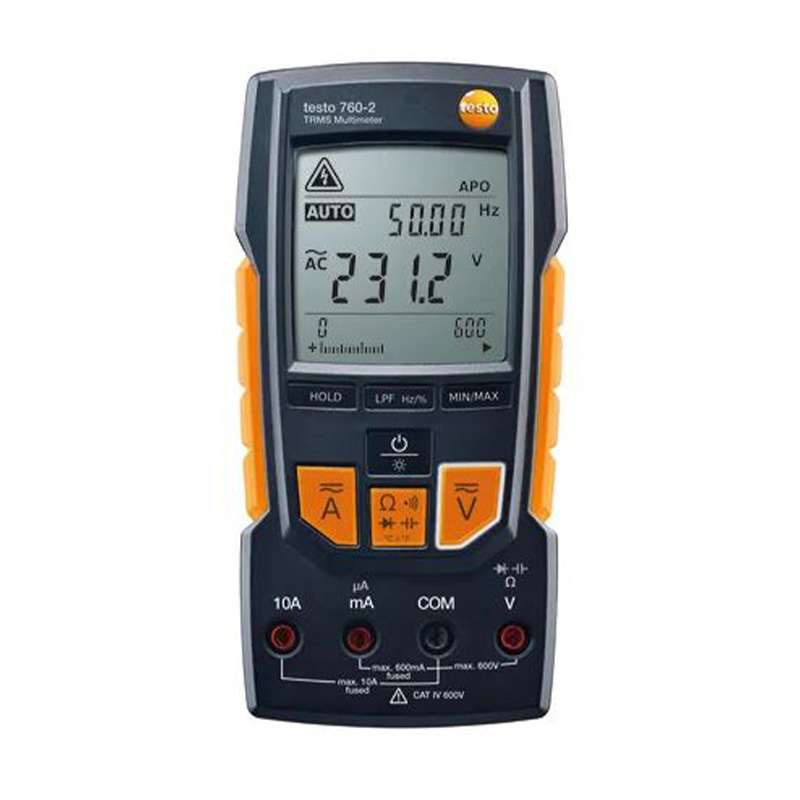

Testo 760-2 Multimeter

Product Description:

With impressive ranges over a multitude of different variables, the Testo 760-2 True RMS Digital Multimeter is a great instrument for electrical inspection and assessment. In addition to measuring standard multimeter values such as AC/DC voltage, AC/DC current, resistance, capacitance, and frequency, the Testo 760-2 also has a µA range and an input for a temperature probe for more comprehensive inspection. Diode and capacitance testing are also available if needed whilst True RMS functionality safeguards accuracy.

Alongside these comprehensive measurement capabilities over large value ranges, the Testo 760-2 also boasts several user-friendly features which save time and prevent errors. Firstly, the device has automatic parameter detection depending on which sockets have been engaged by the user so it is ready to go straightaway and the relevant function keys even light up to show the user which variables are due to be measured. Secondly, it is impossible to operate the device with incorrect settings because an error message comes up on screen if the user attempts to measure the wrong variable. Finally, the light-up function keys themselves are an upgrade on the traditional dial as they also make the device simpler to use and help avoid mistakes.

The Testo 760-2’s screen is large and backlit so readings are clearly visible. The device is rated as Cat IV up to 600V and the user also benefits from a two-year warranty for further peace of mind. It’s light, compact design makes it easy to transport and it comes with test leads to get started straightaway. All-in-all, the Testo 760-2’s mix of comprehensive electrical measurement and user-friendly features makes it excellent for performing inspections quickly and accurately.

Testo part number: 0590 7602

Key Features:

  • True RMS
  • 0.1% basic accuracy
  • AC/DC Voltage: 0.1mV to 600V
  • AC/DC Current: 0.1µA to 10A AC/DC
  • Resistance: 0.1 to 60MΩ
  • Frequency: 0.001Hz to 30MHz
  • Capacitance: 0.001nF to 30,000µF
  • Temperature: -20 to +500℃
  • Diode test
  • Continuity test
  • Cat IV up to 600V / Cat III up to 1000V
  • Function keys instead of traditional multimeter dial
  • Automatic parameter detection according to assigned sockets
  • Buttons light up depending on detected parameters
  • Eliminates incorrect settings
  • Large, backlit digital screen
  • 2-year warranty

What’s In The Box?

  • Testo 760-2 True RMS Digitial Multimeter
  • Testo 760-2 True RMS Digital Multimeter instruction manual
  • Test leads
  • 3 x AAA batteries
  • Adapter for Type K thermocouple

Models:

  • The testo 760-1 model is the standard version for virtually all daily measuring tasks.
  • The testo 760-2 is differentiated by a larger current measurement range, the true root mean square measurement – TRMS – and a low-pass filter.
  • The testo 760-3 is the model with the highest specification and, in addition to the features of the other two models, it has a voltage range of up to 1,000 V, along with higher measuring ranges for frequency and capacitance.

Technical Data

Temperature – TC Type K (NiCr-Ni)
Measuring range -20 to +500 °C
Accuracy ±1 °C (0 to +100 °C)
Resolution 0.2 °C
DC voltage
Measuring range 0.1 to 600 V
Resolution max. 0.1 mV
Accuracy ± (0.8 % of mv + 3 Digit)
AC voltage
Measuring range 0.1 mV to 600 V
Resolution max. 0.1 mV
Accuracy ± (1.0 % of mv + 3 Digit)
DC current
Measuring range 0.1 μA to 10 A
Resolution max. 0.1
Accuracy ± (1.5 % of mv + 5 Digit)
AC current
Measuring range 0.1 μA to 10 A
Resolution max. 0.1 μA
Accuracy ± (1.5 % of mv + 5 Digit)
Resistance
Resolution max. 0.01 Ohm
Measuring range 0.01 to 60.00 MOhm
Accuracy ± (1.5 % of mv + 3 Digit)
Capacitance
Resolution max. 0.01 nF
Measuring range 0.001 nF to 30000 μF
Accuracy ± (1.5 % of mv + 5 Digit)
Frequency
Resolution max. 0.1 Hz
Measuring range 0.001 Hz to 30.00 MHz
Accuracy ± (0.1 % of mv + 1 Digit)
General technical data
Operating humidity 0 to 80 %RH
Weight 340 g
Dimensions 167 x 85 x 45 mm
Operating temperature -10 to +50 °C
Product colour Black
Protection class IP64
Standards EN 61326-1; EN 61010-2-033; EN 61140
Battery type 3 AAA micro batteries
Display type LCD (Liquid Crystal Display)
Display size 2 lines
Interface 4 measuring jacks
Storage temperature -15 to +60 °C
Overvoltage Category CAT III 1000V; CAT IV 600V
Authorizations CSA

CSA; CE

Internal_resistance 11 MOhm (AC / DC)
Instrument Measurement Functions
Diode test yes
Continuity testing yes
Current probe measurement with adapter yes
Display ligthing yes
Hold yes
MinMax yes
Temperature measurement with adapter yes
True RMS yes
Low-pass filter yes
Duty cycle measurement yes
Display (counts) 6,000
μA current measuring range yes
Autom. measurement parameter detection yes
