Testo 760-3 Multimeter

Testo

£162.00 / £194.40 incl VAT

⚡ Easy, reliable work thanks to automatic measurement parameter detection
⚡ Comfortable, one-handed operation without any dial
⚡ Voltage range up to 1,000 V
⚡ Additional functions, such as true root mean square measurement – TRMS, low-pass filter and temperature adapter

Only 1 left in stock (can be backordered)

Price Pledge

Add Soft Carry Case?

Some Multimeters don’t come with a carry case that’s why we’ve added the perfect cases to go with you brand new multimeter, simply click to select.
(PLEASE CHECK THE PRODUCT YOU’RE BUYING IS NOT ALREADY SUPPLIED WITH A CASE)

None Leaderman LDM-C25 small Carry Case +£15.00 Leaderman LDM-C115 Large Carry Case +£22.00 Fluke C50 Meter Small Carry Case +£42.50 Fluke C25 Large Soft Carry Case +£47.50

Calibration Certificate

Add Calibration to your Multimeter.

Categories: , Tags: , Brand:

Description

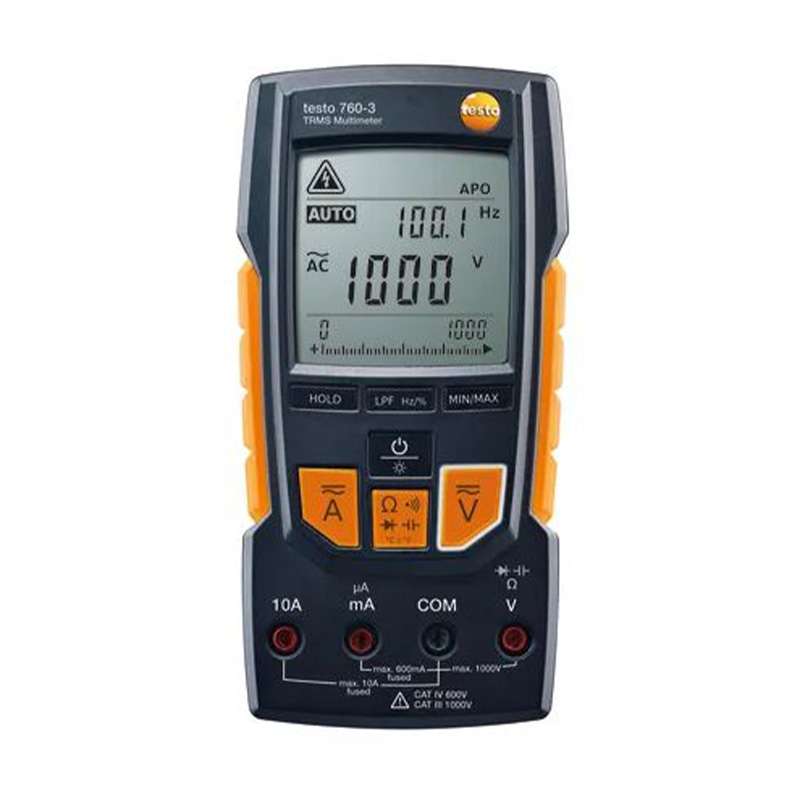

Testo 760-3 Multimeter

Product Description:

The Testo 760-3 True RMS Digital Multimeter is the most advanced multimeter in Testo’s 760 range, featuring True RMS and very large measurement ranges over all major electrical variables required by the professional electrician. Additionally, the device automatically detects measurement parameters and prevents incorrect settings leading to greater accuracy and speedier use.

The Testo 760-3 can measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, and temperature with maximum values of 1000V, 10A, 60MΩ, 60MHz, 60,000µF, and 500℃. Diode and continuity testing are also possible whilst the Testo 760-3’s basic accuracy is an excellent ±0.1%, in part helped by its True RMS capabilities. The user can have further confidence in the readings as the device is rated as Cat IV up to 600V and Cat III up to 1000V.

In addition to this excellent measuring capacity, the Testo 760-3 also has several practical features to help the user. First and foremost, the device automatically detects measurement parameters based on the engaged sockets and then lights up the correct function key so the measurement settings are visible at a glance. Moreover, the large, backlit screen shows an error message if the user attempts the wrong measurement so taking readings with incorrect settings is impossible with the Testo 760-3. The function keys themselves are also an upgrade on the traditional multimeter dial as they make the device simpler and quicker to use.

The user benefits from the Testo 760-3’s two-year warranty and sturdy build quality. Overall, the excellent measurement ranges and advanced, modern operation of the Testo 760-3 make it a brilliant tool for measuring all basic electrical variables.

Testo part number: 0590 7603

Key Features:

  • True RMS leading to 0.1% basic accuracy
  • AC/DC Voltage: 0.1mV to 1000V
  • AC/DC Current: 0.1µA to 10A AC/DC
  • Resistance: 0.1 to 60MΩ
  • Frequency: 0.001Hz to 60MHz
  • Capacitance: 0.001nF to 60,000µF
  • Temperature: -20 to +500℃
  • Diode test
  • Continuity test
  • Cat IV up to 600V / Cat III up to 1000V
  • Modern function keys rather than traditional multimeter dial
  • Automatically detects parameters based on engaged sockets
  • Buttons illuminated depending on parameters
  • No possibility of incorrect settings
  • Sizeable, backlit digital screen
  • 2-year warranty

What’s In The Box?

  • Testo 760-3 True RMS Digital Multimeter
  • Testo 760-3 True RMS Digital Multimeter instructions
  • Test leads
  • 3 x 1.5V AAA batteries

Models:

  • The testo 760-1 model is the standard version for virtually all daily measuring tasks.
  • The testo 760-2 is differentiated by a larger current measurement range, the true root mean square measurement – TRMS – and a low-pass filter.
  • The testo 760-3 is the model with the highest specification and, in addition to the features of the other two models, it has a voltage range of up to 1,000 V, along with higher measuring ranges for frequency and capacitance.

Technical Data

Temperature – TC Type K (NiCr-Ni)
Measuring range -20 to +500 °C
Accuracy ±1 °C (0 to +100 °C)
Resolution 0.2 °C
DC voltage
Measuring range 0.1 to 1000 V
Resolution max. 0.1 mV
Accuracy ± (0.8 % of mv + 3 Digit)
AC voltage
Measuring range 0.1 mV to 1000 V
Resolution max. 0.1 mV
Accuracy ± (1.0 % of mv + 3 Digit)
DC current
Measuring range 0.1 μA to 10 A
Resolution max. 0.1
Accuracy ± (1.5 % of mv + 5 Digit)
AC current
Measuring range 0.1 μA to 10 A
Resolution max. 0.1 μA
Accuracy ± (1.5 % of mv + 5 Digit)
Resistance
Resolution max. 0.01 Ohm
Measuring range 0.01 to 60.00 MOhm
Accuracy ± (1.5 % of mv + 3 Digit)
Capacitance
Resolution max. 0.01 nF
Measuring range 0.001 nF to 60000 μF
Accuracy ± (1.5 % of mv + 5 Digit)
Frequency
Resolution max. 0.1 Hz
Measuring range 0.001 Hz to 60.00 MHz
Accuracy ± (0.1 % of mv + 1 Digit)
General technical data
Operating humidity 0 to 80 %RH
Weight 340 g
Dimensions 167 x 85 x 45 mm
Operating temperature -10 to +50 °C
Product colour Black
Connectable probes 1 x temperature probe (adapter required for type K thermocouples)
Protection class IP64
Standards EN 61326-1; EN 61010-2-033; EN 61140
Battery type 3 AAA micro batteries
Display type LCD (Liquid Crystal Display)
Display size 2 lines
Interface 4 measuring jacks
Storage temperature -15 to +60 °C
Overvoltage Category CAT IV 600V; CAT III 1000V
Authorizations CE; CSA
Internal_resistance 11 MOhm (AC / DC)
Instrument Measurement Functions
Diode test yes
Continuity testing yes
Current probe measurement with adapter yes
Display ligthing yes
Hold yes
MinMax yes
Temperature measurement with adapter yes
True RMS yes
Low-pass filter yes
Duty cycle measurement yes
Display (counts) 6,000
μA current measuring range yes
Autom. measurement parameter detection yes
