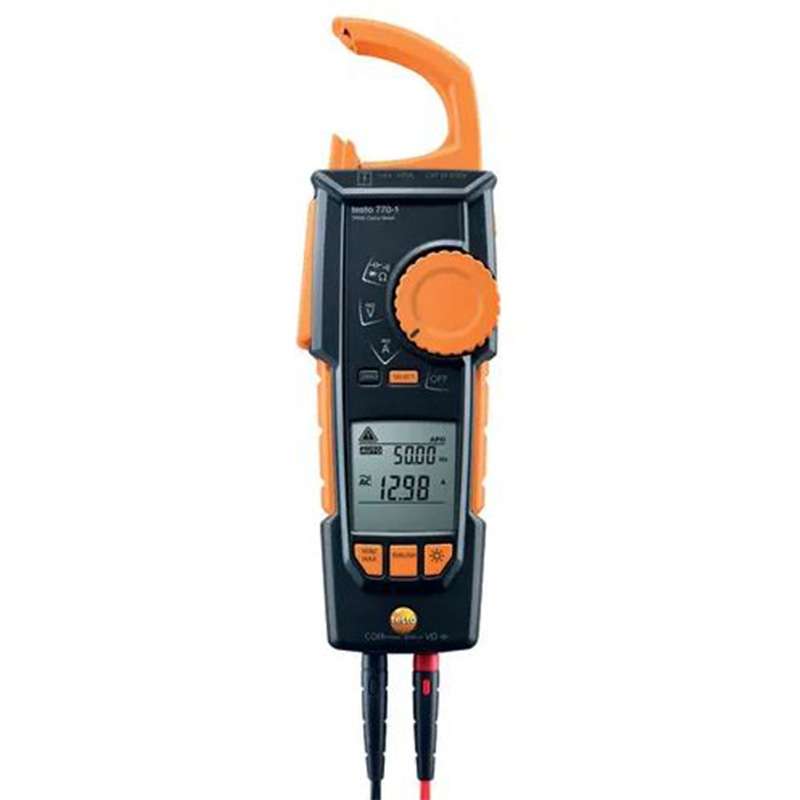

Testo 770-1 True RMS Clamp Meter

Testo

£110.00 / £132.00 incl VAT

⚡ Easy to operate thanks to the fully retractable pincer arm
⚡ Auto AC/DC and large two-line display
⚡ Improved TRMS method
⚡ Bluetooth connection to your smartphone (with the testo Smart App)

In stock (can be backordered)

Price Pledge

Calibration Certificate

Add Calibration on your Clamp Meter.

Description

Testo 770-1 True RMS Clamp Meter

Product Description:

The most prominent physical feature of the Testo 770-1 True RMS Clamp Meter is its fully retractable pincer clamp. This pincer aids the user by bringing access to very tight wiring because, without the obstacle of a hard jaw, the fixed part of the clamp can be easily inserted behind a wire before the retractable pincer section comes up to meet it (watch the video to see this in action). This is especially useful when taking readings inside wiring cabinets and other awkward locations.

In addition to its unique retractable clamp, the Testo 770-1 effectively and accurately performs all the major functions required of a clamp meter over impressive measurement ranges. Readings can be taken for AC/DC voltage, AC/DC current, resistance, frequency and capacitance whilst there are also options for continuity and diode testing.

The TRMS measurement function means that readings are accurate whilst the device also automatically detects whether current or voltage is AC or DC so readings take less time and risk fewer mistakes. Alongside measurement functions such as Inrush current measurement, hold and Min/Max, automatic parameter detection extends to diode, resistance, capacitance and continuity, thus making the Testo 770-1 extremely user-friendly.

The two-line display allows the user to view two real-time readings at once and the device is light, small and portable. Overall, it brings accuracy and practicality to measuring several different electrical variables through its unique pincer clamp.

Testo part number: 0590 7701

  • The three instruments in the testo 770 clamp meter family are ideally suited for current measurement in switching cabinets. One of the two pincer arms can be fully retracted into the instrument. This unique grab mechanism means that cables in tight switching cabinets can be easily grabbed. The automatic measurement parameter detection also ensures reliable work: in the current and voltage area, all three instruments detect direct and alternating current and select other parameters such as resistance, continuity, diode and capacitance automatically.
  • The testo 770-1 model is the standard version for daily measuring tasks, including starting current measurement.
  • The testo 770-2 also has a μA range as well as an integrated temperature adapter for all type K thermocouples.
  • In addition to that, the testo 770-3 includes real-time power measurements (Watts), Power Factor, and Bluetooth. The free Testo Smart App can be used for remote viewing, monitoring, data logging, and creating reports via Bluetooth. The powerful app allows you to create custom reports that include photos, data, and graphs that can be saved or sent via email.

Key Features:

  • True RMS
  • 0.8% basic accuracy
  • AC/DC voltage from 1mV to 600V
  • AC/DC current from 0.1 to 400A
  • Resistance from 0.1Ω to 40MΩ
  • Frequency from 0.001Hz to 10kHz
  • Capacitance from 0.001µF to 100µF
  • Diode and continuity testing
  • Cat IV to 600V
  • Unique pincer clamp
  • Two-line, backlit screen
  • Automatic detection of AC or DC voltage/current
  • Automatic parameter selection
  • Two-year warranty

What’s Included:

  • testo 770-3 Clamp Meter includes batteries
  • 1 set of measuring cables.

Additional features:

  • True RMS measurement function
  • μA measurement range, integrated temperature adapter for all type K thermocouples.
  • Connects to testo Smart App via bluetooth for performance measurement function and downloadable reports. Also auto-calculates Power/Wattage.

Technical Data

Temperature – TC Type K (NiCr-Ni)
Measuring range -20 to +500 °C
Accuracy ±1 °C (0 to +100 °C)
Resolution 0.2 °C
DC voltage
Measuring range 1.0 to 600.0 V
Resolution max. 1 mV
Accuracy ± (0.8 % of mv + 3 Digit)
AC voltage
Measuring range 1.0 mV to 600.0 V
Resolution max. 1 mV
Accuracy ± (1 % of mv + 3 Digit)
DC current
Measuring range 0.1 to 600.0 A (clamp)

0.1 to 600.0 μA (measuring cables)

Resolution 0.1 (clamp)

0.1 (measuring cables)

Accuracy ± (2 % of mv + 5 Digit) (clamp)

± (2 % of mv + 5 Digit) (measuring cables)

AC current
Measuring range 0.1 to 600.0 A (clamp)

0.1 to 600.0 μA (measuring cables)

Resolution 0.1 A (clamp)

0.1 μA (measuring cables)

Accuracy ± (2 % of mv + 5 Digit) (clamp)

± (1.5 % of mv + 5 Digit) (measuring cables)

Resistance
Resolution max. 0.01 Ohm
Measuring range 0.01 to 60.0 MOhm
Accuracy ± (1.5 % of mv + 3 Digit)
Capacitance
Resolution max. 0.01 nF
Measuring range 2 nF to 60.00 mF
Accuracy ± (1.5 % of mv + 5 Digit)
Frequency
Resolution max. 0.1 Hz
Measuring range 0.01 Hz to 9999 kHz
Accuracy ± (1 % of mv + 1 Digit)
Active Power
Measuring range 0.1 W to 600 kW
Accuracy ± (5 % of mv + 5 Digit)
Resolution 0.1 W
Reactive Power
Measuring range 0.1 to 600.0 kvar
Accuracy ± (10 % of mv + 5 Digit)
Resolution 0.1 var
Apparent Power
Measuring range 0.1 VA to 600.0 kVA
Accuracy ± 1 Digit
Resolution 0.1 VA
Direct current DC Voltage
Measuring range 0.1 W to 600.0 kW
Accuracy ± 1 Digit
Resolution max. 0.1 W
Power Factor
Measuring range -1.00 to +1.00
Accuracy ± (10 % of mv + 5 Digit)
Resolution 0.01
General technical data
Operating humidity 0 to 80.0 %RH
Weight 378 g
Dimensions 249 x 96 x 43 mm
Operating temperature -10 to +50 °C
Connectable probes 1 x temperature probe (adapter required for type K thermocouples)
System requirements requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour Black
Standards EN 61326-1; EN 61010-2-032; EN 61140
Battery type 3 AAA micro batteries
Display type LCD (Liquid Crystal Display)
Display size 2 lines
Interface 2 measuring jacks
Storage temperature -15 to +60 °C
Overvoltage Category CAT IV 600V; CAT III 1000V
Authorizations CSA; CE
Internal_resistance 11 MOhm (AC / DC)
Instrument Measurement Functions
Diode test yes
Continuity testing yes
Display ligthing yes
Hold yes
MinMax yes
Power Measurement yes
Temperature measurement with adapter yes
True RMS yes
Inrush current measurement yes
Bluetooth yes
Display (counts) 6,000
μA current measuring range yes
Autom. measurement parameter detection yes
