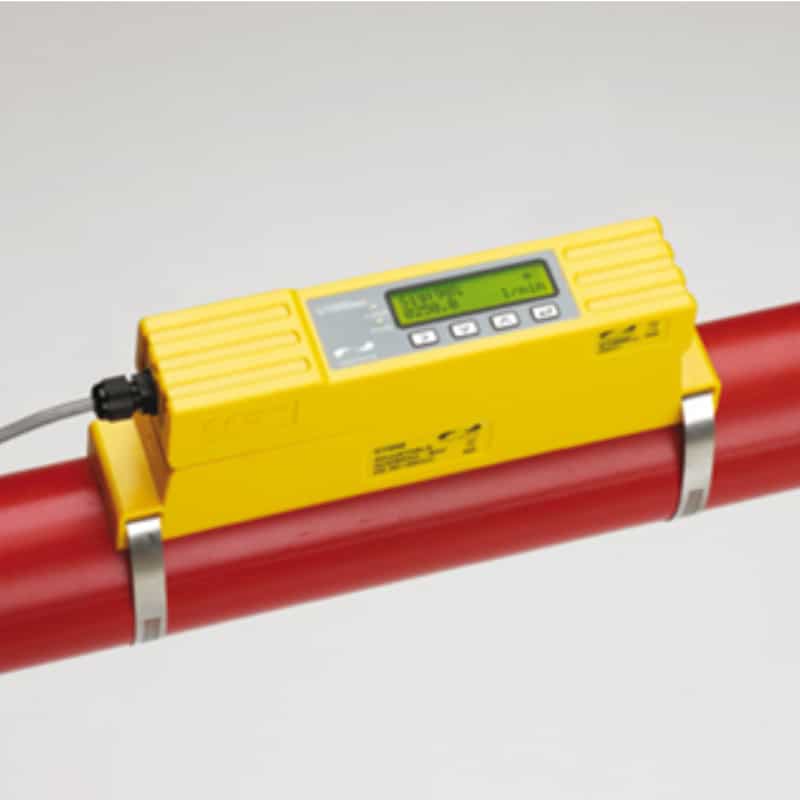

U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter
Price range: £990.00 through £1,320.00
⚡ Permanent, fixed clamp-on flow meter with non-invasive ultrasonic technology for accurate flow measurement from outside the pipe.
⚡ Simple installation with factory pre-configuration; minimal on-site setup needed, only requiring pipe diameter and material input.
⚡ Multiple output options available, including volume pulse, Modbus, M-Bus, or 4-20mA, for versatile integration into management systems.
⚡ Rugged and reliable with IP54 protection, suitable for industrial environments; ideal for hot/chilled water, potable water, and ultrapure water applications.
⚡ Wide flow range (0.1m/s to 10m/s) with high accuracy (±1% to ±3%), with readings displayed on a backlit LCD for easy monitoring.
Description
U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter
Product Description:
The Micronics U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter is a permanent/ fixed clamp-on metering solution that utilises ultrasonic technology to measure flow rate and total flow from outside the pipe. All models include a volume pulse output; OPTIONAL Modbus OR M-Bus OR 4-20mA flow proportional outputs are also available. Please see the table below for an overview of the U1000MKII-FM models.
| SKU | Title | Max. Pipe Size | Outputs | |||
|---|---|---|---|---|---|---|
| Volume Pulse | Modbus | M-Bus | 4-20mA | |||
| 804-11001400 | U1000MKII-FM Flow Meter with Pulse Output for 4″ Pipes | 4″ (22-115 OD/ 20-110 ID) | Yes | No | No | No |
| 804-11004600 | U1000MKII-FM Flow Meter with Pulse Output for 6″ Pipes | 6″ (125-180 OD/ 105-165 ID) | Yes | No | No | No |
| 804-11001401 | U1000MKII-FM Flow Meter with Pulse & 4-20mA Outputs for 4″ Pipes | 4″ (22-115 OD/ 20-110 ID) | Yes | No | No | Yes |
| 804-11004601 | U1000MKII-FM Flow Meter with Pulse & 4-20mA Outputs for 6″ Pipes | 6″ (125-180 OD/ 105-165 ID) | Yes | No | No | Yes |
| 804-11001402 | U1000MKII-FM Flow Meter with Pulse & Modbus Outputs for 4″ Pipes | 4″ (22-115 OD/ 20-110 ID) | Yes | Yes | No | No |
| 804-11004602 | U1000MKII-FM Flow Meter with Pulse & Modbus Outputs for 6″ Pipes | 6″ (125-180 OD/ 105-165 ID) | Yes | Yes | No | No |
| 804-11001403 | U1000MKII-FM Flow Meter with Pulse & M-Bus Outputs for 4″ Pipes | 4″ (22-115 OD/ 20-110 ID) | Yes | No | Yes | No |
| 804-11004603 | U1000MKII-FM Flow Meter with Pulse & M-Bus Outputs for 6″ Pipes | 6″ (125-180 OD/ 105-165 ID) | Yes | No | Yes | No |
The Micronics U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter can be used as a stand-alone meter or as part of an integrated management system.

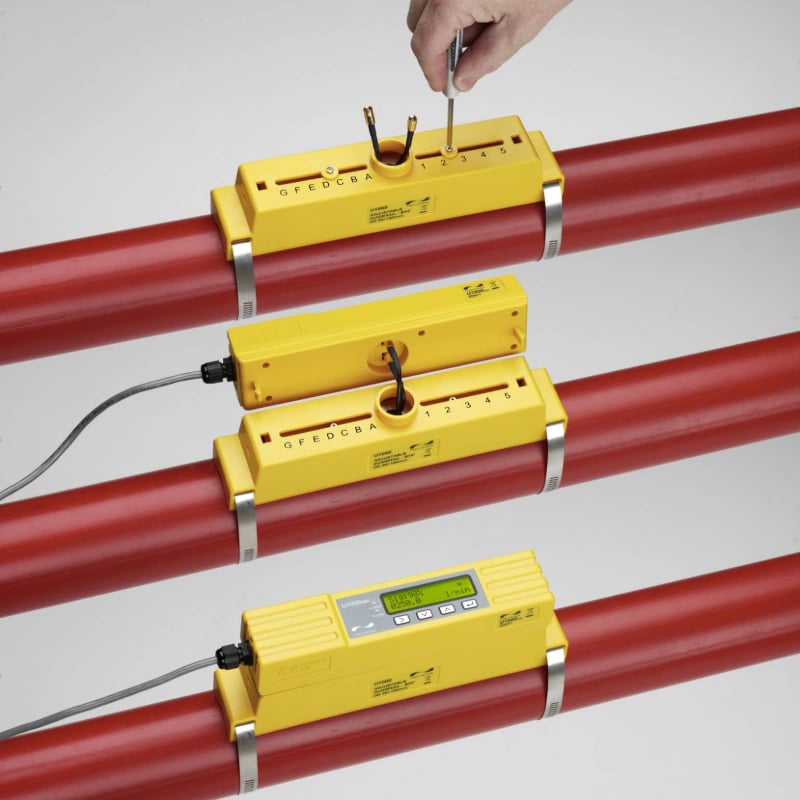

It is simple to install as it has been factory configured and, therefore, requires minimal programming on-site. The user needs only adjust the guide rail and sensor assembly, connect the Micronics U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter to the power, and enter the inside diameter of the pipe and the pipe material. Moreover, clamp-on installation and transit-time ultrasonic technology enable non-invasive measurements, eliminating the need for mechanical parts to be inserted into the pipe and/or for the system to be drained or shut down.
The Micronics U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter functions by simultaneously transmitting ultrasound between the clamp-on transducers in both directions. When ultrasound is emitted in the direction of flow the speed of the sound is accelerated; when it is emitted in the opposite direction the speed of the sound is decelerated. The time difference between ultrasound emissions is directly proportional to flow velocity. Using the flow velocity and the pipe’s cross-sectional area, the operator can calculate the volumetric flow.
The Micronics U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter has a flow range of 0.1m/s to 10m/s (0.3ft/s to 32ft/s) and an accuracy of ±1% to ±3% (for 0.3m/s/ 1ft/s). Please see the video below for an overview of how to use the Micronics U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter.
Micronics U1000 U Ultrasonic Clamp On Flow Meter

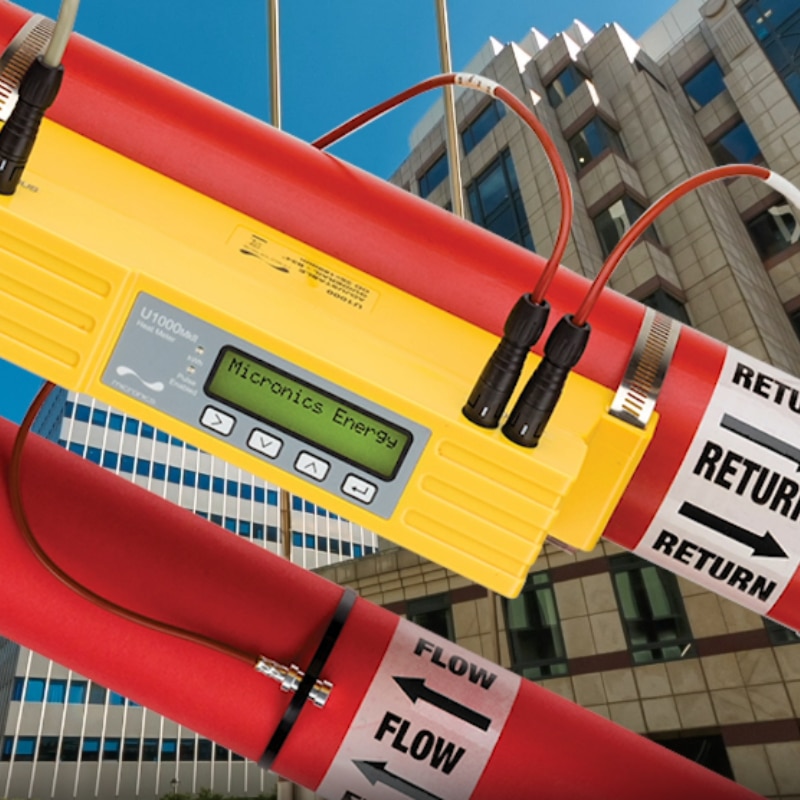

Measurements are displayed on the Micronics U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter’s backlit LCD. Via this display, the user can also view installation and service information.
The Micronics U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter is a compact, cost-effective, and reliable alternative to traditional in-line meter installations. This rugged ultrasonic flow meter provides consistent performance in industrial environments.
Applications
| Industries | Building Services |
| Energy Management | |
| Water Treatment | |
| Chemical | |
| Pharmaceutical | |
| Petrochemical | |
| Food | |
| Recommended For | Hot water < 85°C (185°F) |
| Chilled water | |
| Potable water | |
| Demineralised water | |
| Chilled Water with Glycol | |
| Applications/ Use | Hot water metering and flow measurement |
| Flow measurement for heat metering | |
| Chilled water metering and flow measurement | |
| Flow measurement for chilled water energy metering | |
| Potable water metering and flow measurement | |
| Process water metering and flow measurement | |
| Ultrapure water measurement |
Key Features:
- A permanent/ fixed clamp-on flow metering solution
- Utilises ultrasonic technology to measure flow rate and total flow from outside the pipe
- Volume pulse output
- OPTIONAL Modbus OR M-Bus OR 4-20mA flow proportional outputs available (see table above)
- OPTIONAL outputs are aM&T and BEM compatible
- Use as a stand-alone meter or as part of an integrated management system
- Simple-to-install: adjust the guide rail and sensor assembly, connect to the power, and enter the inside diameter of the pipe and the pipe material
- Factory configured: requires minimal site configuration
- Non-invasive measurement
- Simultaneously transmits ultrasound between the clamp-on transducers in both directions
- The time difference between the ultrasound transmissions is directionally proportional to the flow velocity
- Use the flow velocity and the pipe’s cross-sectional area to calculate the volumetric flow
- Flow range: 0.1m/s to 10m/s (0.3ft/s to 32ft/s)
- Accuracy: ±1% to ±3% (for 0.3m/s to 1ft/s)
- Backlit LCD
- Displays measurements and installation and service information
- Rugged: IP54
- Compact, cost-effective, and reliable alternative to traditional in-line meter installations
- Rugged ultrasonic flow meter provides consistent performance in industrial environments
What’s Included?
- Micronics U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter with Volume Pulse Output
- OPTIONAL Modbus OR M-Bus OR 4-20mA Flow Proportional Output
- 4” OR 6” Pipe Adapters
- Banding
- Acoustic Interface Gel
