Chauvin Arnoux F203 True RMS Clamp Meter


£270.00 / £324.00 incl VAT
- Professional TRMS AC/DC clamp meter for electrical testing and maintenance
- Measures AC/DC current up to 600 A with 900 A peak capability
- Automatic AC/DC detection with voltage measurement up to 1000 V
- TrueInrush, MIN/MAX/HOLD, and temperature measurement functions
- CAT IV 600 V safety rating for industrial and commercial applications
- Supplied with test leads, thermocouple, battery, and carrying bag
- 3 Year Warranty
Available on back-order
Description

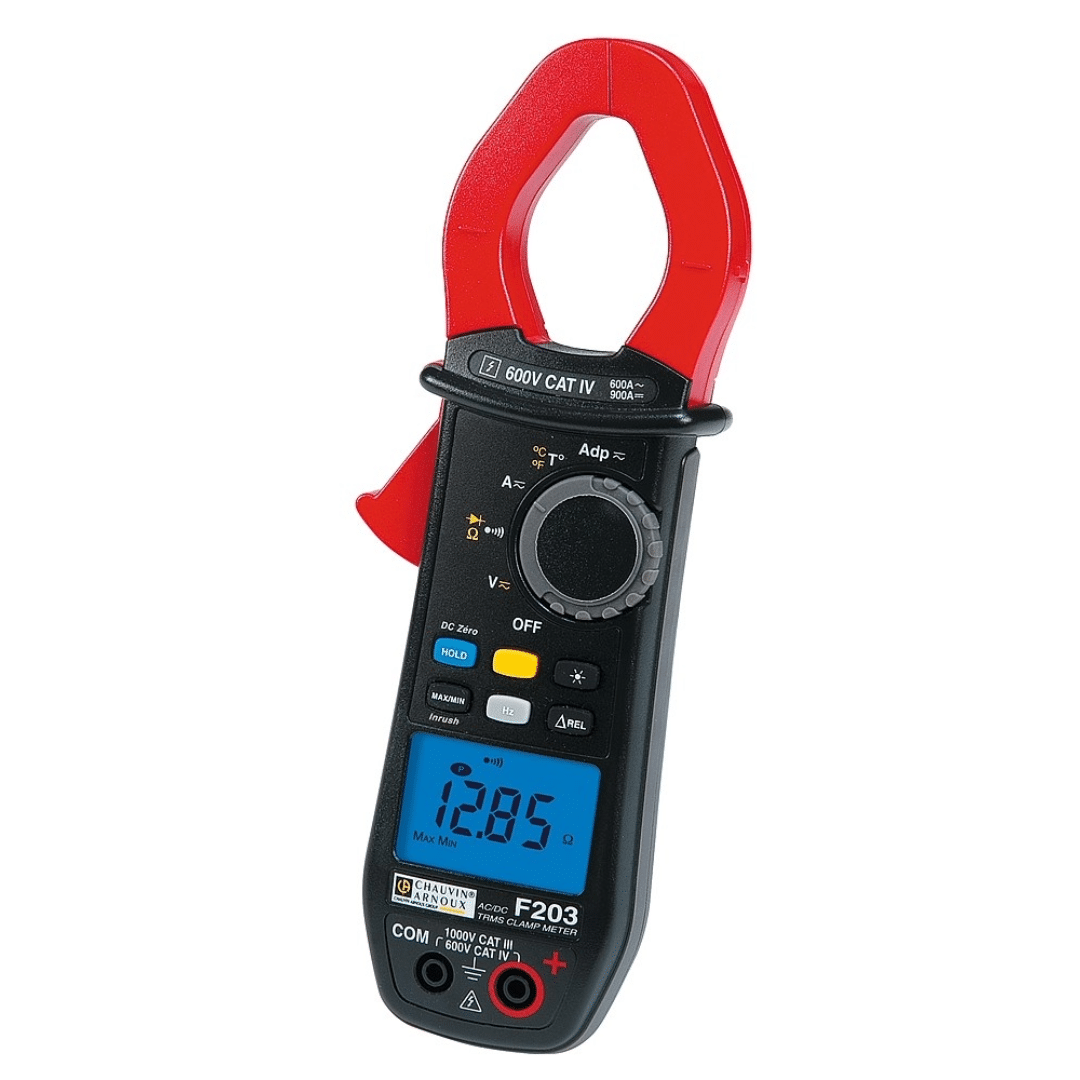

Chauvin Arnoux F203 True RMS Clamp Meter
The Chauvin Arnoux F203 Clamp Meter is a professional TRMS digital clamp meter designed for electricians, maintenance engineers, and electrical contractors. Offering accurate AC/DC current measurement up to 600 A, automatic AC/DC detection, and a CAT IV 600 V safety rating, the F203 is ideal for industrial, commercial, and maintenance applications. Its fast TRMS acquisition system ensures reliable readings on distorted waveforms, while features such as TrueInrush measurement, MIN/MAX recording, and temperature measurement provide added versatility for everyday electrical testing.
Key Features
- TRMS measurements for accurate readings on non-linear signals
- AC/DC current measurement up to 600 A
- 900 A peak current capability
- 6,000 count backlit digital display
- 34 mm clamp jaw opening
- Automatic AC/DC detection
- Voltage measurement up to 1,000 V
- Resistance, continuity, and temperature measurement
- TrueInrush current measurement
- MIN/MAX/HOLD functions
- Relative (ΔX) and differential (ΔX/X) measurements
- Adapter measurement function
- CAT IV 600 V safety rating
- Supplied with carrying case
What’s Included
- F203 Clamp Meter
- Red and black banana test probe leads
- K-type thermocouple with banana terminations
- 9 V battery
- Carrying bag
- Multilingual getting started guide
| Specification | Details |
|---|---|
| Clamping Diameter | 34 mm |
| Display | Backlit LCD |
| Resolution | 6,000 counts |
| Number of Values Displayed | 1 |
| Acquisition Type | TRMS AC/DC |
| Autorange | Yes |
| Automatic AC/DC Detection | Yes |
| AC Current Measurement | 0.15 to 600 A (900 A peak) |
| DC Current Measurement | 0.15 to 900 A peak |
| Best Accuracy | ±1% reading + 3 counts |
| AC Voltage Measurement | 0.15 to 1,000 V (1,400 V peak) |
| DC Voltage Measurement | 0.15 to 1,400 V |
| Frequency Measurement | Current: 5.0 Hz to 3,000 Hz / Voltage: 5.0 Hz to 20.00 kHz |
| Resistance Measurement | 0.1 Ω to 59.99 kΩ |
| Open-Circuit Voltage | ≤ 8 V |
| Measurement Current | ≤ 680 µA |
| Audible Continuity | Yes |
| Continuity Threshold | Adjustable from 1 to 599 Ω |
| Diode Test | Yes |
| Temperature Measurement | -60.0 to +1,000.0°C (-76.0 to +1,832°F) |
| Single-Phase & Three-Phase Power Values | Yes |
| True InRush Measurement | Yes |
| Motor Inrush | Yes |
| Load Change Function | Yes |
| Hold Function | Yes |
| Min./Max. Recording | Yes |
| Relative / Differential Measurement | REL ΔX / ΔX/X (%) |
| Auto Power Off | Yes |
| Safety Rating | IEC 61010 – 600 V CAT IV |
| Power Supply | 1 x 9 V LF22 battery |
| Dimensions & Weight | 78 x 222 x 42 mm / 340 g |
- F203 Clamp Meter
- Red and black banana test probe leads
- K-type thermocouple with banana terminations
- 9 V battery
- Carrying bag
- Multilingual getting started guide
