Sale!

Fluke 375 FC Clamp Meter Bluetooth, 600A dc, Max Current 600A ac CAT III 1000 V, CAT IV 600 V

Fluke

Original price was: £429.00.Current price is: £399.00. / £478.80 incl VAT

⚡ Measures AC/DC voltage, AC/DC current, frequency, resistance & capacitance
⚡ Bluetooth connectivity via the Fluke Connect App to smartphone/tablet
⚡ True RMS, Inrush current, low-pass filter
Price Pledge

Calibration Certificate

Add Calibration on your Clamp Meter.

Description

Fluke 375 FC True RMS AC/DC Clamp Meter

Product Description:

The Fluke 375 FC True RMS AC/DC Clamp Meter is a smart device that boasts Bluetooth connectivity to the user’s smartphone/tablet via the Fluke Connect app. This allows it to project readings directly to the user’s smartphone or tablet where data can be analysed and forwarded. An additional advantage of Fluke Connect is that the user can leave a meter connected to a system and then observe outputs from a safe distance.

As far as measurement is concerned, the Fluke 375 FC can take accurate readings for AC/DC current (600A), AC/DC voltage (1000V), frequency (500Hz), resistance (60kΩ) and capacitance (1000µF). There is also an option for continuity testing whilst true RMS measurement helps keep AC readings accurate. Inrush measurement allows readings to be taken for current during system start-up and a low pass filter helps accurately assess motor drives.

Results are shown on the Fluke 375 FC’s backlit, digital screen as well as on the user’s smartphone. There are options for min/max/avg recording and data hold so the device gives a comprehensive overview of system outputs. The 34mm jaw has simple trigger operation whilst the measurement type is set with a dial.

The Fluke 375 FC is compatible with the Fluke iFlex Flexible Current Probe which can measure frequency and AC current up to 2500A as well as bringing greater access to awkward or cramped wiring. The inputs are safety-rated as Cat III to 1000V and Cat IV to 600V. The product provides a great way of taking and sharing accurate electrical readings and comes supplied with test leads and a soft carry case.

Fluke part number: 375FC

Fluke Connect App

The free Fluke Connect App is available on both Android and iOS smartphones and tablets and allows the user to instantly upload results from Fluke smart devices to the FlukeCloud database. This database can be accessed via the app from anywhere in the world so it not only provides a handy, smart database, it also allows colleagues to check and analyse data even when they are not on site.

Fluke 375 FC Key Features

  • AC/DC current: 600A
  • AC/DC voltage: 1000V
  • Frequency: 500Hz
  • Resistance: 60kΩ
  • Capacitance: 1000µF
  • True RMS
  • Continuity test
  • Inrush current measurement
  • Low pass filter
  • Backlit LCD screen
  • 34mm jaw with trigger operation
  • Cat III 1000V, Cat IV 600V
  • Bluetooth connection to Fluke Connect app on smartphone/tablet

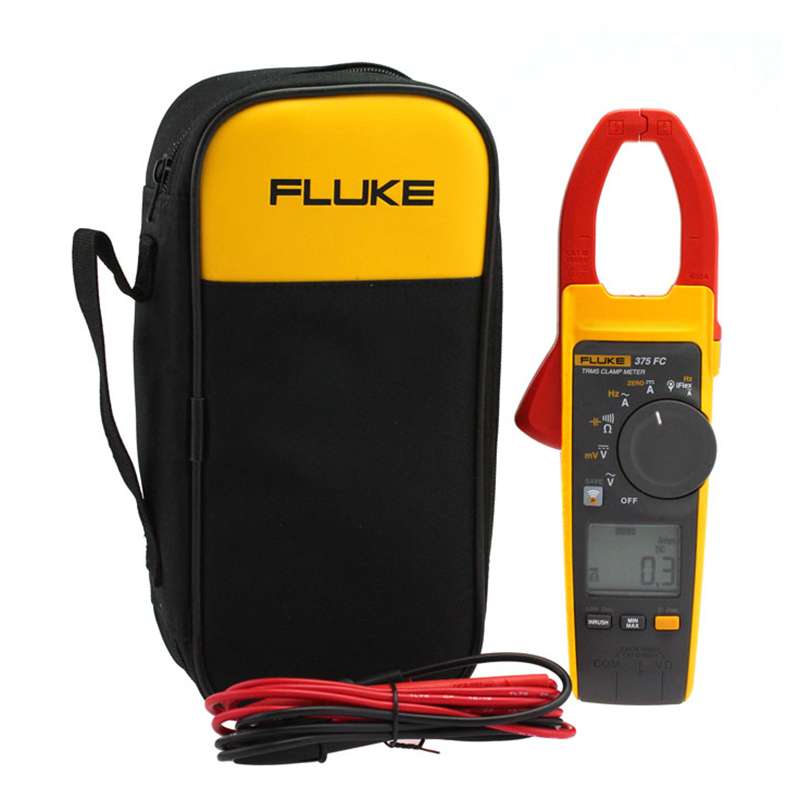

What’s In The Box?

  • Fluke 375 FC True RMS AC/DC Clamp Meter
  • Instruction booklet for Fluke 375 FC True RMS AC/DC Clamp Meter
  • Red/black test leads
  • Soft carry carry case
More Information
Specification AC Current via Hard Jaw

  • Range: 999.9A
  • Resolution: 0.1A
  • Accuracy: 2% ± 5 digits (10-100Hz); 5% ± 5 digits (100-500Hz)
  • Crest factor (50/60Hz): 3 @ 500A; 2.5 @ 600A; 1.42 @ 1000A; Add 2% for C.F. > 2

AC Current via Flexible Current Probe

  • Range: 999.9 / 2500A (45Hz – 500Hz)
  • Resolution: 0.1A / 1A
  • Accuracy: 3% ± 5 digits
  • Crest factor: 3.0 at 1100A; 2.5 at 1400; 1.42 at 2500A; Add 2% for C.F. > 2

DC Current

  • Range: 999.9A
  • Resolution 0.1A
  • Accuracy: 2% ± 5 digits

AC Voltage

  • Range: 600V / 1000V
  • Resolution: 0.1V / 1V
  • Accuracy: 1.5% ± 5 digits (20 – 500Hz)

DC Voltage

  • Range: 600V / 1000V
  • Resolution: 0.1V / 1V
  • Accuracy: 1% ± 5 digits

Frequency via Hard Jaw

  • Range: 5 to 500Hz
  • Resolution: 0.1Hz
  • Accuracy: 0.5% ± 5 digits
  • Trigger level: 5 to 10Hz (≥10A); 10 to 100Hz (≥5A); 100 to 500 Hz (≥10A)

Frequency via Flexible Current Probe

  • Range: 5 to 500Hz
  • Resolution: 0.1Hz
  • Accuracy: 0.5% ± 5 digits
  • Trigger level: 5 to 20Hz (≥25A); 20 to 100Hz (≥20A); 100 to 500Hz (≥25A)

Resistance

  • Range: 600Ω / 6kΩ / 60kΩ
  • Resolution: 0.1Ω / 1Ω / 10Ω
  • Accuracy: 1% ± 5 digits

General

  • Dimensions (L x D x W): 277mm x 88mm x 43mm
  • Weight: 350g
  • Jaw opening: 34mm
  • Flexible current probe diameter: 7.5mm
  • Flexible current probe coil circumference: 18″
  • Flexible current probe cable length: 1.8m
  • Fluke 375 FC True RMS AC/DC Clamp Meter
  • Instruction booklet for Fluke 375 FC True RMS AC/DC Clamp Meter
  • Red/black test leads
  • Soft carry carry case
