Fluke 1550C FC 5kV Digital Insulation Tester with Fluke Connect

Fluke

£3,250.00 / £3,900.00 incl VAT

Select test voltages up to 5 kV (1550C) and save time by trending on the spot using Fluke Connect
⚡  CAT III 1000 V, CAT IV 600 V safety rating
⚡ Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
⚡  Reduce paperwork while creating an auditable data trail by wirelessly storing results in Fluke Connect
⚡ Long battery life gives the user over 750 tests between charges
⚡ 3-year warranty
Price Pledge

Calibration Certificate

Add Calibration to your Insulation Tester.

Description

Fluke 1550C FC 5kV Digital Insulation Tester with Fluke Connect

The NEW Fluke 1550C FC is a 5kV insulation tester that supersedes the old Fluke 1550B model. This high voltage, digital insulation tester is ideal for testing a wide range of cables, high voltage equipment including switchgear, motors and generators.

With the new Fluke 1550C FC insulation tester, you can now carry out tests up to 5kV as specified in IEEE 43-2000. The Fluke 1550C FC also has a CAT IV 600V safety rating, and is backed with a 3 year warranty. Test results can be stored to internal memory and downloaded to PC software, assisting with predictive and preventative maintenance programs, designed to identify potential faults before they occur.

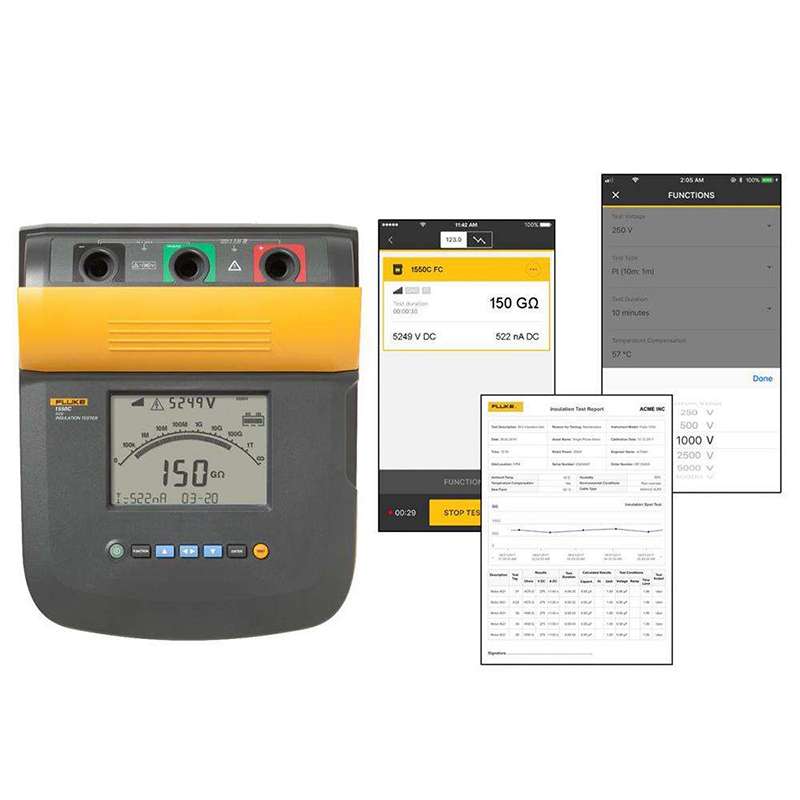

The Fluke 1550C FC performs digital insulation testing up to 5 kV, and makes data collection easy through the Fluke Connect™ wireless app. Remote operation lets you spend as little time as possible in potentially hazardous zones. Real-time trending shows a live graph on your phone, rather than a hard-to-read set of changing values. And you can create reports quickly, using pre-designed templates that you can customize with company logos. It’s the perfect tool for preventive or predictive maintenance programs designed to identify potential equipment failures before they occur. And it comes with a three-year warranty and CAT IV 600 V safety rating.



Other useful features

  • Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
  • Guard system eliminates the effect of surface leakage current on high-resistance measurements
  • Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
  • CAT III 1000 V, CAT IV 600 V safety rating
  • Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
  • Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
  • Long battery life gives the user over 750 tests between charges
  • Large digital/analog LCD for easy viewing
  • Capacitance and leakage current measurement
  • Ramp function for breakdown testing
  • Resistance measurements up to 2 TΩ
  • Timer settings up to 99 minutes for timed tests
  • 3-year warranty

What’s in the box:

  • Test Cables with Alligator Clips (red, black, green)
  • Fluke IR3000-1550 FC Connector – making this tester FC Compatible
  • Test probes Red & Black
  • Infrared adapter with interface cable
  • AC Power Cord
  • Soft Carrying Case
  • Quick Reference Card
  • USB-IR Cable Installation Guide
  • Fluke Connect IR to Wireless Connector

PLEASE CLICK HERE FOR DATA SHEET AND SPECIFICATIONS:

1550C FC & 1555FC insulation testers

PLEASE CLICK HERE FOR DATA SHEET AND SPECIFICATIONS:

1550C & 1555 insulation testers

What’s in the box:

  • What’s in the box:

  • Test Cables with Alligator Clips (red, black, green)
  • Fluke IR3000-1550 FC Connector – making this tester FC Compatible
  • Test probes Red & Black
  • Infrared adapter with interface cable
  • AC Power Cord
  • Soft Carrying Case
  • Quick Reference Card
  • USB-IR Cable Installation Guide
  • Fluke Connect IR to Wireless Connector
