Fluke 1664FC/FEV300 Multifunction Installation Tester with FEV300/Type 2 EV Charging Station Simulator Test Adapter Kit

Fluke

Original price was: £1,659.00.Current price is: £1,449.00. / £1,738.80 incl VAT

⚡ Simulate current capabilities of charging cables
⚡ Simulate various vehicle charging states
⚡ Simulate earth fault
⚡ Includes  Type 2 plug vehicle connector

In stock

Price Pledge

Description

Fluke 1664FC/FEV300 Multifunction Installation Tester with Fluke FEV300/Type 2 EV Charging Station Simulator Test Adapter Kit

Product Details:

Fluke 1664 FC is the only multifunction installation tester that protects connected appliances from damage during insulation tests and allows you to share your test results wirelessly by smartphone with coworkers or customers. Fluke’s patented Insulation PreTest stops you from performing tests with appliances that are connected to the system during the test. This helps eliminate accidental damage and keeps your customers happy.

In addition, the Fluke 1664 FC offers you the power of Fluke Connect. Now you can send test results straight from your Fluke 1664 FC to your smartphone, and transmit those results to other members of your team. You can get feedback, suggestions and even have work orders sent to your job site. You can also save your test results to Fluke Cloud™ storage.



Fluke 1664FC Key Features:

  • Voltage terms (ac and dc) and frequency
  • Insulation-PreTest safety function
  • Insulation at L-N, L-PE, N-PE inputs
  • Auto Test sequence
  • Loop and line resistance – mΩ resolution
  • Continuity at L-N, L-PE, N-PE inputs
  • Test smooth dc sensitive RCDs (Type B/B )
  • Earth resistance
  • The wiring polarity checker detects broken PE and N wires
  • Insulation resistance
  • Continuity and resistance
  • Measure motor windings with continuity test (@ 10 mA)
  • Loop and line resistance
  • Prospective Earth Fault Current
  • Prospective Short-Circuit Current
  • RDC trip time
  • RCD trip current (ramp test)
  • Measures trip time and current for RCD type A and AC in one test
  • RCD variable test current
  • Automatic RCD test sequence
  • Phase sequence test
  • On/Off switchable Auto Start for RCD and Loop test
  • Self-test
  • Illuminated display
  • Z Max Memory
  • IR-USB and BLE interface
  • Fluke Connect compatibility
  • ShareLive calling
  • Fluke Cloud storage

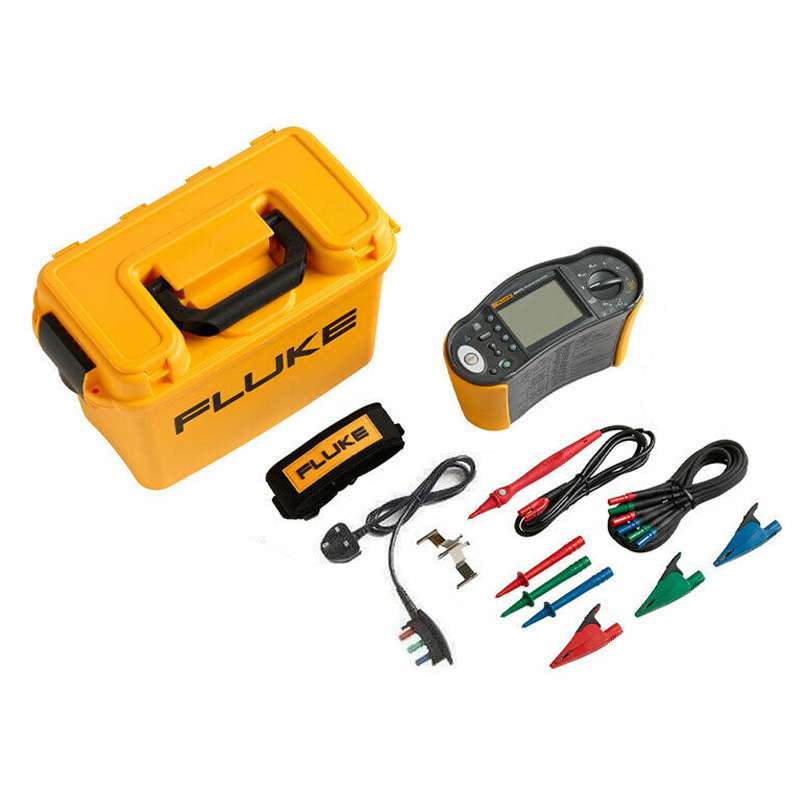

What’s Included:

  • Fluke 1664FC Multifunction Installation Tester
  • FEV300/Type 2 EV Charging Station Simulator Test Adapter Kit + Soft Carry Case
  • 6x AA (IEC LR6) cell batteries
  • C1600 hard carrying case
  • Zero adapter – to null your test leads
  • Unfused Test lead set including 3x test leads, 3x test probes, 3 Croc clips
  • Set of 3 Fused Test probes
  • Fluke 166X-Mains Socket Test Cord (UK)
  • Padded neck strap
  • Quick reference guide
  • TP165X remote control probe and lead
  • User’s manual on CD-ROM
  • 3 Year Fluke Warranty

Fluke 1600 Series Multifunction Testers Data Sheet

Click Here:            166X SERIES MTF

Fluke FEV300/Type 2 EV Charging Station Simulator Test Adapter Kit

The FEV300 test adapter kit with Type 2 connector is designed to test function and safety of charging stations mode 3 for AC charging. The adapter imitates an electric vehicle and opens up a charging cycle, activating voltage and current output, allowing you to conduct tests in combination with appropriate test instruments like an installation tester (Fluke 1664 FC) and/or a ScopeMeter® (Fluke 120B Series). With the adapter kit, charging stations can be tested in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722.

  • Proximity Pilot (PP) state “Cable Simulation”: With PP State rotary switch the adapter can simulate various current capabilities of charging cables
  • Control Pilot (CP) state “Vehicle Simulation”: With CP State rotary switch selector various charging states can be simulated
  • Simulation of CP error “E”, simulation of PE error (Earth fault)

Simplicity and convenience

Perform a variety of tests including ground fault checks, insulation of wires, measuring voltage and duty cycle to see max current available for charging all in one adapter that safely integrates with the Fluke portfolio of test and measurement tools. The FEV300 allows you to simulate CP (E) and PE (Earth Fault) error and includes separate phase indication by three LED lamps for easy check if voltage is present. There is no need to bring an electric vehicle onsite for charging station troubleshooting: the adapter acts as an electric vehicle when connected to a charging station for easy performance and maintenance testing.

Compatible products:

Specifications: Fluke FEV300 EV Charging Station Test Adapter Kit: Type 1 & 2 Connectors

General features
Input voltage Up to 250 V (single phase system) / up to 480 V (three phase system), 50/60 Hz, max 10 A
Internal power consumption 3 W max.
FEV300-CON-TY2 Plug AC charging mode 3, suitable to IEC 62196-2 type 2 socket outlet or fixed cable with vehicle connector (type 2, 7P three-phase)
FEV300-CON-TY1 Plug AC charging mode 3, suitable to IEC 62196-2 type 1 or SAE J1772 with vehicle connector (type 1, 5P single-phase)
Dimensions (H × W × D) 110  × 45  × 220 mm length without connection cable and test cable
Weight (including type 1 or type 2 connection cable) Approx. 1 kg
Safety standards IEC/EN 61010-1, pollution degree 2
IEC/EN 61010-2-030, CAT II 300 V, protection class II
Ingress protection IEC 60529: IP54 (housing)
IEC 60529: IP54 (sockets with protection caps in place, connectors in connected condition or with protection caps in place, otherwise IP20)
Operating temperature -20 °C to 40 °C
Storage temperature -20 °C to 50 °C
Operating humidity range 10 % to 85 % relative humidity non-condensing
Storage relative humidity 0 % to 85 % non-condensing
Operating altitude 2000 m max.
Functions
PE Pre-Test Visible indication >50 V AC/DC between PE conductor and touch sensor
PP Simulation Open, 13 A, 20 A, 32 A, 63 A
CP States State A, B, C, D
CP Error state “E” On/off (CP signal short-circuited to PE)
PE Error state “F” (Earth fault) On/off (interruption of PE conductor)
Outputs (for test purpose only)
Measuring terminals L1, L2, L3, N, PE Max. 250/480 V, max. 10 A
CP signal output terminals Approx. +/-12 V
Caution: In case of wrong wiring or error of the charging station these terminals may be hazardous.
  • FEV300/BASIC Test Adapter
  • FEV300-CON-TY2 Type 2 Plug
  • Carrying case
