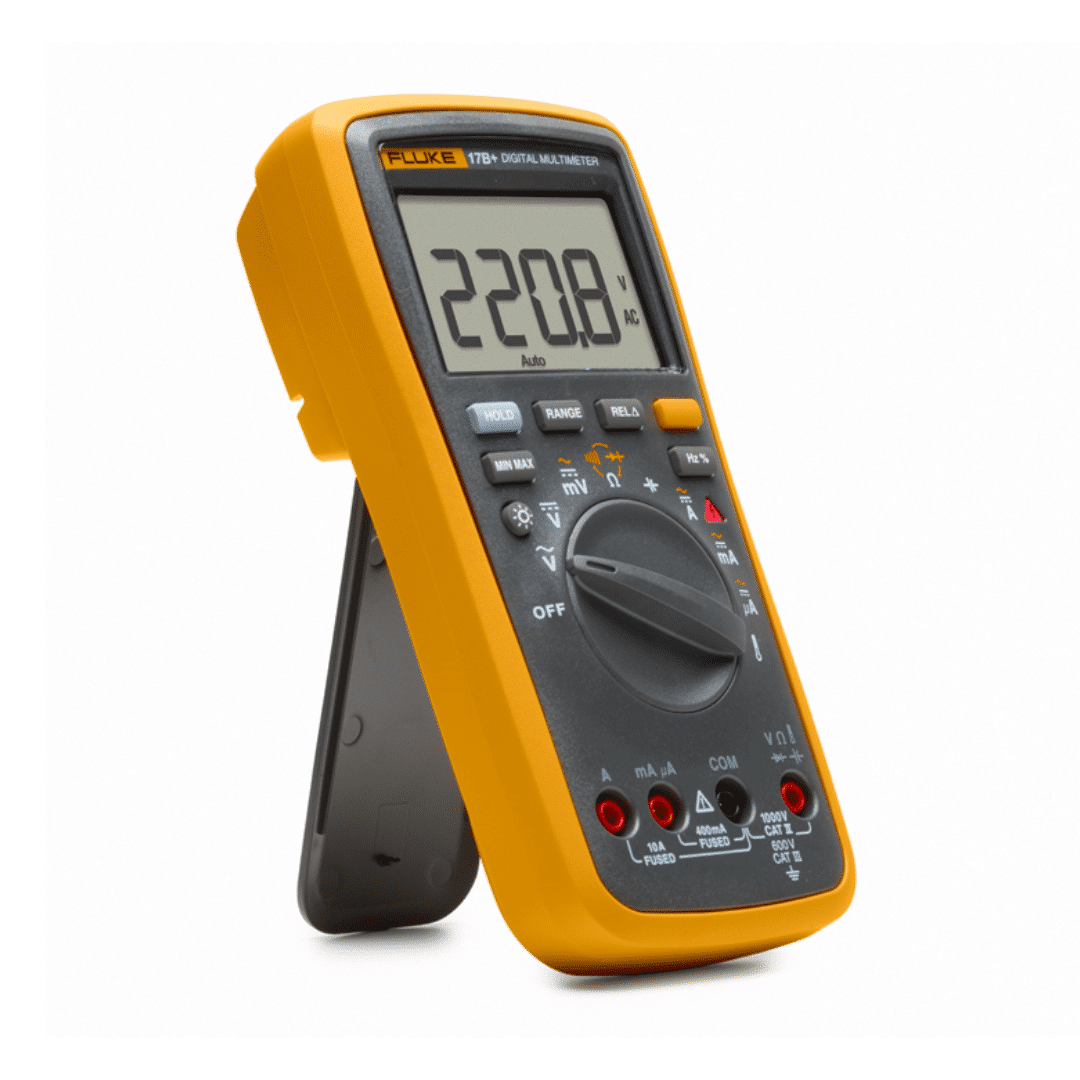

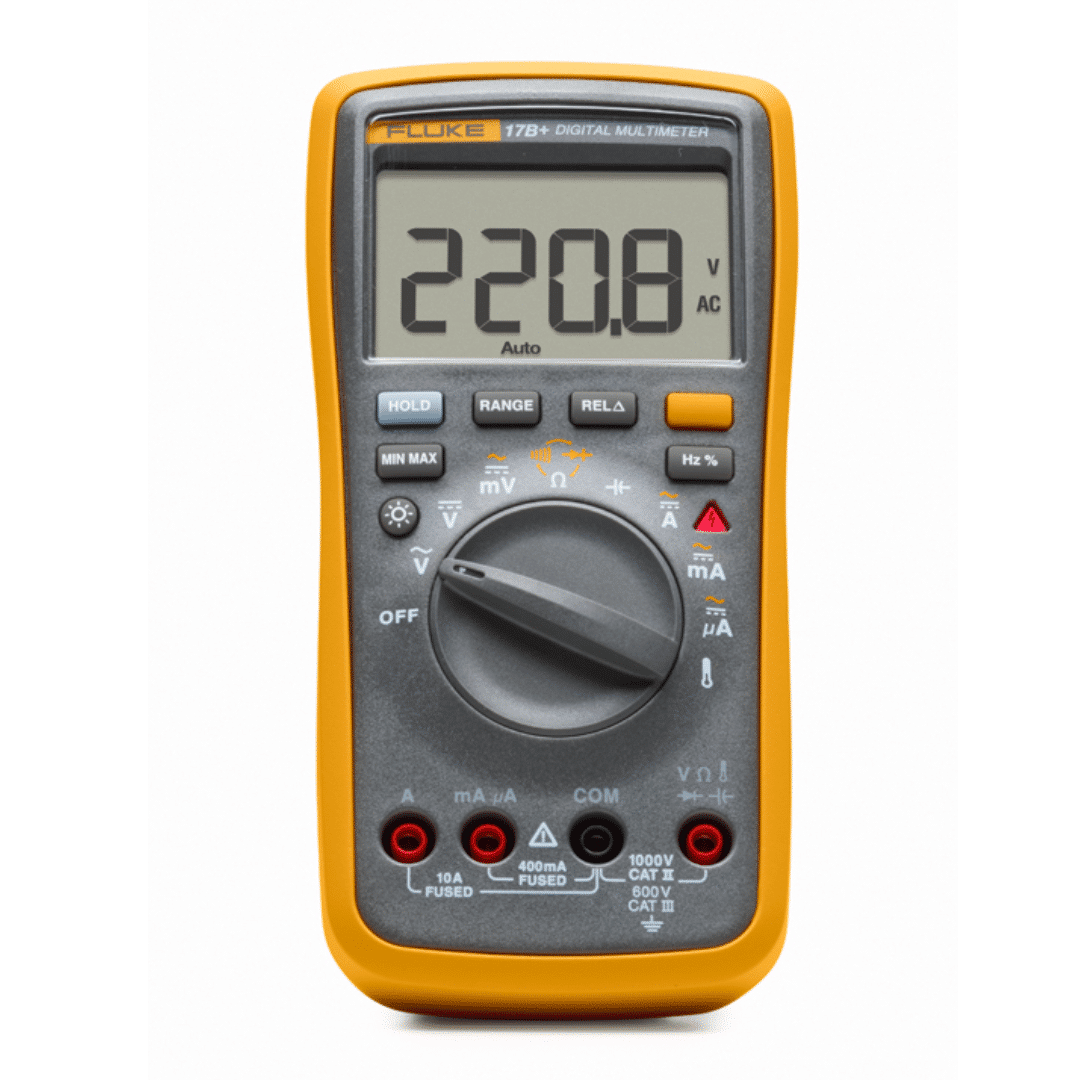

Fluke 17B+ Digital Multimeter


Original price was: £131.00.£110.00Current price is: £110.00. / £132.00 incl VAT
- CAT III 600 V safety rating
- Large, easy-to-read display with bright white backlight
- Over-voltage indicator
- Frequency and temperature measurement
- Voltage, resistance, continuity, capacitance
- Input terminal for ac and dc current measurements
to 10 A current - Diode test, data hold
- 2 Year Warranty
In stock
Description
Fluke 17B+ Digital Multimeter
The Fluke 17B+ Digital Multimeter offers a comprehensive solution for electricians and technicians requiring precise, reliable measurements across a wide range of electrical applications. Building on the trusted performance of the Fluke 15B+, the 17B+ introduces advanced measurement functions including frequency and temperature, enabling greater diagnostic capabilities on the job.
Key Features:
- Measures AC/DC voltage up to 1000 V and current up to 10 A
- 6000-count backlit display for clear visibility in low-light environments
- CAT III 600 V safety rating with built-in overload protection
- Measures voltage, current, resistance, continuity, capacitance, frequency, and temperature
- Includes continuity buzzer and diode testing functions
- Auto and manual range selection for flexibility and precise measurements
- Data hold function to freeze readings for easy reference
- Compact, durable casing with ergonomic design for professional use

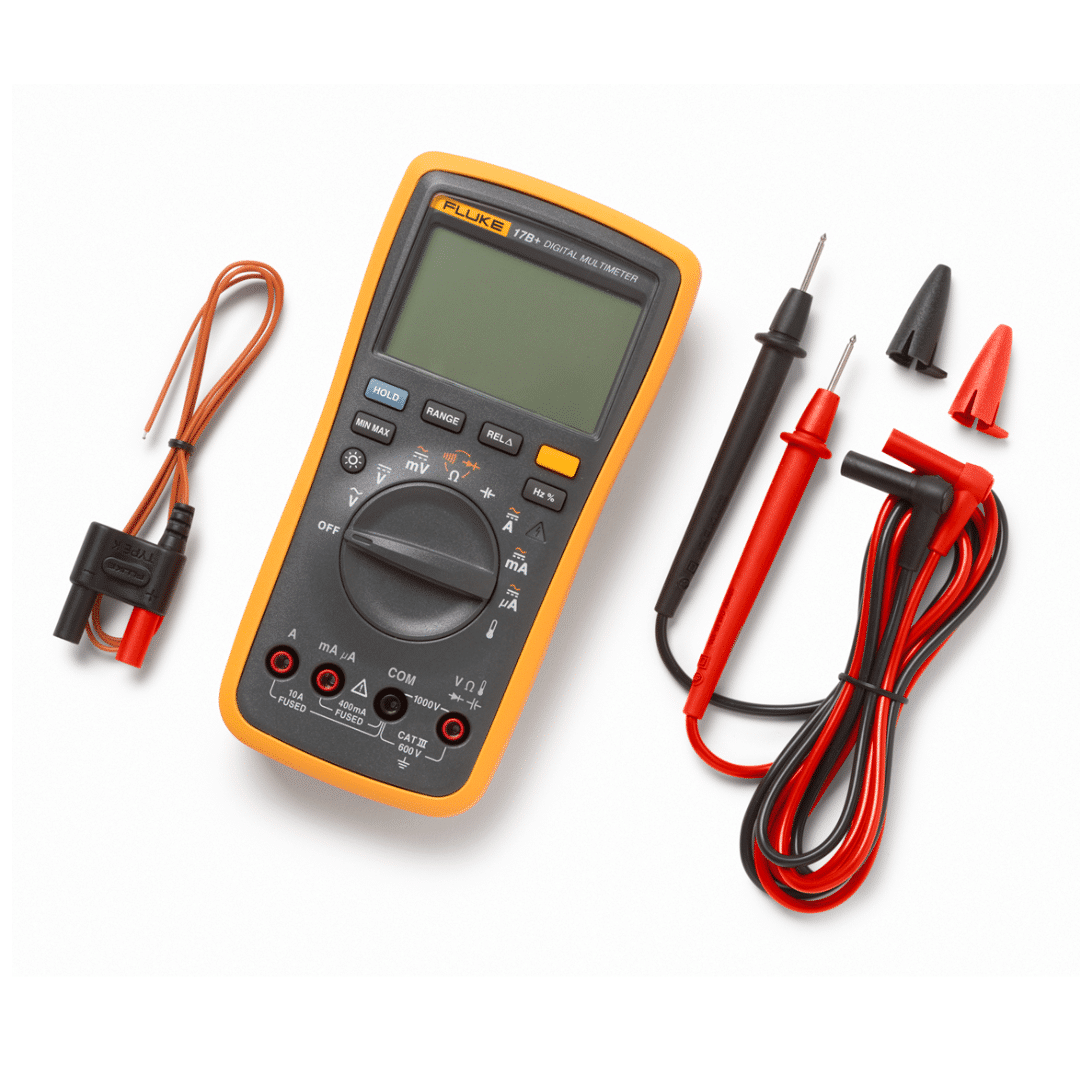

What’s Included:
- Fluke 17B+ Digital Multimeter
- Test leads with safety caps
- Type K thermocouple temperature probe
- 2 AA batteries
- 2-year warranty
Digital Multimeter Product Comparison
| Feature | Fluke 107 | Fluke 15B+ | Fluke 17B+ | Fluke 113 | Fluke 115 | Fluke 117 |
|---|---|---|---|---|---|---|
| True-RMS | ✘ | ✘ | ✘ | ✔ | ✔ | ✔ |
| Voltage AC/DC | 600 V | 1000 V | 1000 V | 600 V | 600 V | 600 V |
| Basic DC Accuracy | ±0.5% + 3 | ±0.5% + 3 | ±0.5% + 3 | ±0.5% + 2 | ±0.5% + 2 | ±0.5% + 2 |
| Current AC/DC | 10 A | 10 A | 10 A | ✘ | 10 A | 10 A |
| Resistance | 40 MΩ | 40 MΩ | 40 MΩ | 60 kΩ | 40 MΩ | 40 MΩ |
| Continuity | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Capacitance | 1000 µF | 1000 µF | 1000 µF | 9999 µF | 9999 µF | 9999 µF |
| Frequency | 100 kHz | ✘ | 100 kHz | ✘ | 100 kHz | 100 kHz |
| Diode Test | ✔ | ✔ | ✔ | ✘ | ✔ | ✔ |
| Relative Measurements | ✘ | ✘ | ✔ | ✘ | ✘ | ✘ |
| Temperature | ✘ | ✘ | ✔ | ✘ | ✘ | ✘ |
| Backlit Display | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Safety Rating | CAT III 600 V | CAT III 600 V | CAT III 600 V | CAT III 600 V | CAT III 600 V | CAT III 600 V |
| Warranty | 2 Year | 2 Year | 2 Year | 3 Year | 3 Year | 3 Year |
✔ = Supported | ✘ = Not Supported
| Function | Range | Resolution | Accuracy (17B+) |
|---|---|---|---|
| AC Voltage (40 Hz to 500 Hz) | 4.000 V / 40.00 V / 400.0 V / 1000 V | 0.001 V to 1 V | ±1.0% + 3 |
| DC Voltage | 4.000 V / 40.00 V / 400.0 V / 1000 V | 0.001 V to 1 V | ±0.5% + 3 |
| AC Millivolts | 400.0 mV | 0.1 mV | ±3.0% + 3 |
| DC Millivolts | 400.0 mV | 0.1 mV | ±1.0% + 10 |
| Diode Test² | 2.000 V | 0.001 V | ±10% |
| Resistance (Ohms) | 400.0 Ω to 40.00 MΩ | 0.1 Ω to 0.01 MΩ | ±0.5% + 2 to ±1.5% + 3 |
| Capacitance³ | 40.00 nF to 1000 μF | 0.01 nF to 1 μF | ±2% + 5 to ±5% + 5 |
| Frequency¹ (10 Hz to 100 kHz) | 50.00 Hz to 100.0 kHz | 0.01 Hz to 0.1 kHz | ±0.1% + 3 |
| Duty Cycle¹ | 1% to 99% | 0.1% | 1% typical⁴ |
| AC Current (μA) | 400.0 μA / 4000 μA | 0.1 μA / 1 μA | ±1.5% + 3 |
| AC Current (mA) | 40.00 mA / 400.0 mA | 0.01 mA / 0.1 mA | ±1.5% + 3 |
| AC Current (A) | 4.000 A / 10.00 A | 0.001 A / 0.01 A | ±1.5% + 3 |
| DC Current (μA) | 400.0 μA / 4000 μA | 0.1 μA / 1 μA | ±1.5% + 3 |
Fluke 17B+ Digital Multimeter
Test leads with safety caps
Type K thermocouple temperature probe
2 AA batteries
2-year warranty
