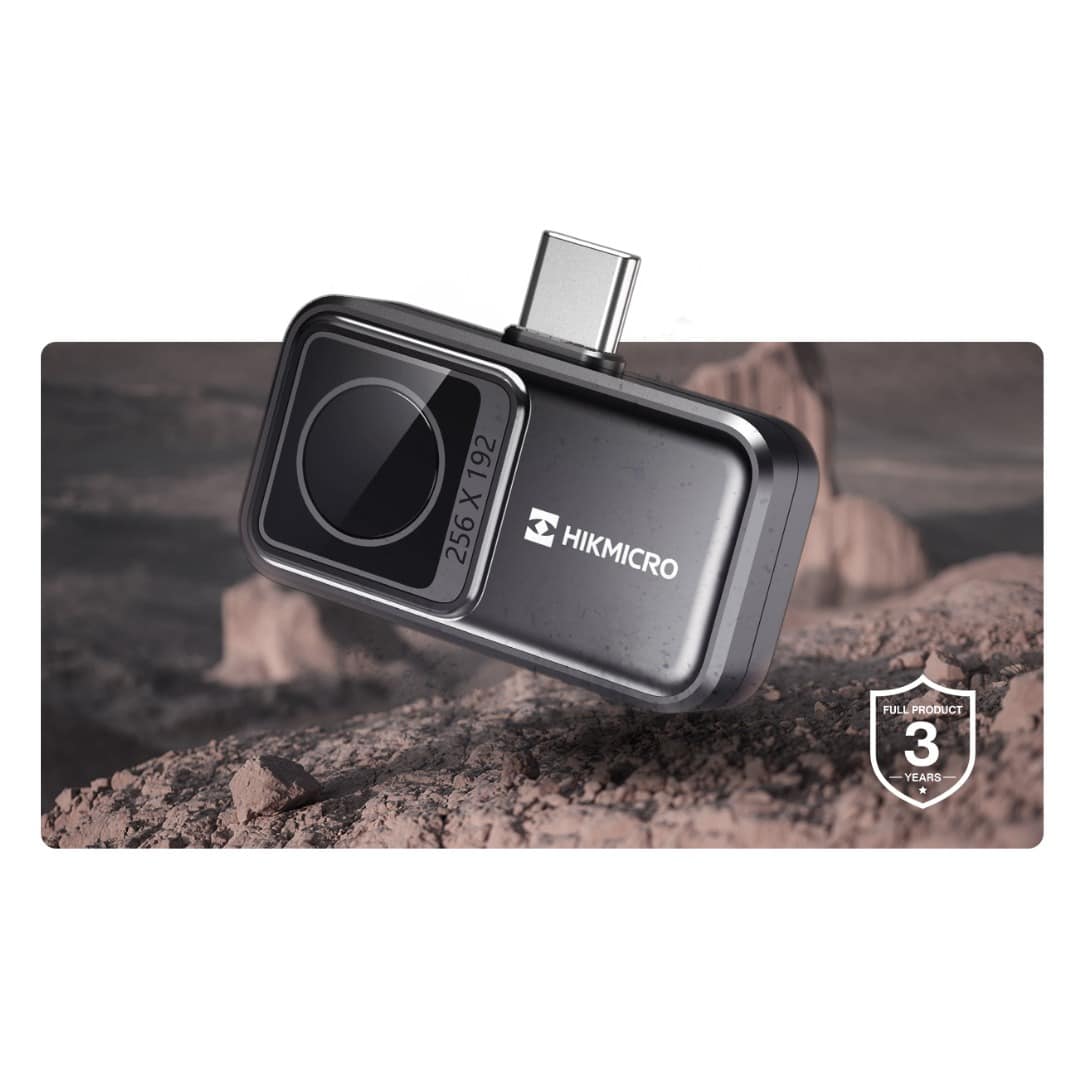

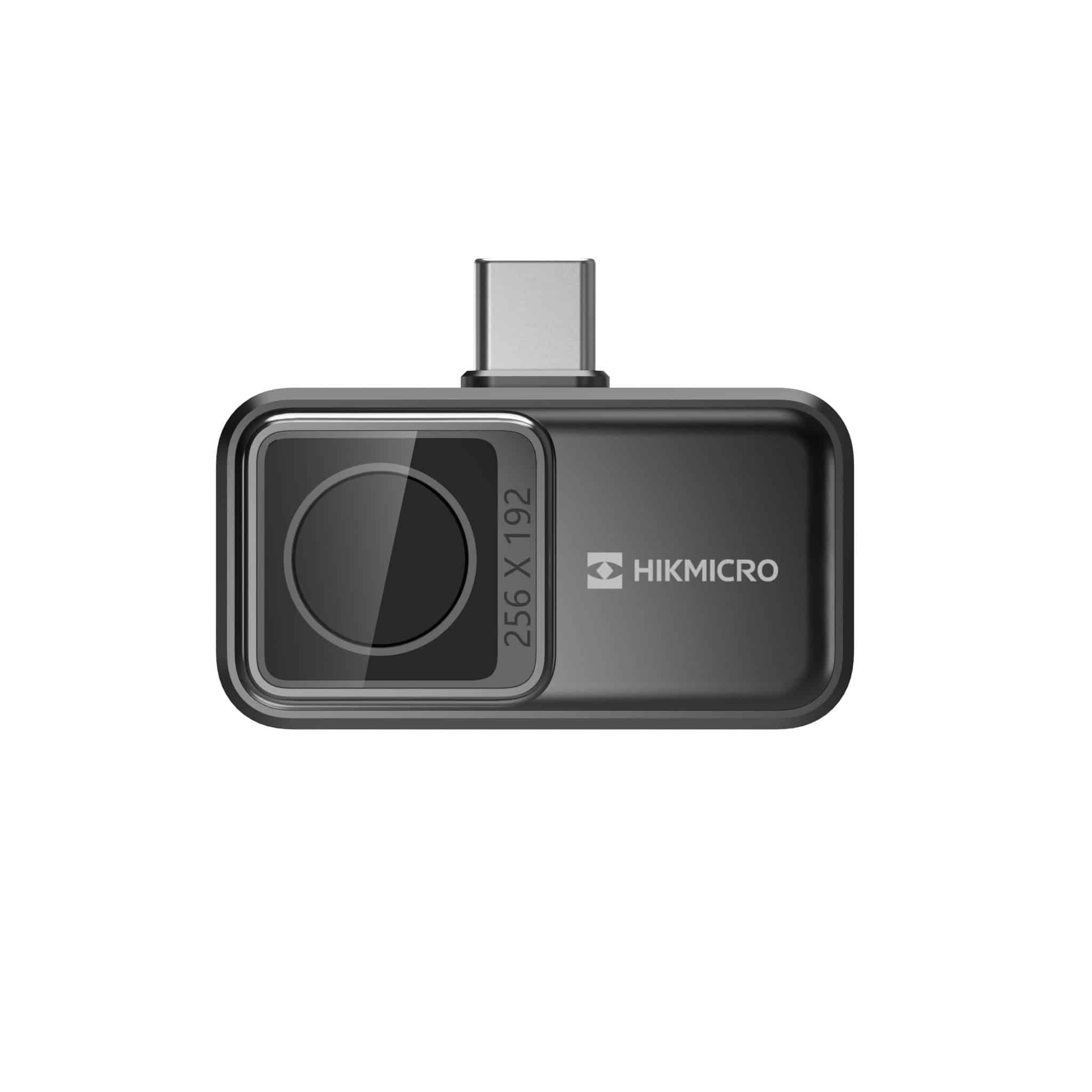

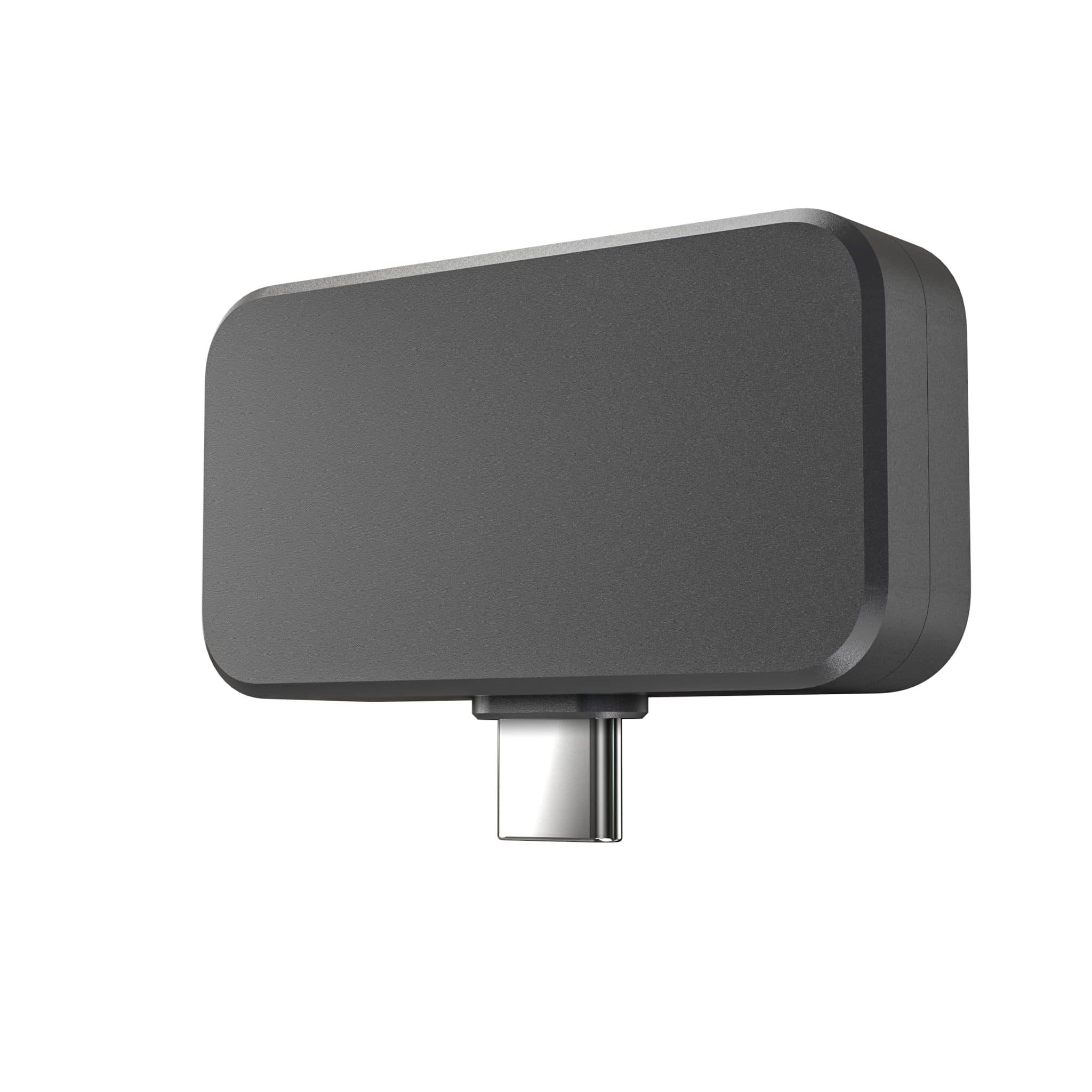

Hikmicro Mini2 V2 for iOS and Android
£209.00 / £250.80 incl VAT
High-Resolution thermal imaging
Wide 50° Field of View
USB-C and Lightning connectivity for iOS and Android
Battery-free operation
3-year warranty
Only 1 left in stock (can be backordered)
Description
Hikmicro Mini2 V2 for iOS and Android
The Mini2 V2 is a compact smartphone thermal camera designed for home inspection, HVAC troubleshooting and general thermal diagnostics. With high-resolution thermal imaging, SuperIR enhancement technology and accurate temperature measurement, it allows users to quickly identify heat anomalies and potential problem areas.
Compatible with both iOS and Android devices, including the latest smartphone models, the Mini2 V2 offers convenient thermal inspection on the go. The included Lightning to USB-C adapter ensures compatibility with older iPhone devices while maintaining modern connectivity.
Whether for professional field work or home maintenance, the Mini2 V2 provides a practical and reliable thermal imaging solution.
Key Features
• Thermal resolution: 256 × 192 (49,152 pixels)
• SuperIR image enhancement technology for live view and captured images
• 3-in-1 connectivity – USB-C (iOS & Android) and Lightning support (includes Lightning to USB-C adapter)
• NETD: <40 mK (@ 25°C, F# = 1.0) for high thermal sensitivity
• Temperature accuracy: ±2°C (-20°C to 100°C); ±2% (100°C to 400°C)
• Ultra-lightweight design – only 20 g
What’s Included
• HIKMICRO Mini2 V2 Thermal Camera
• Lightning to USB-C Adapter

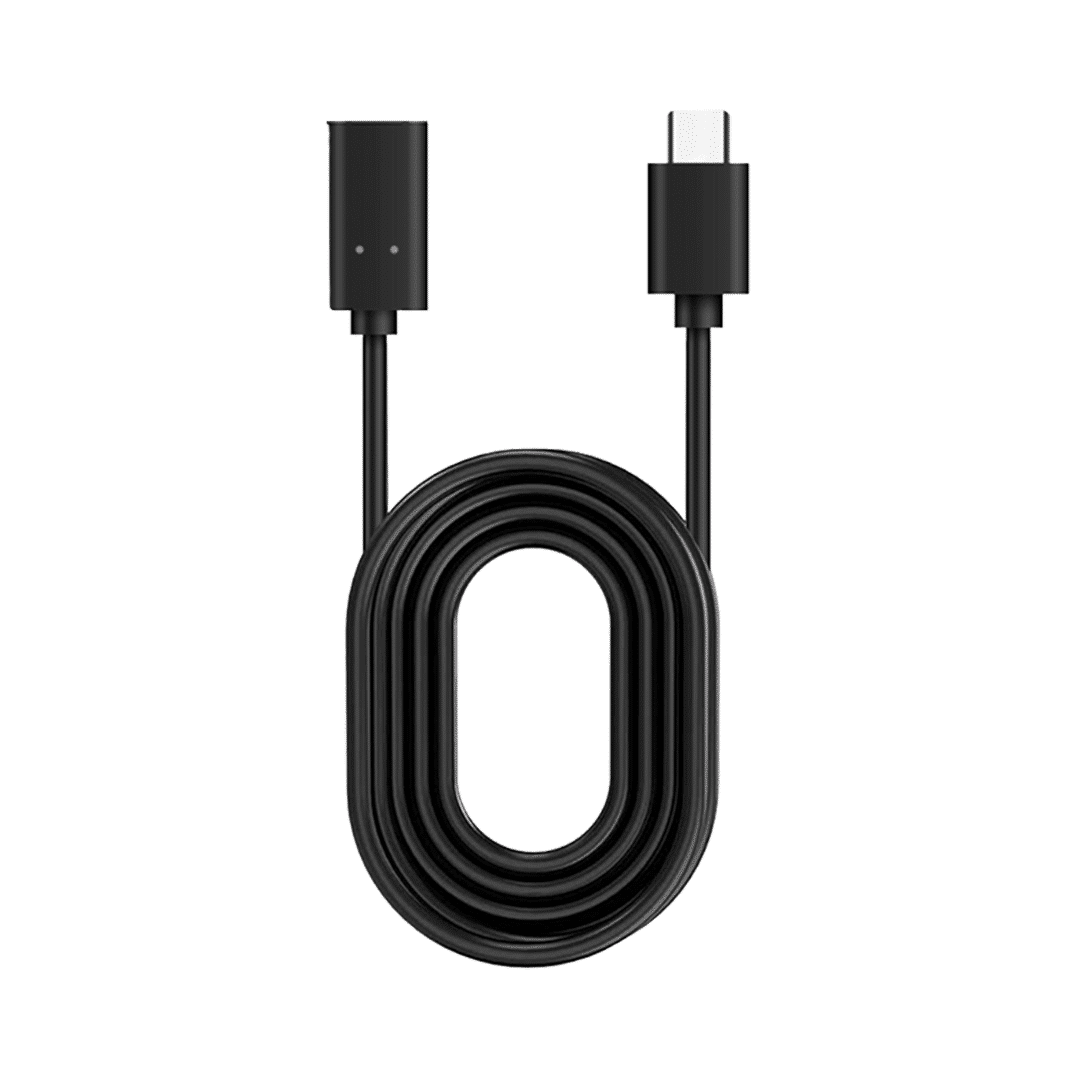

• Extension Cable
• Adapter for Thick Phone Cases
• Protective Carry Case
• Quick Start Guide / User Manual
• 3-Year Warranty
| Category | Details |
|---|---|
| Infrared Image | |
| IR Resolution | 256 × 192 (49,152 pixels) |
| SuperIR | Yes – available on captured images and live view |
| NETD | < 40 mK (@ 25°C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 3.5 mm |
| F-number | F1.0 |
| Field of View (FOV) | 50° × 37.2° |
| Minimum Focus Distance | 0.2 m (0.66 ft) |
| Focus Mode | Focus-Free |
| Image Display | |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined |
| Image Modes | Thermal, Picture-in-Picture (PIP) |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 400°C (-4°F to 752°F) |
| Accuracy | Max (±2°C / ±3.6°F, ±2%) for ambient temperature 15°C–35°C (59°F–95°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot; user-definable – 3 spots, 3 rectangles, and 1 line |
| Level and Span Mode | Auto / Manual |
| General | |
| Power Consumption | 360 mW |
| Interface | USB-C Android, USB-C iOS, Lightning iOS (includes Lightning to USB-C adapter) |
| Device Compatibility | iOS (version 14+), Android (version 7+), and Windows devices |
| Software Compatibility | HIKMICRO Viewer app (iOS & Android), HIKMICRO Analyzer (Windows) |
| Protection Level | IP40 |
| Drop Test Height | 1 m (3.28 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |

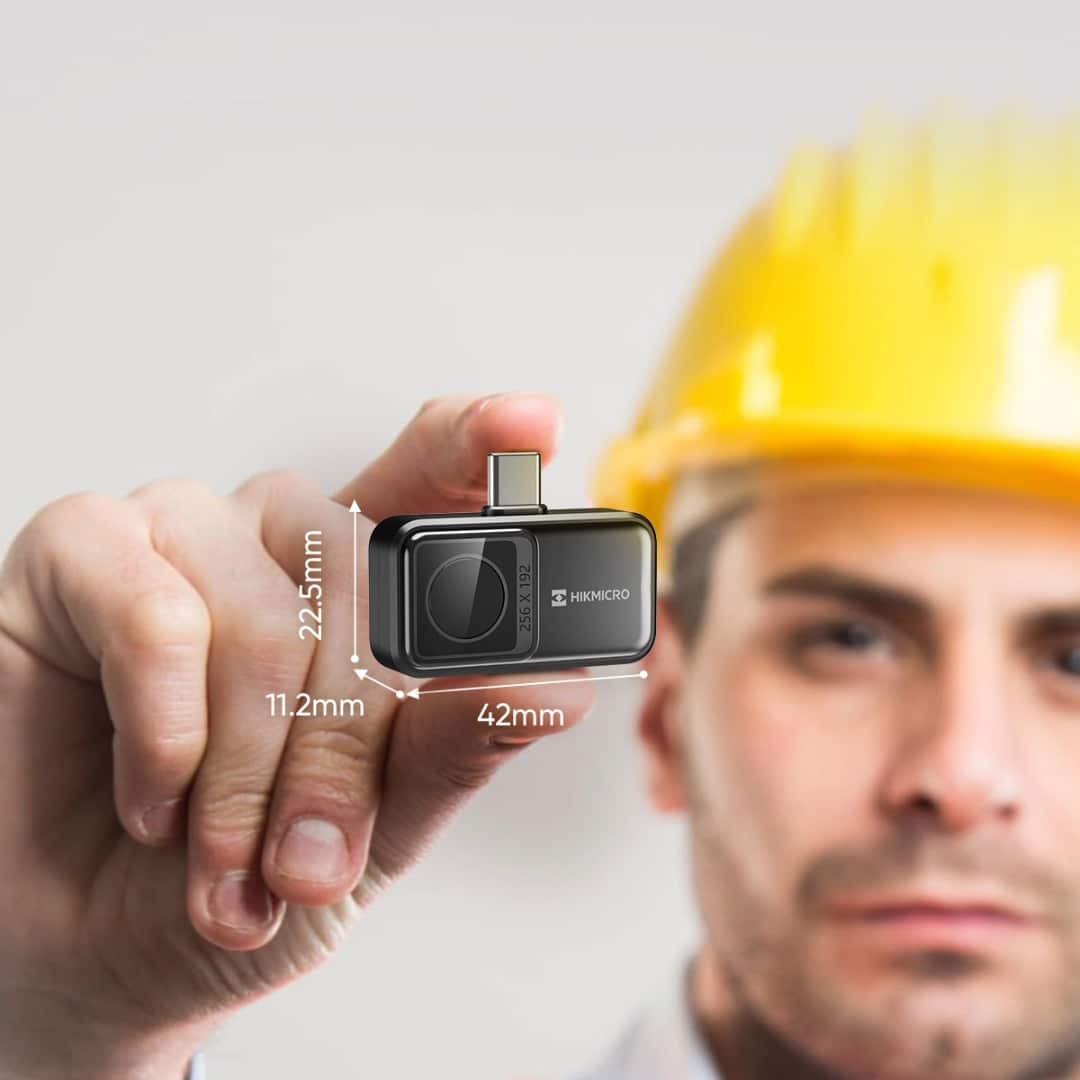

| Dimensions | 42 × 22.5 × 11.2 mm (1.65 × 0.89 × 0.44 in) |
| Weight | Approx. 20 g (0.044 lb) |
- HIKMICRO Mini2 V2 Thermal Camera
- Lightning to USB-C Adapter
- Extension Cable
- Adapter for Thick Phone Cases
- Protective Carry Case
- Quick Start Guide / User Manual
- 3 Year Warranty
