Testo 865s Thermal Imaging Camera

Testo

£704.00 / £844.80 incl VAT

⚡ 160 x 120 pixel thermal sensor with -20˚C to 280˚C temperature range
⚡ Simple point-and-click operation is ideal for novice users
⚡ Adjustable emissivity and ScaleAssist provide accurate, useful imaging and video
⚡ Vibrant colour screen
Price Pledge

Description

Testo 865s Thermal Imaging Camera

Product Description:

The Testo 865s Thermal Imaging Camera is an ideal entry-level thermal camera because of its combination of point-and-click simplicity and high-performance thermography and thermal video. The 160 x 120 pixel thermal sensor measures temperature from -20˚C to 280˚C through non-contact infrared detection and has thermal sensitivity of 100mK so differences of just 0.12˚C are visible on screen. These thermographic capabilities make the camera suitable for detecting leaks, overheating components, thermal bridges and structural defects whilst the wide field of view (31˚ x 23˚) allows speedy inspections across buildings and production plants.

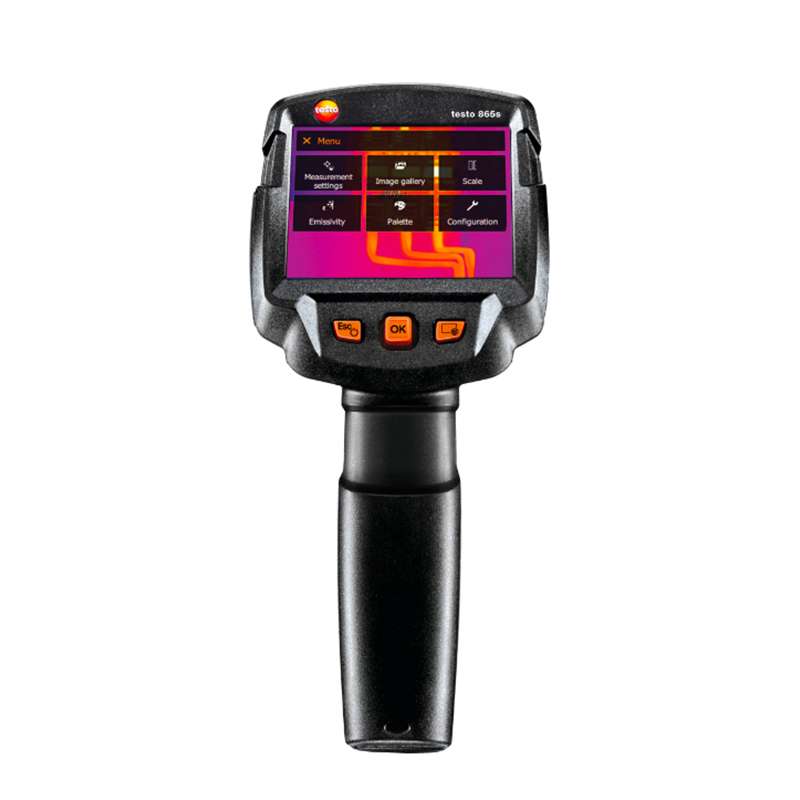

Thermal images are displayed on the Testo 865s’ vibrant colour screen which has a choice of four colour palettes and automatic cold/hot spot recognition. The camera can also calculate the mean point and can be upgraded with optional Testo SuperResolution software which artificially boosts resolution to 320 x 240 pixels to produce a really detailed thermal image. Automatic ScaleAssist sets an appropriate colour-to-temperature scale and an IFOV warning aids accuracy. The emissivity level can be set manually from 0.01 to 1 in order to compensate for absorbent or reflective surfaces. This all means that the 865s offers an accurate, usable thermal image.

A large 2.8GB internal memory can store thousands of images and these can be transferred to a PC via the supplied USB cable. With an IP54 ingress protection rating, the Testo 865s is unsuitable for use outdoors and is well-built in order to withstand the rigours of daily use. The four-hour life on the rechargeable battery is another useful feature when it comes to practical use. The camera is supplied with a USB cable, charging unit, calibration protocol and case as well as a two-year warranty.

Testo 865s vs 865

The 865s has received a number of important upgrades over its predecessor model, the 865. In the latest ’s’ model, you will find an improved thermal sensitivity (100mK vs 120mK) and better user interface for a superior user experience.

Testo 865s Testo 868s Testo 871s Testo 872s
Infrared resolution 160 x 120 pixels (320 x 240 with Super Resolution) 160 x 120 pixels (320 x 240 with Super Resolution) 240 x 180 pixels (480 x 360 with Super Resolution) 320 x 240 pixels (640 x 480 with Super Resolution)
Thermal sensitivity 100mK 80mK 80mK 50mK
Measuring range – 20 to +280 °C -30 to +650 °C -30 to +650 °C -30 to +650 °C
Field of View 31° x 23° 31° x 23° 35° x 26° 42° x 30°
App connection via wireless LAN
Integrated digital camera
IFOV warner
Testo ScaleAssist
Testo ε-Assist
Connection of Testo 605i & Testo 770-3 via Bluetooth
Laser marker



Key Features:

  • Thermal resolution: 160 x 120 pixel
  • Thermal sensitivity: 100mK
  • Temperature range: -20˚C to 280˚C
  • Field of view: 31˚ x 23˚
  • Four different colour palettes
  • Automatic ScaleAssist
  • Testo SuperResolution: 320 x 240 pixels
  • IFOV warning
  • Adjustable emissivity level
  • 2.8GB internal memory
  • Four-hour battery life
  • Two-year warranty

Testo part number: 0560 8651

What’s In The Box?

  • Testo 865s Thermal Camera
  • Testo SuperResolution Software
  • USB cable
  • Mains unit
  • Lithium-ion rechargeable
  • Battery
  • Quick-start guide
  • Short instructions,
  • Calibration protocol
  • Case
Infrared image output

  • Infrared resolution: 160 x 120 pixels
  • Thermal sensitivity (NETD): 100 mK
  • Field of view/min. focusing distance: 31° x 23° / < 0.5 m
  • Geometric resolution (IFOV): 3.4 mrad
  • Testo SuperResolution (Pixel/IFOV): 320 x 240 pixels / 2.1 mrad
  • Image refresh rate: 9 Hz
  • Focus: Fixed focus
  • Spectral range: 7.5 to14 µm

Image presentation

  • Image display: 8.9 cm (3.5″) TFT, QVGA (320 x 240 pixels)
  • Display options: IR image
  • Colour palettes: Iron, rainbow HC, cold-hot, grey

Data interfaces

  • USB 2.0 Micro B: Yes

Measurement

  • Measuring range: -20 to +280 °C
  • Accuracy: ±2 °C, ±2 % of measured value
  • Emissivity / reflected temperature compensation: 0.01 to 1 / manual

Measurement functions

  • Analysis functions: Mean point measurement, hot/cold-spot recognition, Delta T,
  • Testo ScaleAssist: Yes
  • IFOV warner: Yes

Imager equipment

  • Lens: 31° x 23°
  • Video streaming: Via USB
  • Storage as JPG: Yes
  • Fullscreen mode: Yes

Image storage

  • File format: .bmt and .jpg; export options in .bmp, .jpg, .png, .csv, .xls
  • Memory: Internal memory (2.8 GB)

Power supply

  • Battery type: Li-ion battery – can be changed on-site
  • Operating time: 4 hours
  • Charging options: In instrument/in charging station (optional)
  • Mains operation: Yes

Ambient conditions

  • Operating temperature range: -15 to +50 °C
  • Storage temperature range: -30 to +60 °C
  • Air humidity: 20 to 80 %RH, not condensing
  • Housing protection class (IEC 60529): IP54
  • Vibration (IEC 60068-2-6): 2G

Physical features

  • Weight: 510 g
  • Dimensions (LxWxH): 219 x 96 x 95 mm
  • Housing: PC – ABS

PC Software

  • System requirements: Windows 10, Windows 8, Windows 7

Standards, tests, warranty

  • EU directive: 2014/30/EU
  • Warranty: 2 years
  • Testo 865s Thermal Camera
  • Testo SuperResolution Software
  • USB cable
  • Mains unit
  • Lithium-ion rechargeable
  • Battery
  • Quick-start guide
  • Short instructions,
  • Calibration protocol
  • Case
