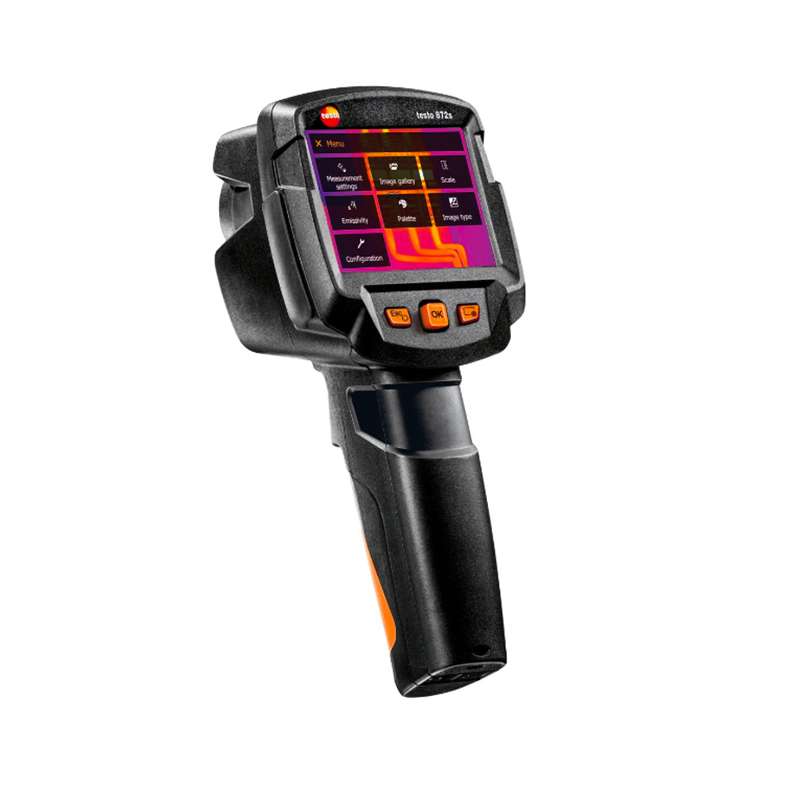

Testo 872s Thermal Imaging Camera

Testo

£2,101.00 / £2,521.20 incl VAT

⚡ Thermal sensor with 320 x 240 pixel resolution, large range and 50mK sensitivity
⚡ Integrated digital laser and digital camera take visible images alongside thermographs
⚡ Bluetooth communication integrates quantitative information with thermal images
⚡ Ergonomic Design

Available on back-order

SKU: 0560 8725 Category: Brand:

Description

Testo 872s Thermal Imaging Camera

Product Description:

The Testo 872s Thermal Imaging Camera provides high-quality thermal images and video footage using its 320 x 240 pixel thermal sensor. The camera uses non-contact infrared temperature measurement which goes from -30˚C to 650˚C with an accuracy of ±2˚C or 2%. Thermal sensitivity of 50mK means that temperature differences of just 0.06˚C are visible on screen. The camera is suitable for detecting mould, leaks, thermal bridges and overheating components as well as a whole host of other applications.

Images and video are shown on the Testo 872s’ vibrant screen which has a wide range of different colour palettes and two levels of digital zoom. On-screen area measurement provides useful information to the user alongside automatic hot/cold spot recognition. An integrated laser marker and digital camera take visual images to go alongside thermal images, thus facilitating easier analysis after inspections have been carried out.

ScaleAssist helps ensure that all thermal images and video taken with the Testo 872s are useful and usable by adjusting the scale to emphasise the temperature differences on screen. ɛ-Assist compensation for emissivity is also performed automatically by using three supplied ɛ-markers to adjust for different surface types.

Bluetooth communication allows the Testo 872s to integrate quantitative information from the Testo 605i Thermohygrometer and 770-3 Clamp Meter into its thermal display in order to enable simpler analysis on the results of thermal inspections. Wireless communication via WLAN with tablets and smartphones (with the free Testo Thermography App on Android and iOS) allows the user’s smart device to act as a remote screen and enables other useful analysis functions.

Images and video can be stored on the Testo 872s’ 2.8GB internal memory and then transferred to a PC via the supplied USB cable. Pro software comes provided as standard to help the user interpret results whilst optional SuperResolution software can artificially boost resolution to 640 x 480 pixels.

The Testo 872s has IP54-rated sealed casing which means that is suitable for use outdoors whilst a four-hour battery life means that the user can undertake a detailed inspection without having to worry about recharging. Supplied accessories include a mains unit, a lithium-ion rechargeable battery, pro software, Testo ε-Markers, a calibration protocol and a case.

Testo 872s vs 872

The 872s has received a number of important upgrades over its predecessor model, the 872. In the latest ’s’ model, you will find an improved thermal sensitivity (60mK vs 50mK) and better user interface for a superior user experience. In addition to this, the visual camera megapixel count has increased from 3.1MP to 5.0MP, delivering clearer imagery.

Testo 865sTesto 868sTesto 871sTesto 872s
Infrared resolution160 x 120 pixels (320 x 240 with Super Resolution)160 x 120 pixels (320 x 240 with Super Resolution)240 x 180 pixels (480 x 360 with Super Resolution)320 x 240 pixels (640 x 480 with Super Resolution)
Thermal sensitivity100mK80mK80mK50mK
Measuring range– 20 to +280 °C-30 to +650 °C-30 to +650 °C-30 to +650 °C
Field of View31° x 23°31° x 23°35° x 26°42° x 30°
App connection via wireless LAN
Integrated digital camera
IFOV warner
Testo ScaleAssist
Testo ε-Assist
Connection of Testo 605i & Testo 770-3 via Bluetooth
Laser marker



Key Features:

  • Measurement range: -30˚C to 650˚C
  • Accuracy: ±2˚C or ±2%
  • Thermal sensitivity: 50mK
  • Thermal resolution: 320 x 240 pixels
  • Automatic hot/cold spot recognition
  • Integrated laser marker and digital camera
  • ScaleAssist range adjustment
  • ɛ-Assist emissivity adjustment
  • Bluetooth communication to hygrometer and clamp meter
  • WLAN connectivity to smart devices
  • 2.8GB internal memory
  • PC pro software included as standard
  • Two-year warranty

Testo part number: 0560 8725

What’s In The Box?

  • Testo 872s Thermal Imaging Camera
  • Testo SuperResolution Thermal Imaging Software
  • Wireless module BT/wireless LAN
  • USB cable
  • Mains unit
  • Lithium ion rechargeable battery
  • Pro software
  • 3 x ε-markers
  • Quick-start guide
  • Short instructions
  • Calibration certificate
  • Case
Infrared image output

  • Infrared resolution: 320 x 240 pixels
  • Thermal sensitivity (NETD): 50 mK
  • Field of view/min. focusing distance: 42° x 30° / < 0.5 m
  • Geometric resolution (IFOV): 2.3 mrad
  • testo SuperResolution (pixels/IFOV): 640 x 480 pixels / 1.3 mrad
  • Image refresh rate: 9 Hz
  • Focus: Fixed focus
  • Spectral range: 7.5 to14 µm

Visual image output

  • Image size / min. focusing distance at least: 5.0 MP / 0.5 m

Image presentation

  • Image display: 8.9 cm (3.5″) TFT, QVGA (320 x 240 pixels)
  • Digital zoom: 2x, 4x
  • Display options: IR image / real image
  • Colour palettes: Iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT

Data interfaces

  • WLAN Connectivity: Communication with the Testo Thermography App
  • Bluetooth(1): Measurement value transfer from thermohygrometer testo 605i, clamp meter testo 770-3 (optional)
  • USB 2.0 Micro B: Yes

Measurement

  • Measuring ranges: -30 to +100 °C / 0 to +650 °C
  • Accuracy: ±2 °C, ±2 % of measured value
  • Emissivity / reflected temperature compensation: 0.01 to 1 / manual
  • Testo ε-Assist: Automatic recognition of emissivity and determination of reflected temperature (RTC)

Measurement functions

  • Analysis functions: Mean point measurement, hot/cold-spot recognition, Delta T, area measurement (min-max on area)
  • Testo ScaleAssist: Yes
  • IFOV warner: Yes
  • Humidity mode – manual: Yes
  • Humidity measurement with humidity measuring instrument(1): Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately)
  • Solar mode – manual: Input of solar radiation value
  • Electrical mode – manual: Input of current, voltage or power
  • Electrical measurement with clamp meter(1): Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordered separately)

Imager equipment

  • Digital camera: Yes
  • Lens: 42° x 30°
  • Laser(2): Laser class 2
  • Video streaming: Via USB, via wireless LAN with testo Thermography App
  • Storage as JPG: Yes
  • Fullscreen mode: Yes

Image storage

  • File format: .bmt and .jpg; export options in .bmp, .jpg, .png, .csv, .xls
  • Memory: Internal memory (2.8 GB)

Power supply

  • Battery type: Li-ion battery can be changed on-site
  • Operating time: 4 hours
  • Charging options: In instrument/in charging station (optional)
  • Mains operation: Yes

Ambient conditions

  • Operating temperature range: -15 to +50 °C
  • Storage temperature range: -30 to +60 °C
  • Air humidity: 20 to 80 %RH, not condensing
  • Housing protection class (IEC 60529): IP54
  • Vibration (IEC 60068-2-6): 2G

Physical features

  • Weight: 510 g
  • Dimensions (LxWxH): 219 x 96 x 95 mm
  • Housing: PC – ABS

PC software

  • System requirements: Windows 10, Windows 8, Windows 7

Standards, tests, warranty

  • EU directive: EMC 2014/30/EU; RED 2014/53/EU
  • Warranty: 2 years

(1) Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey
(2) excepting USA, China and Japan

  • Testo 872s Thermal Imaging Camera
  • Testo SuperResolution Thermal Imaging Software
  • Wireless module BT/wireless LAN
  • USB cable
  • Mains unit
  • Lithium ion rechargeable battery
  • Pro software
  • 3 x ε-markers
  • Quick-start guide
  • Short instructions
  • Calibration certificate
  • Case
