Hikmicro Mini2Plus V2
£219.00 / £262.80 incl VAT
256 × 192 high-resolution VOx thermal detector
50° × 37.2° wide field of view
USB-C and Lightning connectivity for iOS and Android
Battery-free design
3-Year Manufacturer Warranty
Available on back-order
Description
Hikmicro Mini2Plus V2

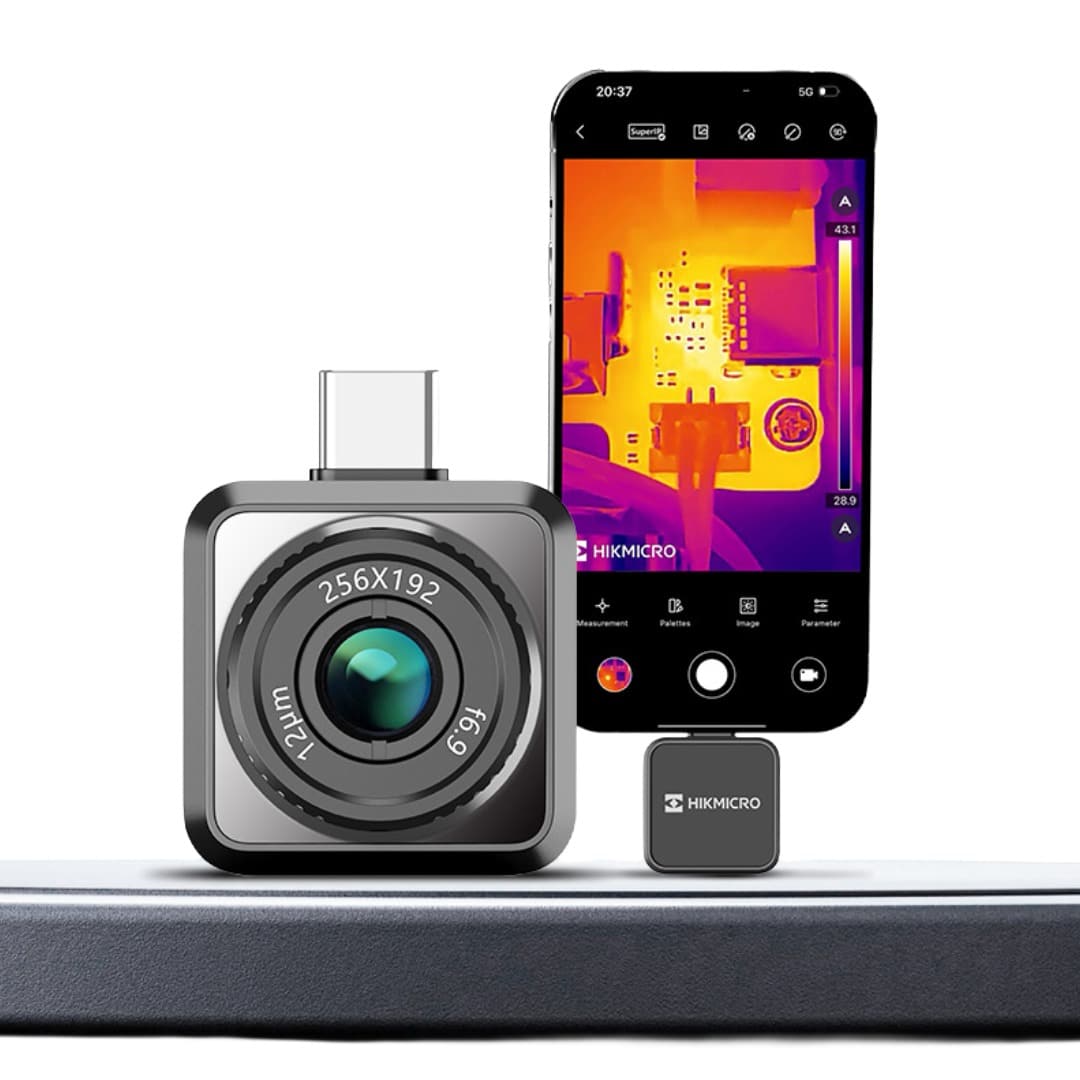

The Mini2Plus V2 is a compact smartphone thermal imaging camera designed for fast inspection of homes, HVAC systems, and electrical equipment. Featuring manual focus, advanced SuperIR image enhancement and high-precision temperature measurement, this lightweight thermal camera delivers professional-grade thermal diagnostics directly from your mobile device.
Compatible with both iOS and Android smartphones, the Mini2Plus V2 is a practical and reliable tool for engineers, technicians and maintenance professionals who need quick thermal insight in the field.
Key Features:
• Thermal resolution: 256 × 192 (49,152 pixels)
• SuperIR image enhancement technology for improved live and captured images

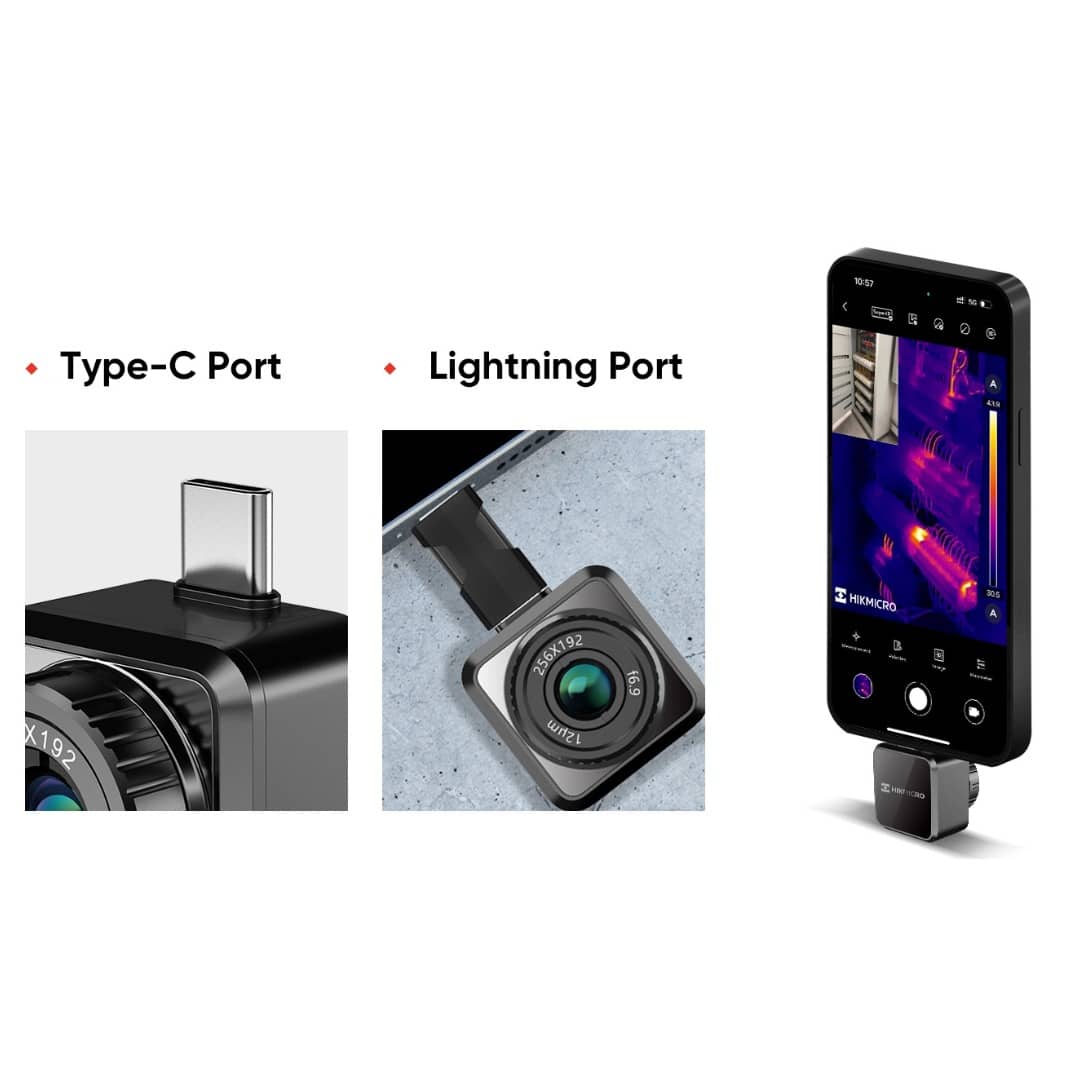

• 3-in-1 connectivity – USB-C (Android & iOS) and Lightning support (includes Lightning to USB-C adapter)
• NETD: <40 mK (@ 25°C, F#=1.0) for high thermal sensitivity
• Temperature accuracy: ±2°C (-20°C to 100°C); ±2% (100°C to 400°C)
• Ultra-lightweight design – only 24 g for easy mobile use
What’s Included:
• Thermal Imager
• USB-C Extension Cable
• Lightning Adapter
• USB-C Extension Adapter
• Protective Carry Case
• Quick Start Guide
• 3-Year Warranty
| Category | Specification |
|---|---|
| Infrared Image | |
| IR Resolution | 256 × 192 (49,152 pixels) |
| SuperIR | Yes, on captured images and live view |
| NETD | < 40 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 6.9 mm |
| F-number | F1.0 |
| Field of View (FOV) | 25° × 18.8° |
| Minimum Focus Distance | 0.1 m (0.33 ft) |
| Focus Mode | Manual Focus |
| Image Display | |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined |
| Image Modes | Thermal, Visual (using phone camera) |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 400°C (-4°F to 752°F) |
| Accuracy | Max (±2°C / ±3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot, plus 3 user-definable spots, 3 rectangles, and 1 line |
| Level and Span Mode | Auto / Manual |
| General | |
| Power Consumption | 360 mW |
| Interface | USB-C Android, USB-C iOS, Lightning iOS (includes Lightning to USB-C adapter) |
| Device Compatibility | iOS (version 14+), Android (version 7+) smartphones and tablets, or Windows devices |
| Software Compatibility | HIKMICRO Viewer app (iOS & Android), HIKMICRO Analyzer software (Windows) |
| Protection Level | IP40 |
| Drop Test Height | 1 m (3.28 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Weight | Approx. 24 g (0.053 lb) |

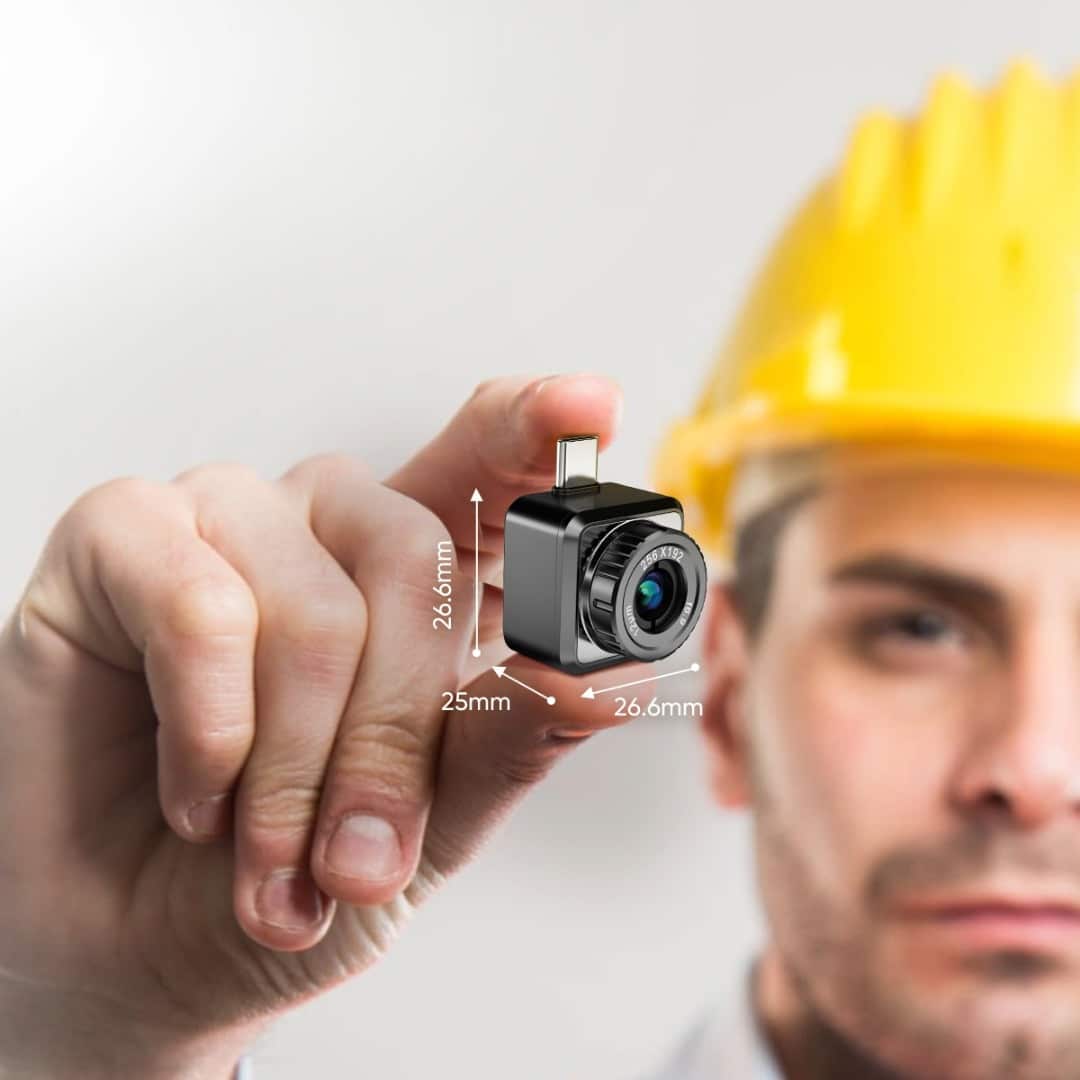

| Dimensions | 26.6 × 26.6 × 25 mm (1.05 × 1.05 × 0.98 in) |
- Thermal Imager
- USB-C Extension Cord
- Lightening Adapter
- USB-C Extension Adapter
- Protective Case
- Quick Start Guide
- 3 Year Warranty
