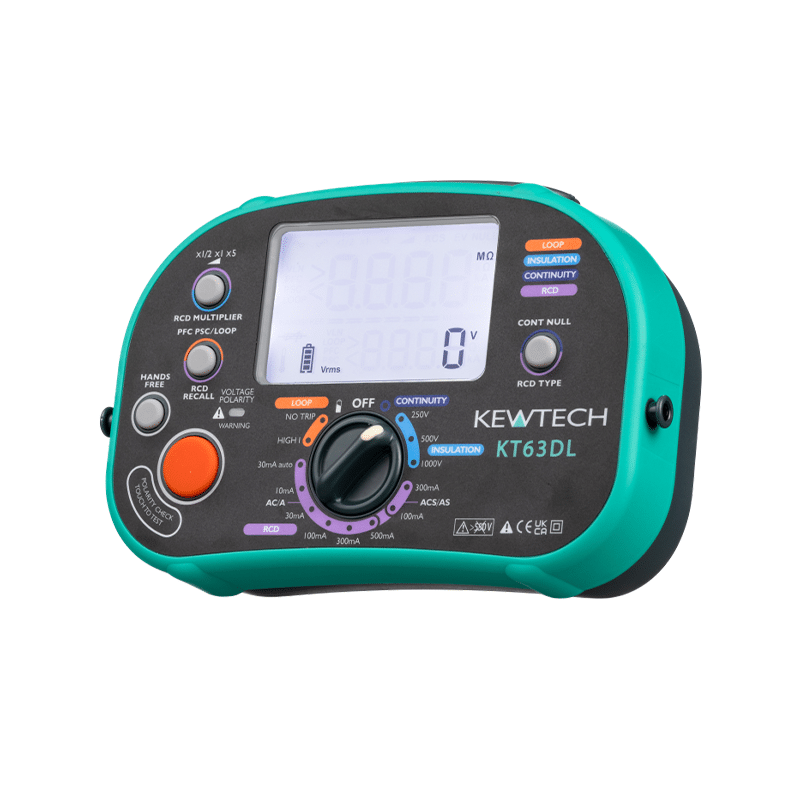

Kewtech KT63DL Digital 5-in-1 Multifunction Tester

Kewtech

£594.00 / £495.00 excl VAT

⚡ 18th Edition Compliant

⚡ Proven, accurate, and reliable

⚡ Tests Type AC & A, ACS & AS RCDs

⚡ Prospective Short Circuit Test

⚡ Mains Polarity Test

Add Calibration on your PAT Tester for Optimum Performance.

Choose your free gift from the selections below.

Description

Product Details

Compact and robust multifunction tester. Tests 18th edition electrical installations including type A and AC RCDs. IP54 rated, even when the leads are not plugged in. Anti-trip technology loop for full no-trip loop testing of all RCD types. Low susceptibility of RCD uplift and noise interference. Displays PFC/PSC at the same time as loop reading. 250/500/1000V insulation test with auto-discharge. Test leads auto-null for continuity mode. RCD auto-test mode for 30mA RCDs. RCD ramp test function. Tests 10mA, 30mA, 100mA, 300mA and 500mA RCDs. Hand-free mode is controlled by a separate button. Instant correct wiring status check. Supplied in a soft carry case.

Product Features

  • Multifunction 5-1 Tester
  • Easy to use
  • New Anti Trip Technology loop for full no trip Loop testing of RCD of all types. Low susceptibility of RCD uplift and noise interference
  • Displays PFC/PSC at the same time as Loop reading
  • 250V / 500V / 1000V insulation test with auto discharge
  • Test leads auto-null for continuity mode
  • RCD auto test mode for 30mA RCDs
  • RCD ramp test function
  • Tests 10mA, 30mA, 100mA, 300mA & 500mA RCDs
  • End of line calibration certificate included
  • Hand-free mode controlled by a separate button
  • Single rotary dial for function selection
  • Comes in a soft carry case
  • Auto-ranging Continuity measurement to 2000Ω
  • Protected against phase to phase connection
  • Instant correct wiring status check
  • Complies with BS7671 (Part P)
  • Easy to use – straightforward interface
  • Best loop performance accuracy when benchmarked against other brands
  • No Bangs – continuous live monitoring means no bangs
  • IP54 even when the leads are not plugged in – a great help if you happen to be caught outside
  • Proven, accurate, and reliable
  • Easy to use – straightforward interface
  • Tests Type AC & A, ACS & AS RCDs
  • IP65 Rated
AC Measuring Method Average RMS
Batteries Supplied/Required 4 x AA Batteries Supplied
Brand Kewtech
Carrying Facility Carry Case
Continuity Buzzer With Continuity Buzzer
Current Type AC
Display Type Backlit LCD Display
Earth Continuity Test Range 0.01Ω-99.9kΩ
Insulation Resistance Test Range 0.01-999MΩ
IP Rating IP54
Low Battery Indicator Low Battery Indicator
Manufacturer Guarantee 1 Year Guarantee
Max. Test Current 0.2 A
Model Name/No KT63DL
Pack Size 1
Phase Rotation Test Indicator Does Not Perform This Function
Pieces in Pack/Case 1
Polarity Test Mains Polarity Test
Power Type Battery-Powered
Product Length 125 mm
Product Type Multifunction Tester
Product Width 190 mm
Resistance 2000 MΩ
Test Lead Null Test Lead Null (4Ω)
Total Product Weight 750 g

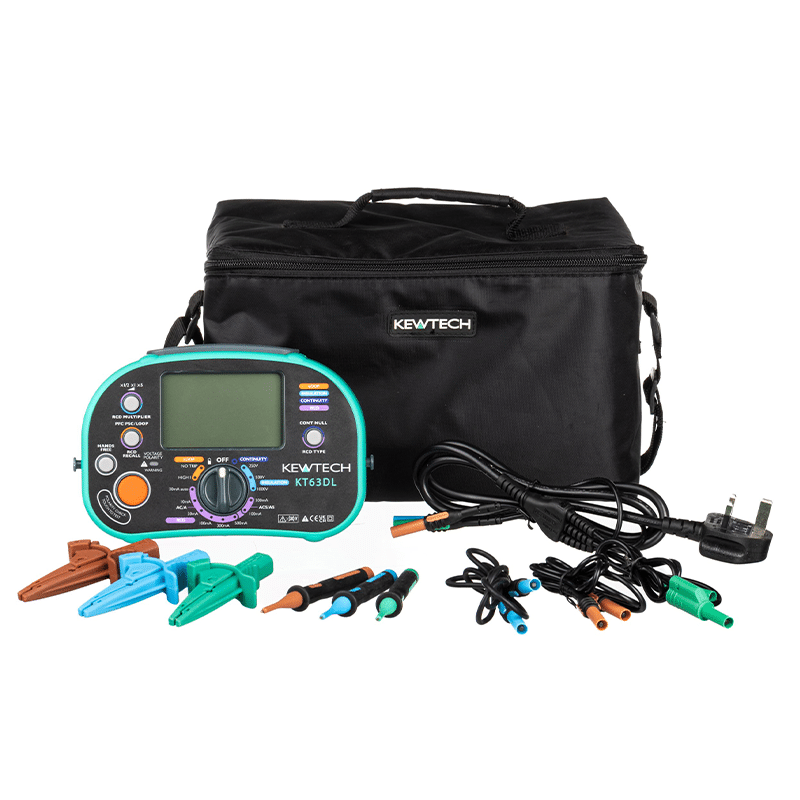

  • KAMP12UK Mains Lead
  • ACC063 3 wire distribution board test lead
  • 8 x AA Batteries
  • Carrying strap
  • Large carrying case
  • Instruction Manual
  • Certificate of conformity
  • End of line certificate
