Martindale CO190 Carbon Monoxide Meter

Category:

Description

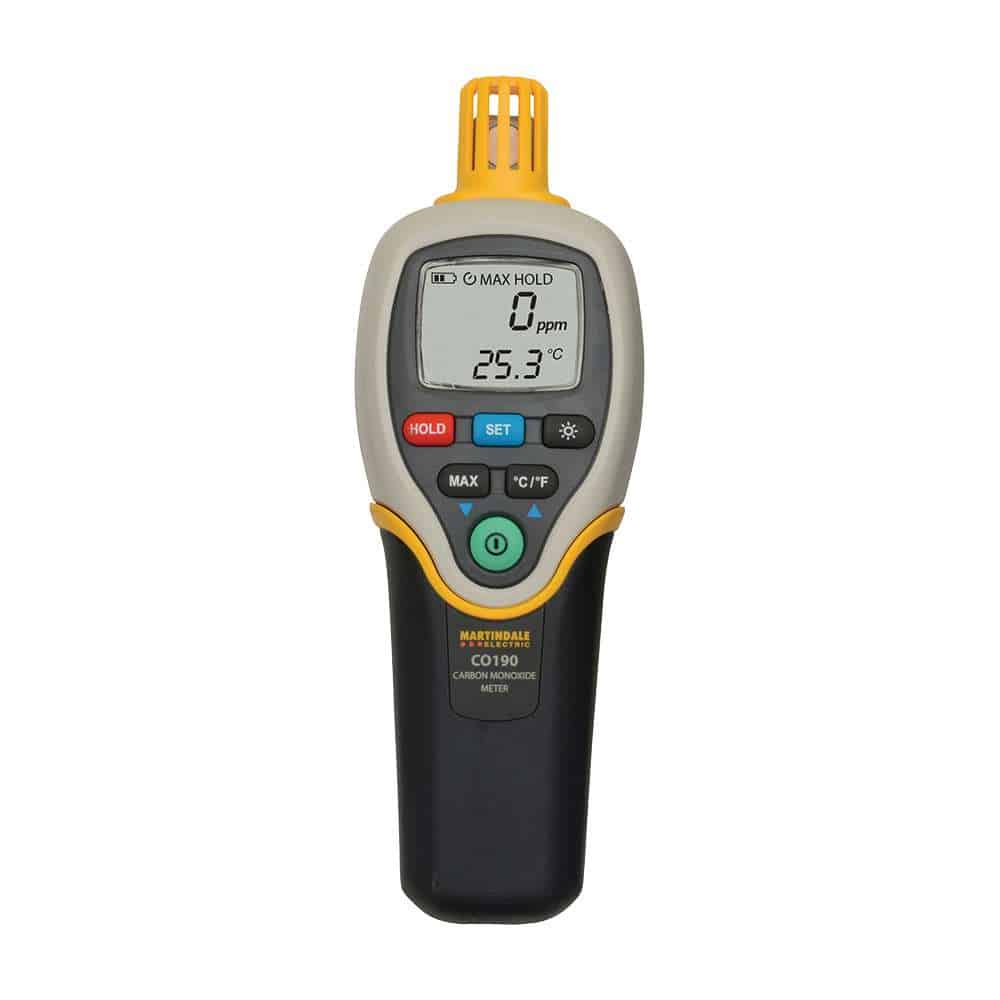

Martindale CO190 Carbon Monoxide Meter

The Martindale CO190’s a tough high performance, carbon monoxide meter suitable for on-site use. The ergonomic designed and optimised for easy handling and reliable results in difficult applications.
The clear LCD display shows the reading in ppm, with an audible beeper that speeds up with CO concentration, becoming a continuous tone above 200ppm.

The default alarm threshold’s set at 35ppm and can easily adjust from 0 to 1000ppm. For readings over 1000ppm the alarm beeper sounds continuously with a high frequency tone. The LCD screen will display OL to indicate an over range reading and has a low battery indicator. Battery life time’s around 200 hours under normal operating conditions.

Max & Hold buttons allow for the current reading, or the highest reading over a period of time to be captured. Together with the audible tone, these features make the CO190 ideal for use where access or line of sight’s difficult.

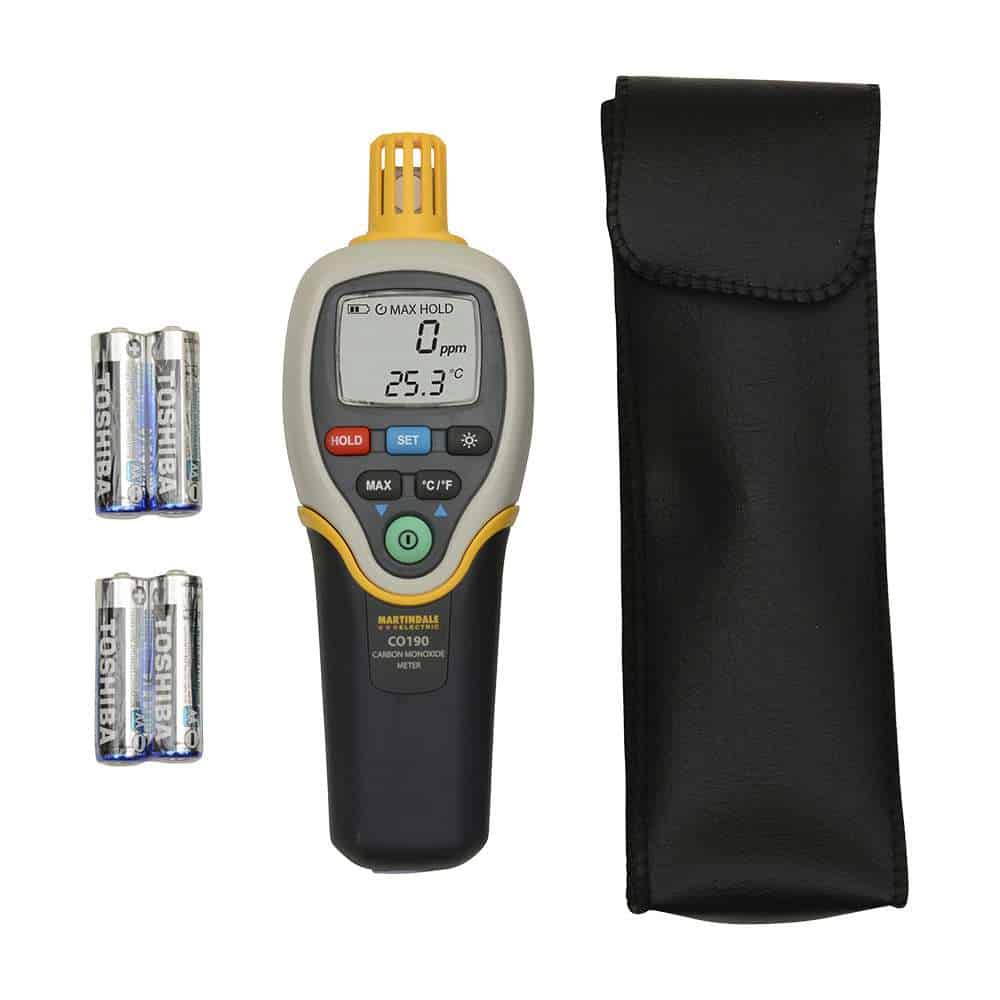

The CO190 carbon monoxide detector’s supplied with batteries, soft carry case and manual.

All specified accuracies are at 23°C
Temperature coefficient:
0.1 x (specified accuracy) per °C
(0-22°C, 24-50°C)
Measurement ranges:
Carbon monoxide: 0 to 1000ppm
Temperature: -20°C to 70°C (-4°F to 158°F)
Carbon Monoxide
Range Accuracy
0-1000 ppm ±5% reading or ± 5 ppm (whichever is greater)
Temperature
Range Accuracy
-20°C to 70°C ±0.8°C
-4°F to 158°F ±1.5 °F
General
Digital display: 4 digit, 30mm, liquid crystal display
Sampling rate: twice per second
Sensor type: electrochemical carbon monoxide gas sensor
Temperature sensor type: thermistor
Resolution: 1ppm, 0.1°C/0.1°F
Response time: (at T90 in slowly moving air)
carbon monoxide: 60 seconds
temperature: 10 seconds
Power: 4 x 1.5V, AA alkaline batteries (IEC LR6, NEDA 15A)
Battery Life: 200 hours continuous approx.
Auto power off: after approx. 30 minutes
Dimensions: 190 (L) x 65 (W) x 45 mm (H)
Weight: 235g approx.
Includes: 4 x 1.5V AA alkaline batteries and instructions
ENVIRONMENTAL
Temperature & Humidity
(Operating): 0°C to 50°C (32°F to122°F) 10-90% R.H.
(Storage): -20°C to 70°C (-4°F to 158°F) 0-80% R.H.
EMC
Conforms to BS EN 61326-1

Additional information

Weight 235 g
Dimensions 19.0 × 6.5 × 4.5 cm
