Martindale TEK100-YE Non Contact Voltage Detector with Optimised Sensitivity


£46.50 / £55.80 incl VAT
- Professional non-contact voltage indicator for safe testing
- Detects AC voltage from 180V to 600V
- Built-in proving circuit checks battery and operation
- Visual and audible alerts for clear live voltage indication
- High sensitivity allows Live and Neutral identification
- Compact, reliable design ideal for electricians and engineers
In stock (can be backordered)
Description

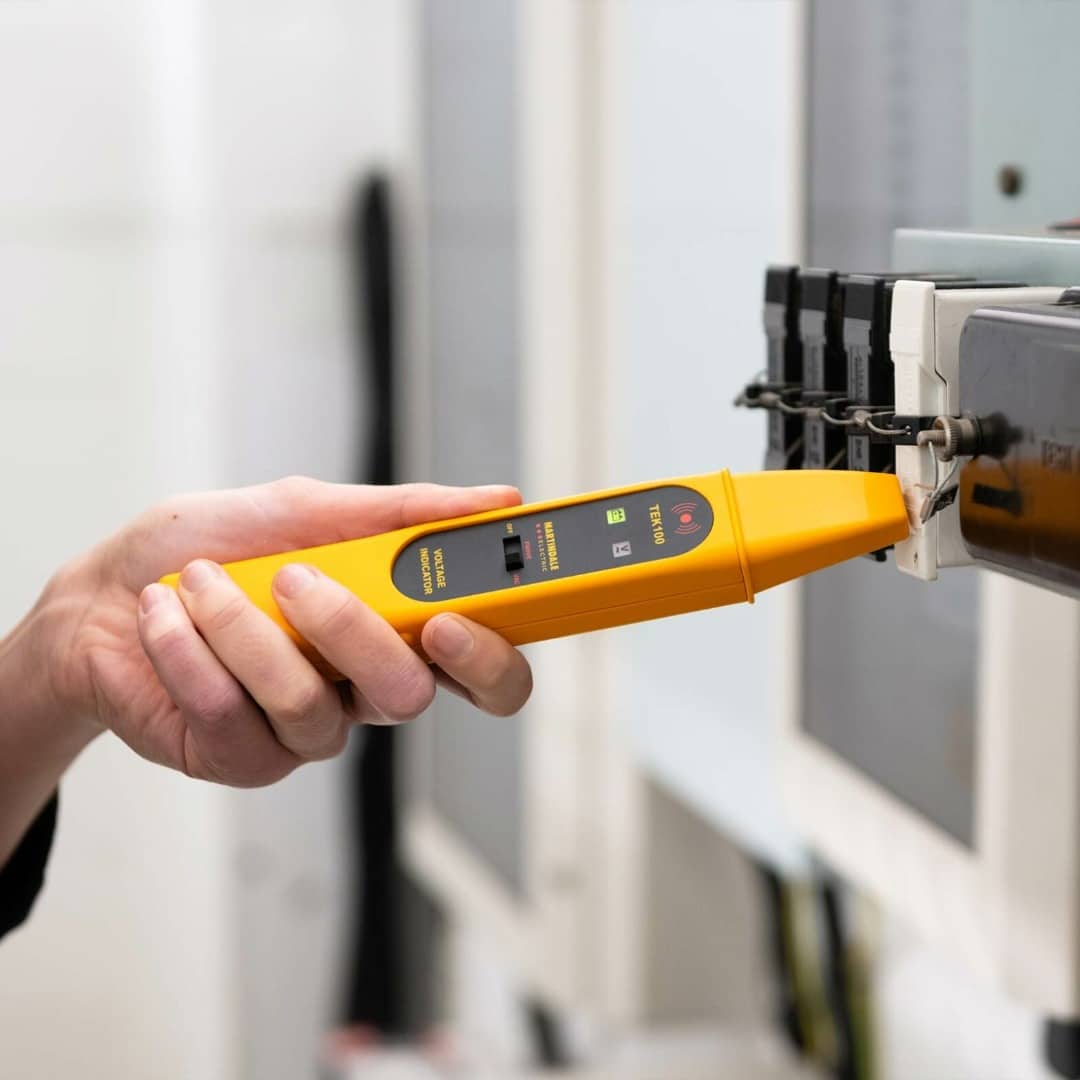

Martindale TEK100-YE Non-Contact Voltage Indicator
The Martindale TEK100-YE is an advanced non-contact voltage indicator designed to deliver fast, reliable detection of live AC voltages while keeping the user safe. Ideal for electricians and electrical engineers, it combines high sensitivity with intelligent safety features to provide confidence before and during testing.
An inbuilt proving circuit automatically checks battery condition and confirms the tester is functioning correctly, reducing the risk of false readings. The optimised sensing technology allows accurate voltage detection without physical contact and can distinguish between Live and Neutral conductors when in close proximity — with a higher detection threshold than many standard voltage pens.
Clear visual and audible indications provide instant feedback, making the TEK100-YE ideal for fault finding, verification of dead, and routine electrical safety checks.
Key Features
Non-contact AC voltage detection
Visual and audible alerts for clear indication
Built-in self-test / proving circuit confirms correct operation
High sensitivity for reliable detection
Distinguishes Live and Neutral conductors at close range
Compact, robust design for professional use
Specifications
Model: Martindale TEK100-YE
Voltage Range: 180 V to 600 V AC rms
Frequency Range: 45 Hz to 1 kHz
Detection Type: Non-contact voltage indication
Typical Sensing Distances (50 Hz, Energised Cables)
| Cable Type | TEK100-YE at 230 V |
|---|---|
| Flat 1.0 mm² twin & earth | 3 mm |
| Flat 2.5 mm² twin & earth | 3 mm |
| Round 1.5 mm² cable | 2 mm |
Click here – Martindale TEK100-YE Specification Sheet
