Metrel MI 3114 PRO PV CAT II 1500 V Tester Kit with Additional Pro Accessories
Metrel MI 3114 PRO PV CAT II 1500 V Tester Kit with Additional Pro Accessories - Image 2

Metrel MI 3114 PRO PV CAT II 1500 V Tester Kit with Additional Pro Accessories

Metrel

£4,575.00 / £5,490.00 incl VAT

⚡Autotest Function: One-button testing ensures compliance with IEC 62446-1.

⚡Advanced Measurement Range: Uoc up to 1500 V and Isc up to 40 A.

⚡Wireless Monitoring: Remote unit for real-time irradiation and temperature measurements.

⚡STC Calculations: Results adjusted to STC values for performance comparisons.

⚡Professional Reporting Software: Includes Metrel ES Manager for efficient data handling and compliance reports.

Available on back-order

Free Mainland GB Delivery on orders over £150 Fast Dispatch from our UK Warehouse Price Match Available on Many Products Need Advice? Call 01945 738112
SKU: MET-MI3114-PRO Category: Brand:

Description

The Metrel MI 3114 PRO PV CAT II 1500 V Tester Kit is an advanced testing solution engineered to meet the rigorous demands of low voltage electrical installations and photovoltaic (PV) systems. Designed for professionals, this device ensures compliance with critical standards like IEC/EN 62446-1, offering unmatched accuracy and flexibility in the field.

This versatile tester supports testing of PV systems with:

  • Maximum voltage: 1500 V
  • Short circuit current: 40 A

It’s ideal for contractors, maintainers, and inspectors certified in EISinsp and EISc Competences, aligning with building LV installation standards like IEC/EN 60364 and IEC/EN 61557.

Key Capabilities:

The Metrel MI 3114 PRO performs comprehensive testing, including:

  • Insulation Resistance: Testing PV strings up to 1500 V
  • Continuity Testing: Verification of PE conductors
  • Polarity Testing: Ensures proper system connections
  • Open Circuit Voltage (Uoc) and Short Circuit Current (Isc) Measurements
  • STC Value Calculations: Automatically adjusts results to Standard Test Conditions for performance comparisons.

Advanced Features:

  • Auto Test Function: Simplifies testing by combining multiple measurements into a single operation.
  • Wireless PV Remote Unit: Real-time monitoring of irradiation and cell temperature via Wi-Fi.
  • Data Management: Features a memory organizer and PV module database for efficient searches and grouped measurement reviews.
  • Error Correction: Modify incorrect parameters even after tests are completed.
  • Professional Reporting: Includes Metrel ES Manager (MESM) software for structuring, uploading/downloading, and generating compliance-ready reports.

Standards Compliance:

  • Photovoltaic Systems: IEC/EN 62446, EN 62466-1, EN 62466-2
  • Instrument Safety: IEC/EN 61010-1, IEC/EN 61010-031, IEC/EN 61010-2-030
  • Electrical Installations: IEC/EN 60364 series, IEC/EN 61557 (including 61557-2 for insulation resistance)
  • EMC Safety: IEC/EN 61326-1

What’s Included in the Pro Kit:

  • Instrument MI 3114 with calibration certificate
  • Wireless PV Remote Unit (A 1785) with calibration certificate
  • Comprehensive set of test leads, probes, clips, and adapters:
    • A 1790 BLU (3m), A 1790 RED (3m), A 1792 (3m), A 1509 (50m), and A 1012 (4m)
    • Crocodile clip (Green), test probes (Black, Blue, Red), PV MC4 to banana adapters (1500 V)
  • Accessories: Padded carrying bag, communication and power cables, carrying strap, clamps, rechargeable batteries (6x, 1.2V, 2100mAh), and power adapter
  • Metrel ES Manager Software (SW 1201): Includes license key for basic use
  • User Manual

Applications:

  • Testing low voltage photovoltaic installations
  • Performance evaluation of renewable energy systems
  • Validation of STC values and PV module performance
  • Advanced inspections in specialized environments

Order Now:

Ensure compliance and precision with the ultimate tool for PV system testing. The Metrel MI 3114 PRO offers everything you need to test, analyze, and report on photovoltaic installations with confidence.

Extra Features

  • Auto Tests
    • AUTO PV (Isc, Uoc, Ins+, Ins–): Supported
    • AUTOSEQUENCES®: Supported
    • AUTOSEQUENCE profile: Supported
    • Autosequence programmable: Supported
    • AUTOSEQUENCE PV: Supported
    • PASS/FAIL System Evaluation: Supported
    • On-site Parameter Settings: Supported
  • Automatic Test Sequences
    • Multitest sequence: Supported
  • Advanced User Interface
    • Colour display: Supported
    • Touch screen: Supported
    • Graphical Help Menus: Supported
    • Built-in Database System: Supported
  • SDK Support
    • Upload structure: Supported
    • Upload measurements: Supported
    • Download: Supported

Main Features

  • Voltage DC
    • Voltage DC: Supported
    • DC 1750 V: Supported
  • Current DC
    • Current DC: Supported
    • DC 40 A: Supported
  • Earth Bond / Continuity
    • Max Test Current 200 mA (2-wire): Supported
  • Insulation Resistance
    • Test Voltage 250 V: Supported
    • Test Voltage 500 V: Supported
    • Test Voltage 1000 V: Supported
    • Test Voltage 1500 V: Supported
    • Max resistance range 200 MΩ: Supported
  • Photovoltaic (PV) Measurements
    • Isc, Uoc, Polarity: Supported
    • PV Insulation: Supported
    • I-V Curve / STC Irradiance: Supported
    • I-V Curve / STC Module Temperature: Supported
    • I-V Curve / STC Extrapolation to STC: Supported
    • I-V Curve / STC Umpp, Impp, Pmax: Supported
    • PV Module Database: Supported
    • Rs (Calculated in PC Software): Supported
  • DC Side Measurements
    • Voltage (U): Supported
    • Current (I): Supported
    • Power (P): Supported
  • Power Measurements
    • Power for I/U curve in PV: Supported

Additional Features

  • Security
    • User Accounts: Supported
  • PASS / FAIL Indicators
    • PASS/FAIL Indicators: Supported
  • Voltage Monitoring
    • Voltage Monitoring: Supported
  • Display
    • LCD: Supported
    • Back Light: Supported
  • Keyboard
    • Virtual Keyboard: Supported
  • Power Supply
    • Rechargeable Batteries (Included): Supported
    • Battery Powered: Supported
    • Dual Power: Supported
    • Power Supply 115 V (50-60 Hz): Supported
    • Power Supply 230 V (50-60 Hz): Supported
  • Test Lead Compensation
    • Test Lead Compensation: Supported
  • Graphical User Interface
    • Graphical On-Line Help: Supported
  • Remote Communication
    • Remotely Controlled: Supported
    • Black-Box Communication Protocol: Supported
    • 3G / Wi-Fi Remote Communication: Supported
  • Communication Ports
    • USB: Supported
    • RS232 / PS/2: Supported
  • Built-in Bluetooth
    • Built-in Bluetooth: Supported
  • Memory
    • Internal Memory: Supported
    • microSD Memory Card: Supported
    • Downloadable: Supported
    • Uploadable: Supported
  • IP Protection
    • IP 40: Supported
    • IP 54: Supported
  • Protection Category
    • CAT II 300 V: Supported
  • High Altitude Protection
    • 4000 m: Supported

Special Accessories

  • PV Reference Cell: Supported
  • PV Pyranometer / Reference Cell: Supported
  • PV Remote Logger: Supported
  • Temperature Probe: Supported
  • PC Software Package: Supported
  • Report Creation: Supported
  • Professional Reporting: Optional
  • Battery Charger: Supported

Electrical Energetics

  • Renewable Energy Sources
    • STC values and performance of PV panels: Supported

Building Facilities

  • Special Locations
    • Low Voltage Photovoltaic Installations: Supported

Standards Applied

  • Building LV Installation
    • EISinsp Competences: Low Voltage Electrical Installation Safety Inspection: Supported
    • EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers: Supported
    • IEC/EN 60364: Electrical Installations for Buildings Series: Supported
  • Electrical Safety
    • IEC/EN 61557: Electrical safety in low voltage distribution systems up to 1000 V AC and 1500 V DC – Equipment for testing, measuring, or monitoring protective measures – Series: Supported
    • IEC/EN 61557-2: Insulation Resistance: Supported
  • Photovoltaic Systems
    • IEC/EN 62446: Requirements for testing, documentation, and maintenance: Supported
    • EN 62466-1: Grid-Connected Systems – Documentation, Commissioning Tests, and Inspection: Supported
    • EN 62466-2: Maintenance of PV Systems: Supported
  • Instrument Safety
    • IEC/EN 61010-1: General Safety Requirements: Supported
    • IEC/EN 61010-031: Safety for Hand-held and Manipulated Probe Assemblies: Supported
    • IEC/EN 61010-2-030: Particular Requirements for Equipment Having Testing or Measuring Circuits: Supported
  • EMC Safety
    • IEC/EN 61326-1: General EMC Requirements: Supported

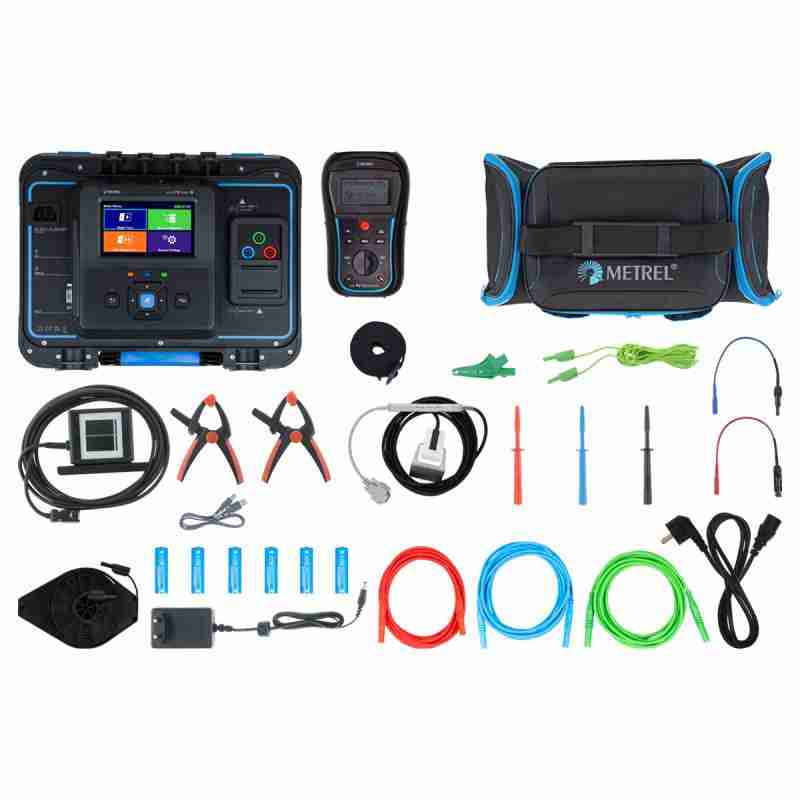

What’s Included in the MI 3114 Pro Set:

  • Instrument MI 3114
  • A 1790 BLU: Test lead, Blue, 3m, 2.5mm²
  • A 1790 RED: Test lead, Red, 3m, 2.5mm²
  • A 1792: Test lead, Green, 3m, 0.75mm²
  • S 2146: Set PV MC4 to banana adapters, 1500 V
  • A 1509: Test lead, Black, 50m, 0.75mm²
  • A 1012: Test lead, Green, 4m, 0.75mm²
  • A 1309: Crocodile clip, Green
  • A 1014: Test probe, Black
  • A 1015: Test probe, Blue
  • A 1016: Test probe, Red
  • A 1727: Communication cable, 1m, USB type B/A
  • A 1728: Power cable, 2m, 3×0.75mm²
  • A 1551: Soft padded carrying bag, Size: L
  • SW 1201: Metrel ES Manager (MESM) software
  • P 1000-EU: License key basic
  • Calibration certificate for MI 3114
  • User Manual
  • A 1785: PV remote unit
  • A 1833: PV temperature sensor
  • A 1834: PV reference cell
  • 2x A 1835: Clamps for attaching accessories
  • A 1791: Carrying strap with tightening buckle
  • S 2080: 6 Rechargeable batteries, 1.2 V, 2100 mAh, type AA
  • A 1548: Power supply adapter, 0.5A/12V
  • Calibration certificate for A 1785
