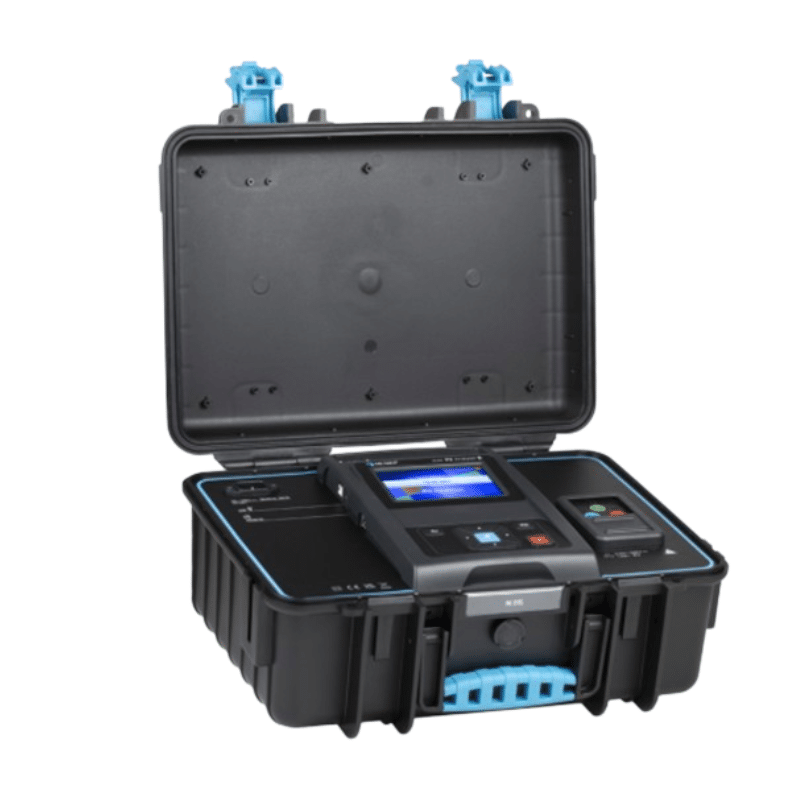

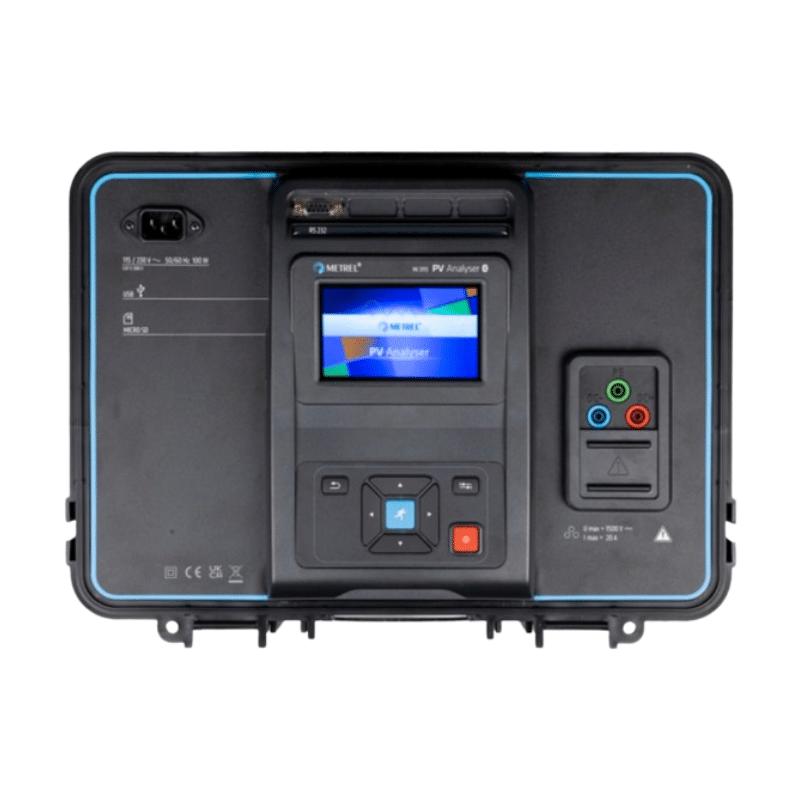

Metrel MI3115 1500V Solar PV Analyser


£5,555.88 / £6,667.06 incl VAT
⚡ Insulation and I/U measurement capability up to 1500V, with integrated STC value calculations.
⚡ Wireless remote unit for logging irradiation and cell temperature of PV modules in real-time.
⚡ Large colour touch screen for easy control, data review, and test execution with graphical/numerical results.
⚡ Auto test sequences for Category 1 tests, with correction options for previously entered parameters.
⚡ Durable design with IP54 rating (closed cover) and IEC/EN 61010-1 compliance for enhanced safety.
Available on back-order
Description
Metrel MI3115 1500V Solar PV Analyser
Product Details:
The Metrel MI3115 1500V Solar PV Analyser offers precise and user-friendly testing for photovoltaic systems, fully compliant with IEC 62446 standards. It supports both category 1 and 2 tests, including PV string measurements, STC value conversions, and more. The instrument wirelessly captures irradiation and temperature data in real-time, streamlining analysis.
One standout feature is the ability to correct previously inputted parameters even after measurements have been completed. The MI3115’s intuitive interface is controlled via a large colour touch screen, enabling users to initiate tests, store results, and review data in both numerical and graphical formats. Data can be efficiently organized and searched, making this tool indispensable for photovoltaic analysis.
Key applications include:
- Testing 1500V photovoltaic systems
- Routine inspections and maintenance
- Evaluation, troubleshooting, and report generation
- Renewable energy assessments, including STC value analysis and PV panel performance evaluation
Engineered with safety in mind, the MI3115 features an IP54-rated enclosure (with a closed cover) and meets IEC/EN 61010-1 standards, ensuring it can be safely used in diverse environments.
Metrel Electrical Safety Manager:
The Metrel Electrical Safety Manager software provides comprehensive control over various Metrel electrical safety testers, from appliance testers to earthing and industrial safety testers. With a user-friendly interface that mirrors Metrel instruments, users can download, analyze, and edit measurements, culminating in the generation of professional reports.
Metrel Part Number: MI3115
Key Features:
- Insulation and I/U measurement for 1500V PV systems in a single device
- Capacitive measurement method
- Wireless (Wi-Fi) remote for irradiation and PV module temperature logging
- Automated Category 1 tests
- STC value calculations with comparison to nominal data
- Post-measurement parameter correction for individual or grouped tests
- Easy-to-use colour touch screen for test management and data organization
- PV module database management
- AUTOSEQUENCE functionality

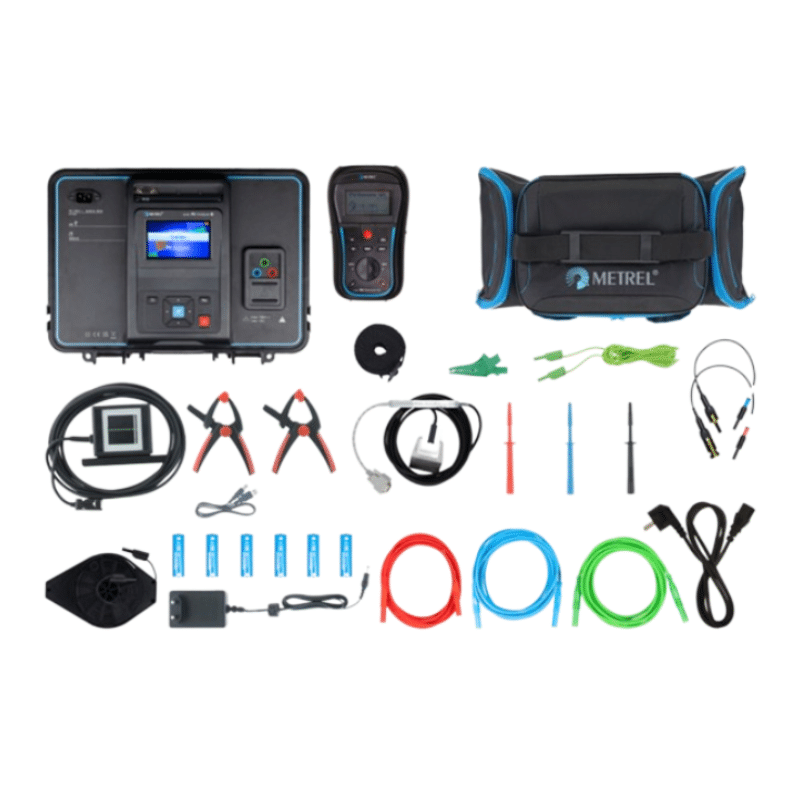

What’s Included:
- MI3115 PV Analyser
- A1785 PV Remote WL
- A1833 PV Temperature Sensor
- A1834 PV Reference Cell
- 2x A1835 Clamps for Accessories
- S2145 Set of PV MC4 to Banana Adaptors
- A1790 Red Test Lead, 3m, 2.5mm²
- A1790 Blue Test Lead, 3m, 2.5mm²
- A1792 Green Test Lead, 3m, 0.75mm²
- A1509 Black Test Lead, 50m, 0.75mm² – Reel
- A1012 Green Test Lead, 4m, 0.75mm²
- A1309 Green Crocodile Clip
- A1014 Black Test Probe
- A1015 Blue Test Probe
- A1016 Red Test Probe
- A1727 USB Cable Type A/B
- A1728 Power Cable, 2m, 3x 0.75mm²
- A1551 Soft Padded Carrying Bag (Large)
- A1548 Power Supply 0.5A/12V
- A1791 Carrying Strap
- S2080 Rechargeable Batteries, 1.2V, 2100mAh, Type AA, 6 pieces
- Calibration Certificates for MI3115 and A1785
- User Manual
- PC Software: Metrel Electrical Safety Manager (MESM)
- MI 3115 PV Analyser
- A 1785 PV Remote WL
- A 1833 PV temperature sensor
- A 1834 PV reference cell
- 2 x A 1835 Clamp for attaching accessories
- S 2145 Set PV MC4 to banana adaptors
- A 1790 RED Test lead, red, 3m, 2.5mm2
- A 1790 BLU Test lead, Blue, 3m, 2.5mm2
- A 1792 Test lead, Green, 3m, 0.75mm2
- A 1509 Test lead, Black, 50m, 0.75mm2 – Reel
- A 1012 Test lead, Green, 4m, 0.75mm2
- A 1309 Crocodile clip, Green
- A 1014 Test probe, Black
- A 1015 Test probe, Blue
- A 1016 Test probe, Red
- A 1727 USB Cable TypeA/B
- A 1728 Power cable, 2m, 3 x 0.75mm2
- A 1551 Soft padded carrying bag (SIZE L)
- A 1548 Power Supply 0.5A/12V
- A 1791 Carrying strap
- S 2080 Rechargeable batteries, 1.2V, 2100mAh, Type AA, 6 piece
- Calibration certificate for MI 3115
- Calibration certificate for A 1785
- User Manual
- PC SW Metrel Electrical Safety Manager (MESM)
Additional information
| Weight | 6800 g |
|---|
