Seaward PV:1525 Complete Solar PV Tester Kit – 601A910


£2,399.00 / £2,878.80 incl VAT
- Handheld PV tester for systems up to 1500V DC / 25A
- Performs all key safety tests: Voc, Isc, insulation & continuity
- Supplied calibrated: tester & irradiance meter
- Optional calibration available for clamp meter
- Bluetooth enabled – sync results to mobile app & software
- Includes clamp meter & irradiance meter for complete testing
- Stores up to 1000 results with tagging for easy reporting
- Compact, rugged, and designed for field efficiency
Available on back-order
Description
Seaward PV:1525 Complete Solar PV Tester Kit
The PV:1525 Solar PV Tester is a next-generation handheld solution designed to transform how solar professionals test, commission, and maintain photovoltaic systems. Built for accuracy, efficiency, and ease of use, it combines advanced electrical testing capabilities with seamless connectivity—giving engineers everything they need to work smarter in the field.
Engineered for systems up to 1500V DC and 25A, the PV:1525 delivers a complete suite of essential safety and performance tests in one compact device. From insulation resistance and ground continuity to open circuit voltage and short circuit current, it ensures every installation meets the highest standards.
Its intuitive user interface builds on trusted designs while introducing modern enhancements, including the ability to tag results with installation-specific data—making reporting, traceability, and compliance easier than ever.
With integrated Bluetooth connectivity, test results can be instantly transferred to the PV:Mobile App, enabling real-time review, easy data management, and seamless synchronisation with SolarCert software. Whether commissioning new systems or troubleshooting existing ones, the PV:1525 keeps your workflow fast, organised, and reliable.
Designed with portability in mind and supported by a comprehensive kit, this all-in-one solution is the ideal companion for PV installers and O&M engineers who demand precision without complexity.
Key Features:
- Complete PV system testing up to 1500V DC / 25A
- Measures:
- Insulation Resistance
- Ground Continuity
- Open Circuit Voltage (Voc)
- Short Circuit Current (Isc)
- Bluetooth connectivity for instant data transfer
- Compatible with PV:Mobile App & SolarCert software
- Tag and store results for improved traceability
- Large 3.5” colour display with backlight
- Compact, rugged handheld design (1kg)
- Onboard memory for up to 1000 test results
- Rechargeable LiPo battery with charging cradle
- Wireless current measurement via included clamp meter
What’s Included:

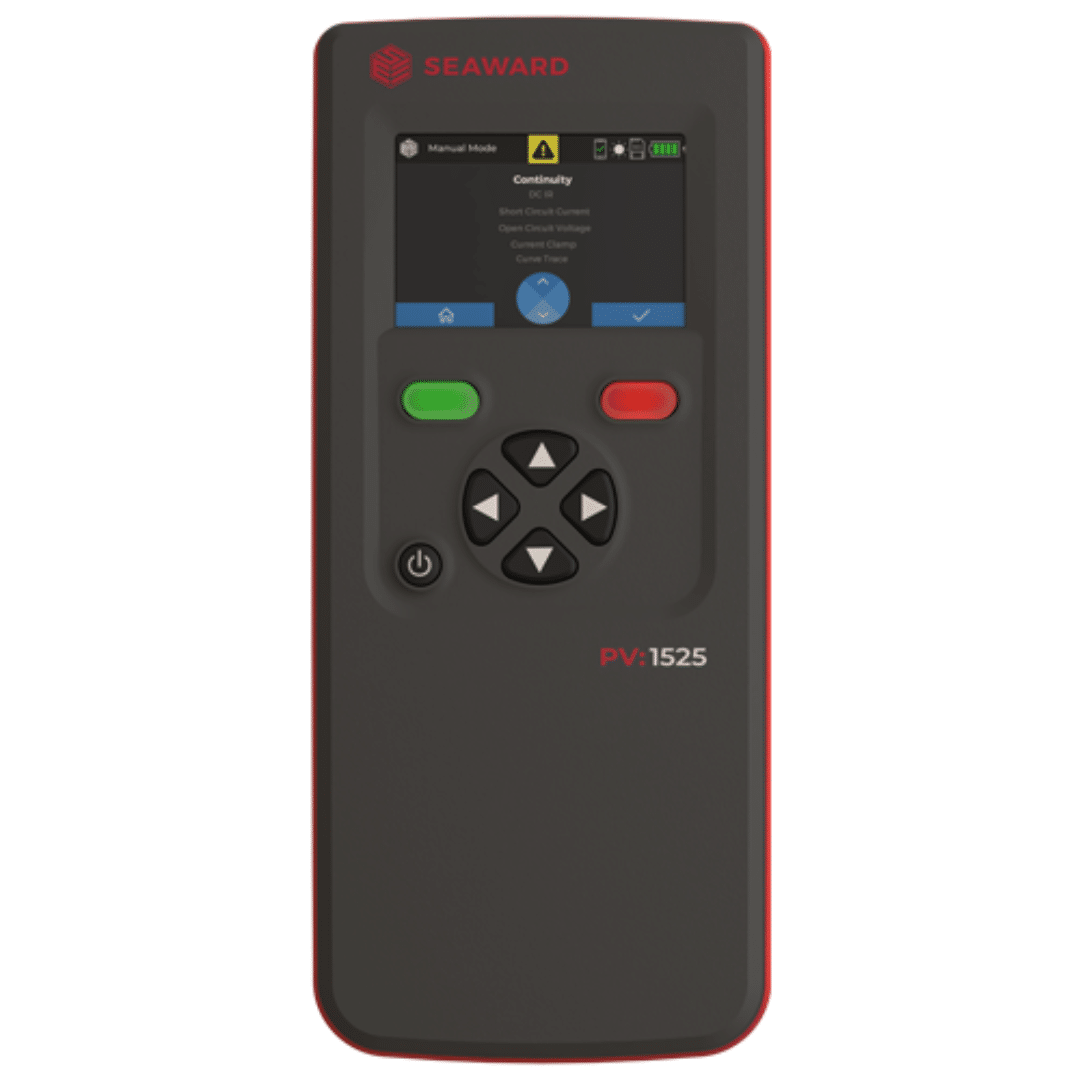

- PV:1525 Tester Instrument (calibrated)
- Set of 4mm test probes with alligator clips
- Instrument to MC4 test leads

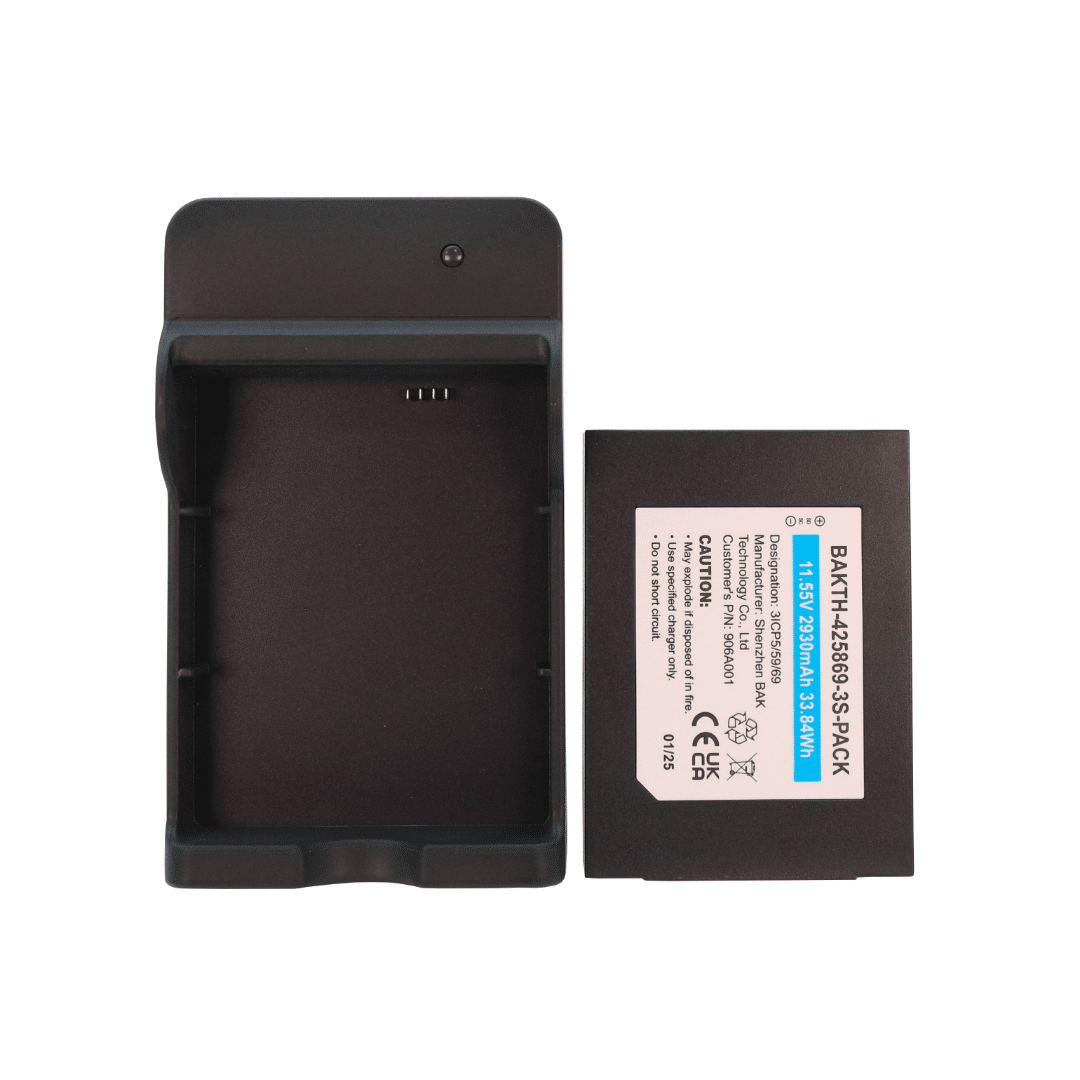

- Rechargeable battery pack
- Battery charging cradle
- PV:1500 Clamp Meter (optional calibration available)

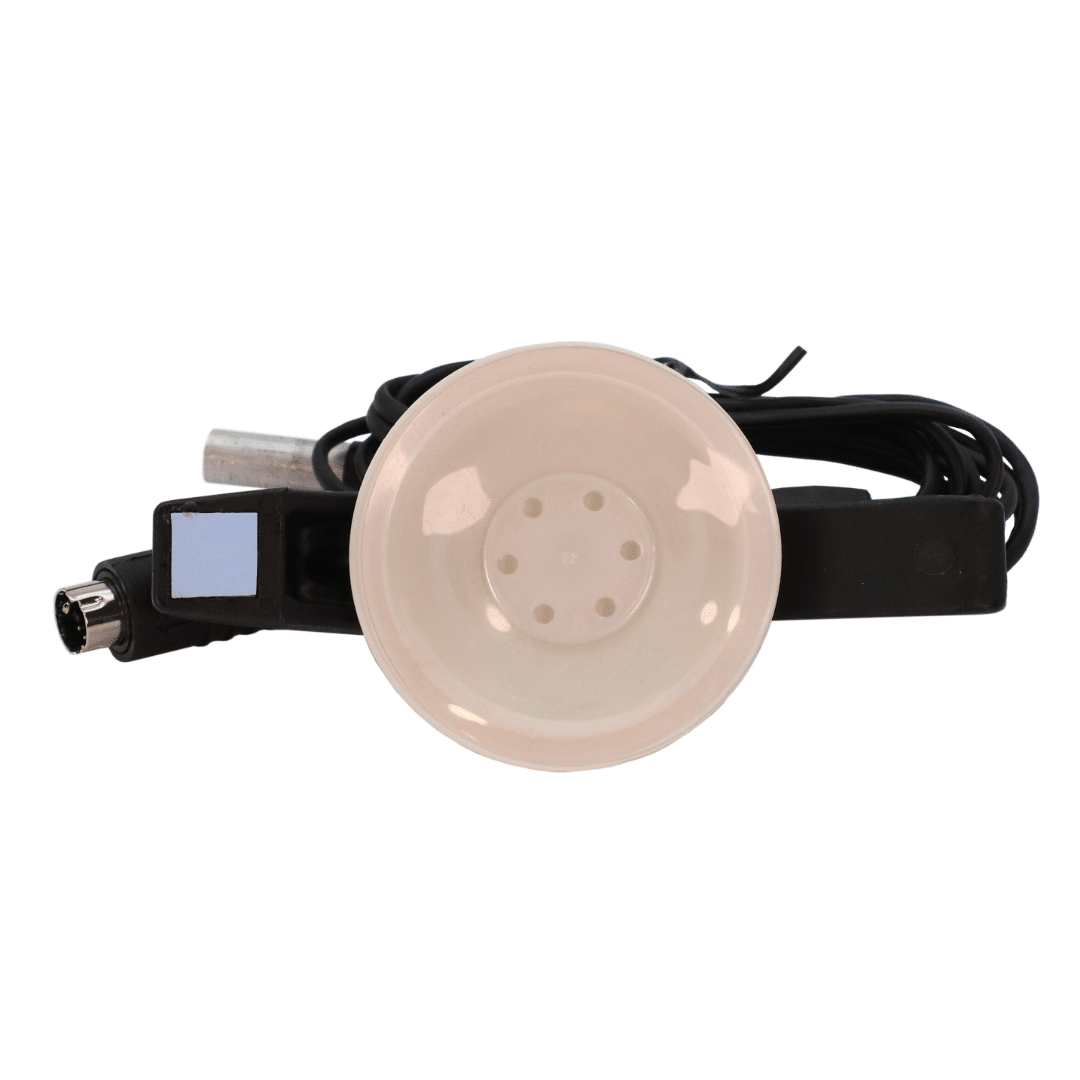

- SS:200LR Irradiance Meter with clamping bracket (calibrated)
- Carry case
- SolarCert software license
- Calibration certificate
Part Number: 601A910
View Full Technical Specification Sheet For PV:1525 Tester Here
View Full Technical Specification Sheet For SS200LR Irradiance Meter Here
View Full Technical Specification Sheet For PV:1500 Clampmeter Here
| Open Circuit Voltage Measurement (PV Terminals) | |
|---|---|
| Display Range | 0.0VDC – 1500VDC |
| Measuring Range | 5.0VDC – 1500VDC |
| Resolution | 0.1VDC maximum |
| Earth Continuity / Resistance Measurement (4mm Terminals) | |
|---|---|
| Test Voltage Open Circuit | >4VDC, nominal |
| Test Current into 2Ω | >200mA |
| Display Range | 0.00Ω – 199Ω |
| Measuring Range (EN 61557-4) | 0.05Ω – 199Ω |
| Resolution | 0.01Ω maximum |
| Test Leads Zero | Zero up to 10Ω |
| Visible Warning | ≥30V AC or DC at inputs |
| Circuitry Protection | Test inhibited if ≥30V AC or DC at inputs |
| Repeat tests as per IEC61557-4 | Approx 4000 1 second tests |
| Rpe Voltage Measurement (4mm Terminals) | |
|---|---|
| Display Range | 30V – 440VAC/DC |
| Voltage Measuring Range | 30V – 440VDC 30V – 440VAC 50-60Hz |
| Resolution | 1V |
| Operating Power (PV Terminals & wireless using PV:1500 Clamp) | |
|---|---|
| Display Range | 0.00kW – 600kW |
| Measuring Range | 0.50kW – 600kW |
| Resolution | 0.01kW |
| Short Circuit Current Measurement (PV Terminals) | |
|---|---|
| Display Range | 0.00ADC – 25.00ADC |
| Measuring Range | 0.50ADC – 25.00ADC |
| Maximum Power | 37.5kW |
| Resolution | 0.01 ADC maximum |
| Insulation Resistance Measurement (4mm Terminals) | |
|---|---|
| Test Voltage Open Circuit | 250, 500, 1000, 1500V (as per IEC61557-2) |
| Test Current Short Circuit | 2mA |
| Display Range | 0.05MΩ – 300MΩ |
| Measuring Range (EN61557-2) | 0.05MΩ – 300MΩ |
| Resolution | 0.01MΩ Maximum |
| Visible Warning | ≥30V AC or DC at inputs |
| Circuitry Protection | Test inhibited if ≥30V AC or DC at inputs |
| Repeat tests as per IEC61557-4 | Approx 4000 1 second tests |
| Operating Current (Wireless via PV:1500 Clamp) | |
|---|---|
| Display Range | 0.1A – 400.0A DC |
| Current Measuring Range | 0.1A 400A DC |
| General Specification | |
|---|---|
| Weight | 1kg / 2.2lb |
| Dimensions | 265 x 115 x 78 mm 10.4 x 4.6 x 3.1 in |
| Display | 3.5in Colour display with Backlight |
| Power Source | 11.55V 2930mAH LiPo Battery |
| Auto Power Down | User Configurable |
| Onboard Memory | 1000 Slots |
- PV:1525 Tester Instrument (calibrated)
- Set of 4mm test probes with alligator clips
- Instrument to MC4 test leads
- Rechargeable battery pack
- Battery charging cradle
- PV:1500 Clamp Meter (optional calibration available)
- SS:200LR Irradiance Meter with clamping bracket (calibrated)
- Carry case
- SolarCert software license
- Calibration certificate
