Seaward SS:200LR Solar Wireless Irradiance Meter – 396A942


£239.00 / £286.80 incl VAT
- Measures irradiance, temperature, pitch, and compass heading
- Wireless connection to PV:1525 for real-time data
- Datalogging with USB export (CSV format)
- Up to 150m wireless range
- Ideal for PV and solar thermal surveys
- Compact, lightweight, and easy to use
Available on back-order
Description
Seaward SS:200LR Solar Wireless Irradiance Meter
The Seaward SS:200LR Wireless Irradiance Meter is a versatile, high-precision instrument designed for solar photovoltaic (PV) and solar thermal professionals carrying out on-site surveys, installation verification, and system performance analysis.
This advanced handheld device measures solar irradiance while also integrating essential environmental and positioning tools, including an inclinometer for roof pitch, a compass for orientation, and temperature sensors for both ambient air and PV modules. These combined features allow engineers to accurately assess installation conditions and optimise system performance.
When paired wirelessly with the Seaward PV:1525 tester, the SS:200LR provides real-time irradiance and temperature data during electrical testing. This enables the creation of comprehensive datasets that can be seamlessly imported into SolarCert software for IEC 62446 compliant reporting.
The SS:200LR also features powerful datalogging capabilities, allowing users to monitor solar conditions over extended periods. With user-defined recording intervals and USB data export (CSV format), it is ideal for site surveys, feasibility studies, and long-term performance monitoring.
With a wireless range of up to 150 metres, rugged handheld design, and intuitive display, the SS:200LR is an essential tool for solar installers and engineers seeking accurate, reliable, and efficient field measurements.
Key Features:
- Measures irradiance, module temperature, ambient temperature, roof pitch, and compass heading
- Wireless connectivity with Seaward PV:1525 for real-time data integration
- Datalogging function with user-defined intervals
- USB interface for easy data export (CSV format)
- Suitable for PV and solar thermal system surveys
- Up to 150m wireless range for flexible operation
- Integrated inclinometer and compass for installation assessment
- Compact, lightweight, and durable handheld design
- Ideal for site surveys, commissioning, and performance monitoring

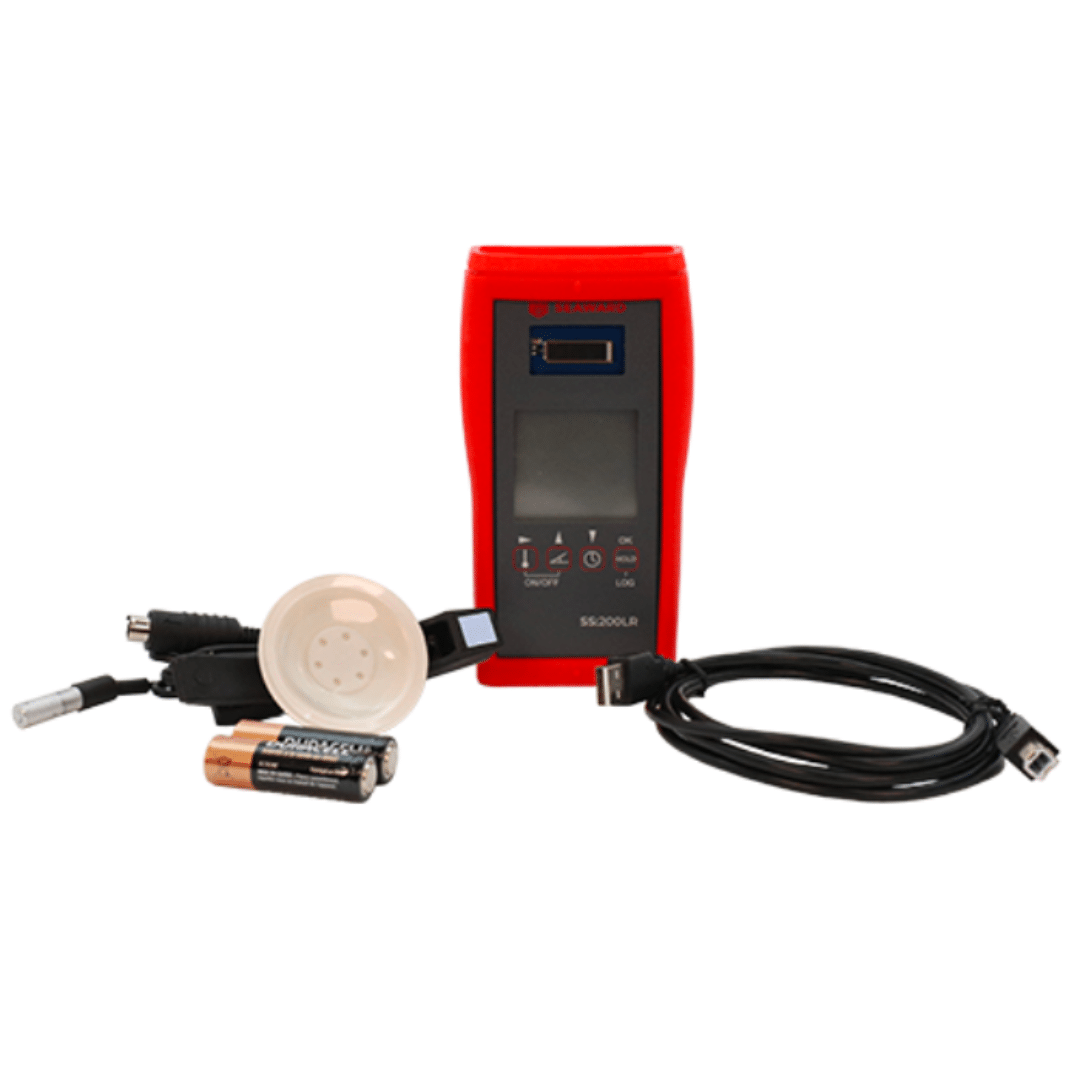

What’s Included:
- SS:200LR Wireless Irradiance Meter
- Solar survey temperature probe
- USB download cable
- 2 × AA batteries
- Quick start guide
- Calibration certificate
- CE & UKCA declarations
View Full Technical Specification Sheet For SS200LR Irradiance Meter Here
Irradiance Measurement
- Display Range: 100 to 1999 W/m²
- Measurement Range: 100 to 1500 W/m²
- Resolution: 1 W/m²
Temperature Measurement
- Range: -30°C to +125°C
- Resolution: 1°C
Compass Bearing
- Range: 0° to 360°
- Resolution: 1°
Inclinometer (Tilt)
- Range: 0° to 90°
- Resolution: 1°
Data Logging & Connectivity
- Logging Interval: 1 to 60 minutes (user-defined)
- Onboard Memory: Up to 5000 datasets
- Data Export: USB (CSV format)
- Wireless Range: Up to 150m (line of sight)
- Frequency Band: 433 MHz
General Specifications
- Display: Custom LCD
- Protection Rating: IP40
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -25°C to +65°C
- Weight: Approx. 0.25 kg
- Dimensions: 148 × 80 × 33 mm
Power Supply
- 2 × AA batteries
- Battery Life: Over 20,000 readings
- Auto Power-Off: Yes
- SS:200LR Wireless Irradiance Meter
- Solar survey temperature probe
- USB download cable
- 2 × AA batteries
- Quick start guide
- Calibration certificate
- CE & UKCA declarations
