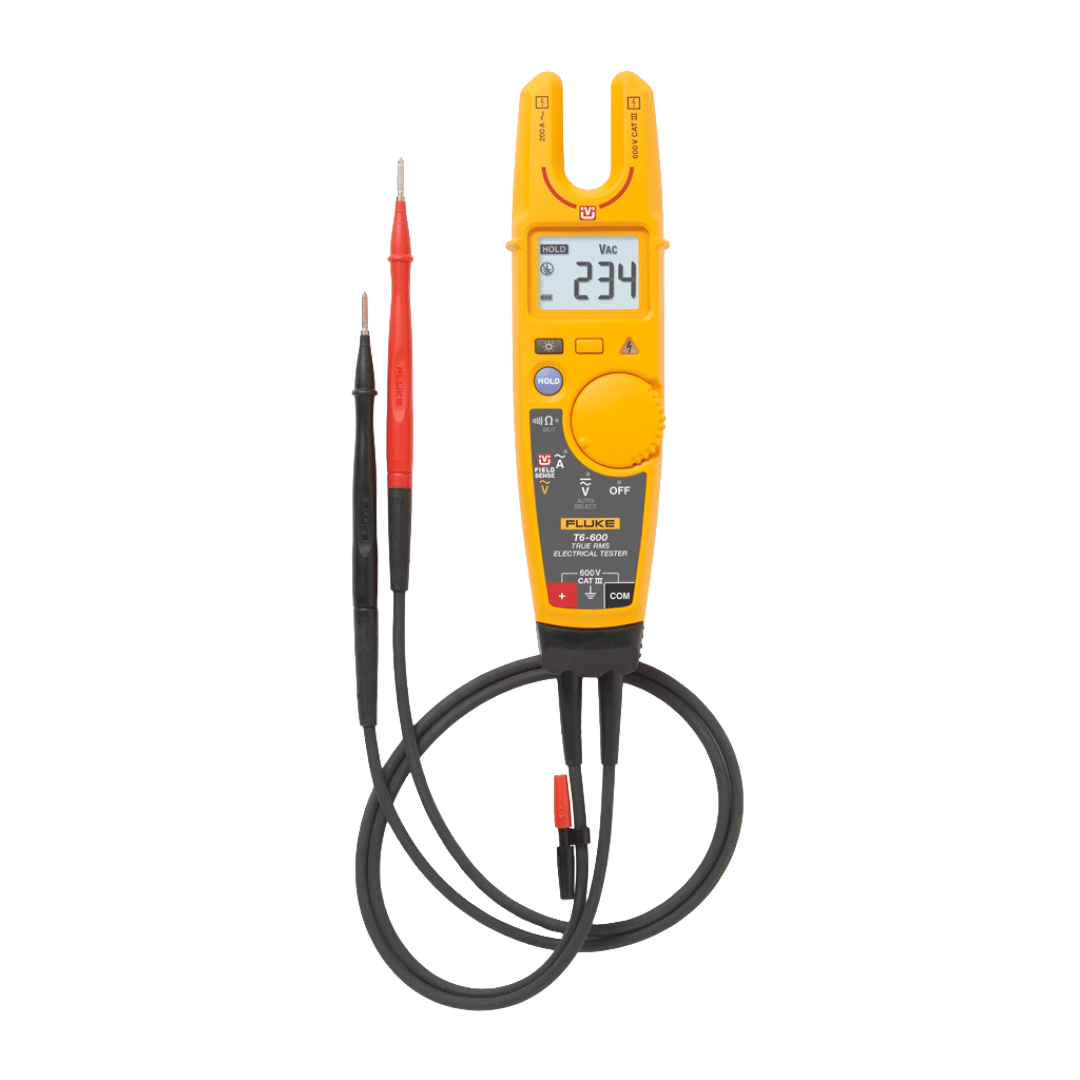

Fluke T6-600 Voltage and Current Tester with FieldSense Technology

Fluke

£135.00 / £162.00 incl VAT

⚡ We will MEET or BEAT our Competitors Quotes on this Product
⚡ FREE Next Working Day Delivery if ordered Before 2pm
⚡ Calibration Service Available for This Product
⚡ We are Fluke Main Distributors
⚡ Standard two-year warranty; extendable to 4 years through product registration within 45 days of purchase
Price Pledge

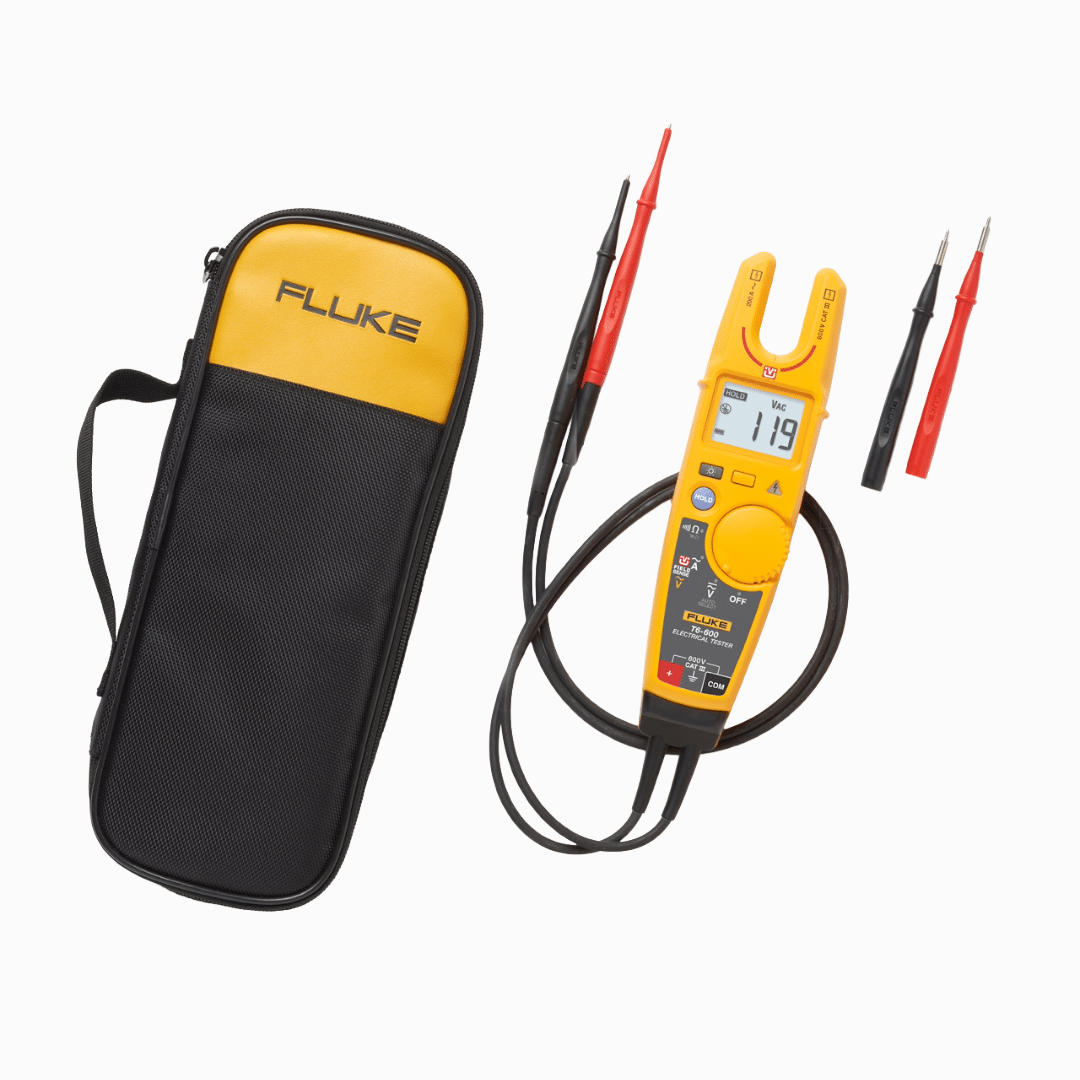

Add Soft Carry Case?

Some Fork Testers don’t come with a carry case that’s why we’ve added the perfect cases to go with you brand new Fork Tester, simply click to select.
(PLEASE CHECK THE PRODUCT YOU’RE BUYING IS NOT ALREADY SUPPLIED WITH A CASE)

None Leaderman LDM-C16 Protective Case For Voltage Testers +£15.00 Leaderman LDM-C1 Carry Case +£17.60 Fluke C150 Soft Carrying Case for Two Pole Voltage and Continuity Testers +£35.00 Martindale TC52 Soft Carry Case for Voltage Indicators +£16.50

Calibration Certificate

Add Calibration on your Fork Tester.

Description

Fluke T6-600 Voltage and Current Tester with FieldSense Technology

Product Details:

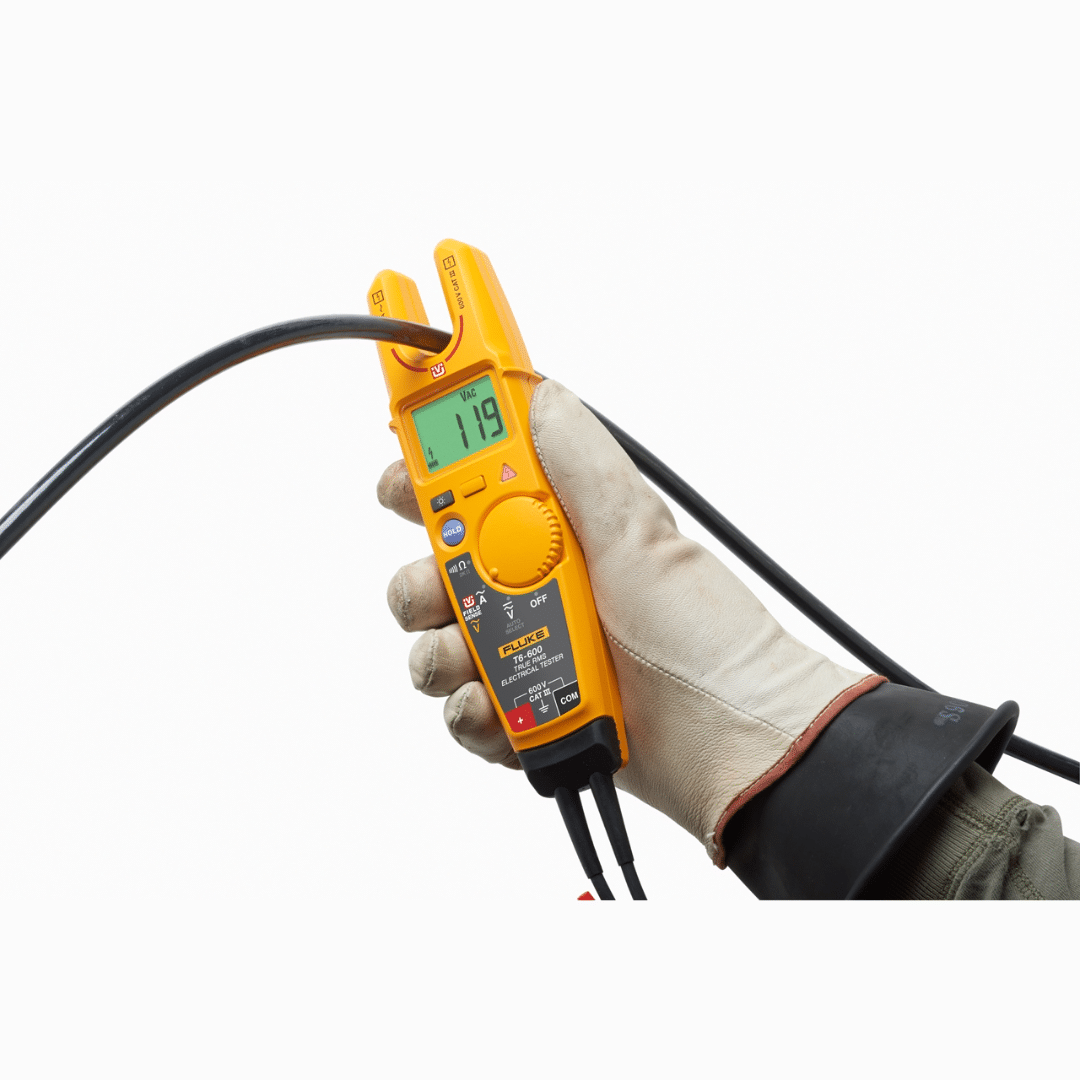

The Fluke T6-600 Electrical Tester stands out thanks to FieldSense function, allowing it to measure TRMS AC voltage from 0 to 600V via its fixed open fork and eliminating the need for test leads. The 17.8mm jaw allows the user to perform non-contact measurement on wires with a cross sectional area of up to 120mm2. FieldSense functionality can also measure TRMS AC current via the jaw from 0 to 200A whilst various parameters can be measured via the test leads including AC/DC voltage from 0 to 600V and resistance from 0 to 2000Ω. Each parameter is accurately and precisely measured resulting in reliable, high-resolution readings.

Readings are shown on the Fluke T6-600’s backlit digital display. A data hold function, meanwhile, allows the user to freeze a reading on screen and the test function is selected using the clearly labelled dial. The user can turn the screen backlight on or off and the tester is compatible with the Fluke TPAK magnetic hanger.

The Fluke T6-600 is very safe to use thanks to its non-contact measurement and it benefits from a Cat III 600V rating. Test leads and probes are supplied as standard alongside the tester.

  •  Measure voltage to 600 V ac through the open fork, without test leads.
  •  No need to open covers or remove wire nuts.
  •  Simultaneously measure voltage and current.
  •  17.8 mm open fork is widest in the industry; measure up to 200 A on 4/0 wires (120 mm2).
  • Go beyond simple detection. Actually, measure ac voltage and current values without test leads.

Product Highlights:

  • FieldSense technology for ac voltage, current, and frequency measurement without making electrical contact to live voltage
  • See voltage or current display – shows all power supply measurements at a glance for efficient troubleshooting
    1 to 600 V ac or dc (T6-600)
  • 0 to 200 A ac
  • True-RMS voltage and current
  • Resistance 1 Ω to 100 kΩ
  • Works with wires up to AWG 4/0 (120 mm2) with a 17.8 mm jaw opening
  • HOLD button temporarily freezes the reading for easy viewing
  • Easy to read display with backlight

FieldSense Technology:

Do not hold or touch the wire you are testing during a measurement. Use the black probe to make the ground connection if:

  • Wearing gloves or insulated footwear
  • Standing on an insulated ladder
  • Additional ground contact is required for the application

Function Requires
test leads
Range Resolution Accuracy[1]
FieldSense
ac voltage True-rms
No 600 V 1 V ±(3% 3 counts) 45 Hz – 66 Hz[2][3]
FieldSense
ac current True-rms
No 200.0 A 0.1 A ±(3% 3 counts) 45 Hz – 66 Hz
Volts ac True-rms Yes 600 V 1 V ±(1.5% 2 counts) 45 Hz – 66 Hz
Volts dc Yes 600 V 1 V ±(1% 2 counts)
Resistance Yes 2000 Ω 1 Ω ±(1% 2 counts)
Safety 600 V CAT III
Accuracy[1]: ± ( [ % of reading] [number of least significant digits] ). Accuracy is specified for 1 year after calibration, at 18 °C to 28 °C (64 °F to 82 °F) with relative humidity to 90 %. AC measurements are ac-coupled, RMS responding.
Accuracy[2]: Add 3 % without an external ground connection. External ground connection required for user wearing insulated gloves, standing on an insulated ladder, or otherwise insulated from earth ground.
Accuracy[3]: FieldSense is specified from 16 V to 100 % of range.
General Specifications
Calibration 1-year calibration cycle
Dimensions 61.1 x 259.3 x 43.8 mm
Jaw opening 17.8 mm
Weight 0.35 kg (0.78 lb)
Temperature
Operating:
Storage:


-10 °C to 50 °C (14 °F to 122 °F)
-30 °C to 60 °C (-22 °F to 140 °F)

Altitude
Operating:
Storage:


2,000 m (6,562 feet)
10,000 m (32,808 feet)

Relative Humidity 0% to 90%, 5 °C to 30 °C (41 °F to 86 °F)
0% to 75%, 30°C to 40 °C (86 °F to 104 °F)
0% to 45%, 40°C to 50 °C (104 °F to 122 °F)
Battery Type and Life 2 x AA (IEC LR6); 360 hours continuous, typical; 200 hours using FieldSense
Temperature coefficient 0.1 x (specified accuracy) / °C for <18°C or >28 °C
(< 64.4 °F or > 82.4 °F)
Safety IEC/EN 61010-1: Pollution Degree 2
Electromagnetic Environment IEC/EN 61326-1: Portable
  • Fluke T6-600 Voltage and Continuity Current Tester with FieldSense
