HIKMICRO Pocket2 Thermal Imaging Camera with Touchscreen & Wi-Fi
Original price was: £449.00.£399.00Current price is: £399.00. / £478.80 incl VAT
High-Resolution Imaging
Wide Temperature Range
8 MP Visual Camera
3.5” Touch Screen
3-Year Warranty
Only 2 left in stock
Description

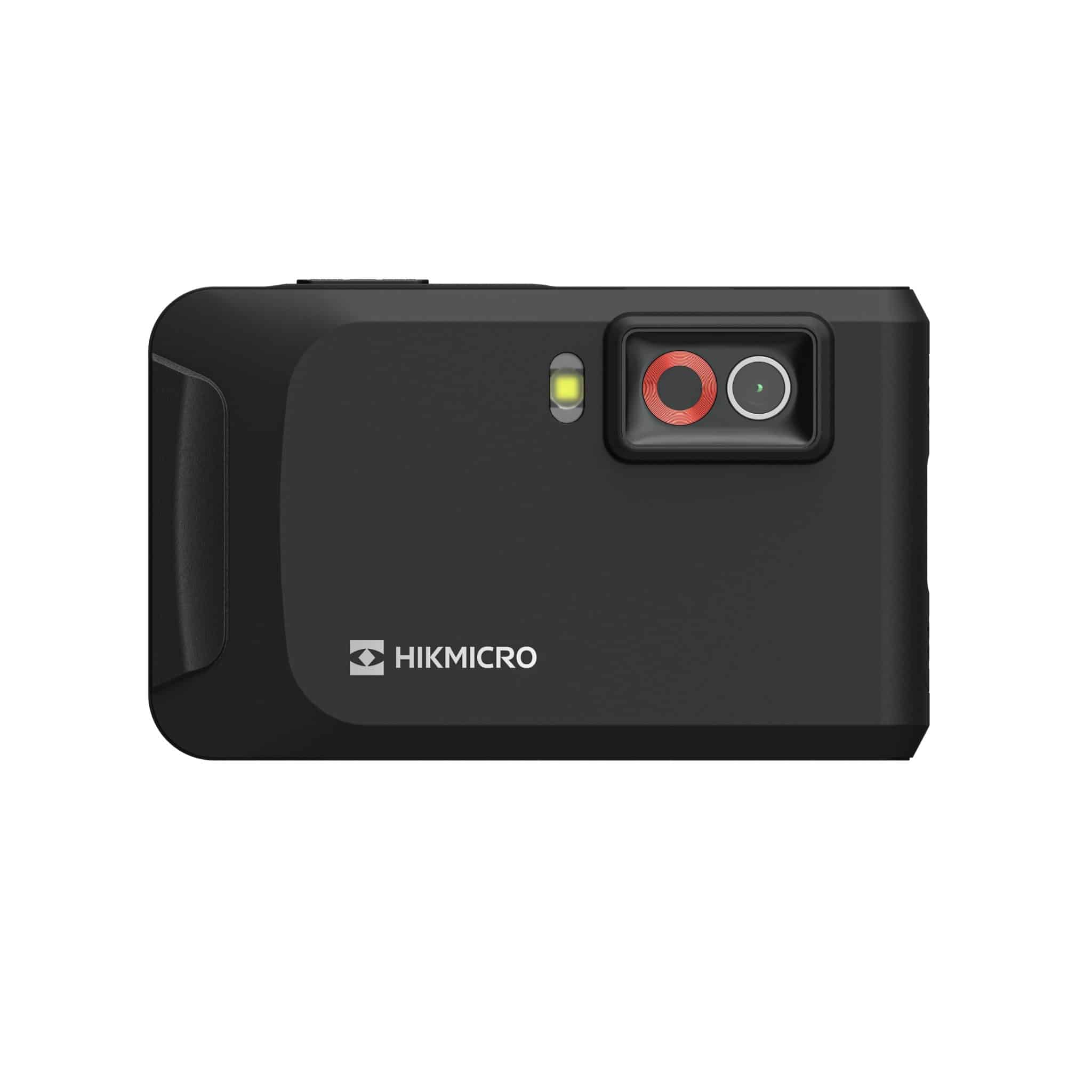

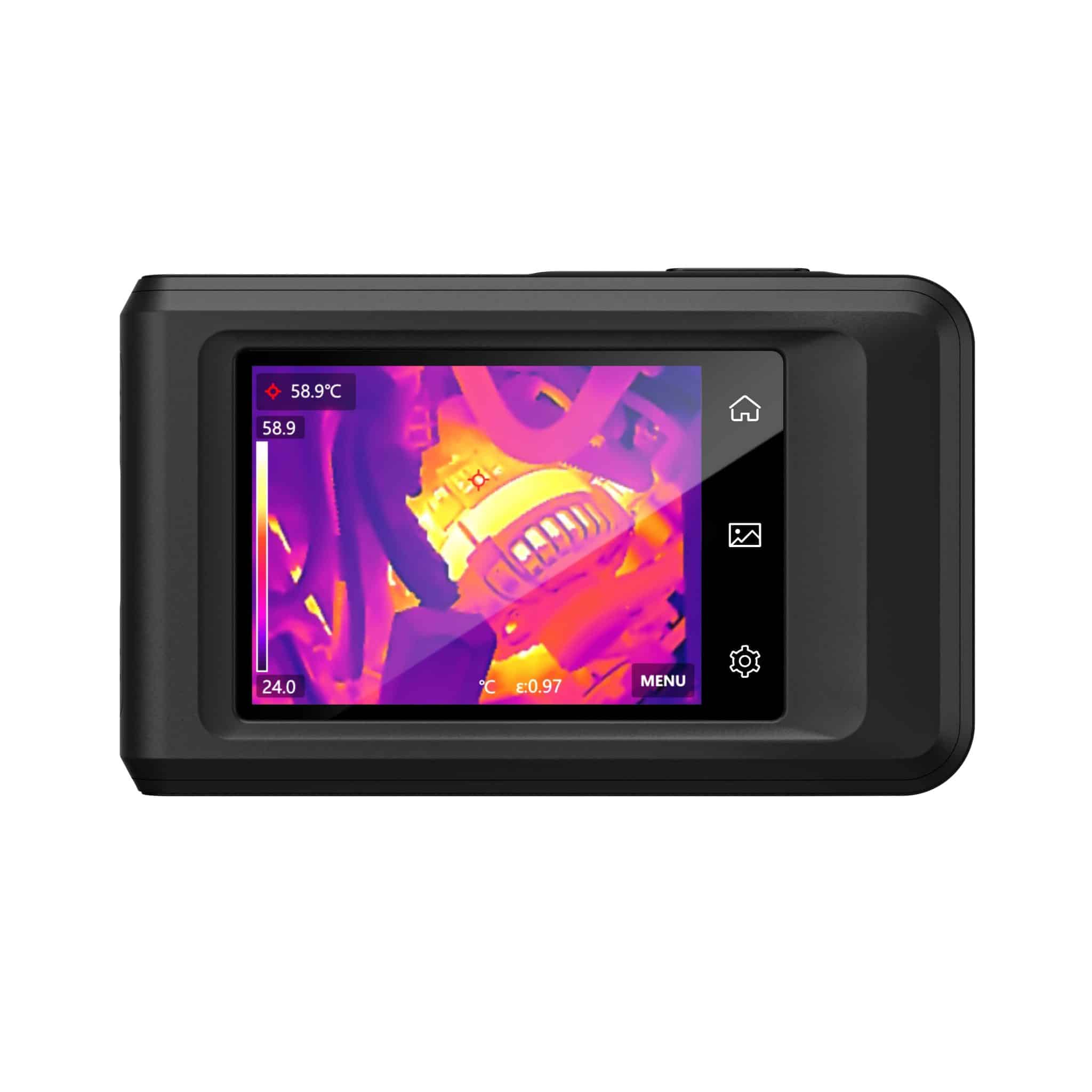

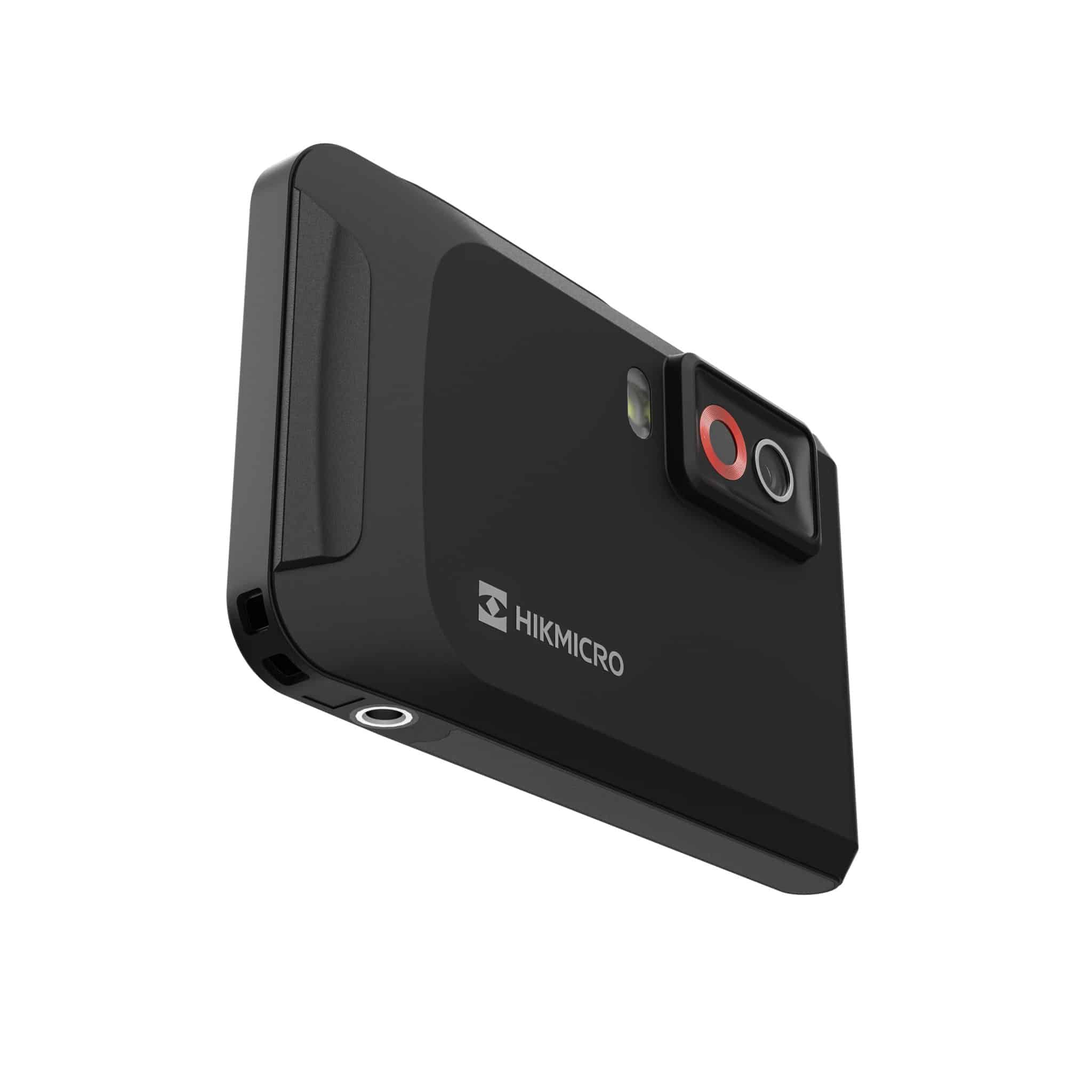

Hikmicro Pocket2 Thermal Camera
The Pocket2 Thermal Camera is a professional pocket-sized thermal imaging solution designed for fast fault detection and temperature measurement in the field. Equipped with a high-resolution VOx detector, optical imaging camera and touchscreen display, it helps engineers quickly identify hidden problems and abnormal heat patterns.
With a wide measurement range from -20°C to 400°C, the Pocket2 is suitable for building inspections, HVAC servicing, electrical diagnostics and mechanical maintenance. The 25 Hz frame rate supports smooth real-time inspection, while Wi-Fi connectivity allows users to share thermal images instantly.
Compact and powerful, the Pocket Series is designed to provide reliable thermography tools that can be carried and used whenever inspection work is required.
Key Features
• Thermal resolution: 256 × 192 (49,152 pixels), NETD: < 40 mK (@ 25°C, F# = 1.0)
• Temperature measurement range: -20°C to 400°C (-4°F to 752°F)
• Measurement accuracy: ±2°C or ±2% (whichever is greater)
• 25 Hz image refresh rate for smooth thermal viewing
• Multiple imaging modes – thermal, fusion, PIP and optical camera (8 MP)
• Manual, automatic and one-tap level/span adjustment
• High temperature alarm function
• Built-in 16 GB memory storage
• Integrated LED work light
• Continuous digital zoom from 1.0× to 4.0×
• Up to 4 hours continuous operation
What’s Included
• Quick Start Guide
• Power Supply
• USB Cable
• Carrying Pouch
• Wrist Strap
• 3-Year Warranty
| Category | Details |
|---|---|
| Infrared Image | |
| IR Resolution | 256 × 192 (49,152 pixels) |
| NETD | < 40 mK (@ 25°C, F# = 1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 3.6 mm |
| F-number | F1.0 |
| Field of View (FOV) | 56° × 42° |
| Spatial Resolution (IFOV) | 2.56 mrad |
| Min. Focus Distance | 0.3 m (0.98 ft) |
| Focus Mode | Focus Free |
| SuperIR | Yes, on captured thermal images |
| Image Display | |
| Display | 3.5” LCD Touch Screen, 640 × 480 Resolution |
| Screen Brightness | Manual Adjustment |
| Digital Zoom | 1.0x to 4.0x Continuous |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion |
| Image Modes | Thermal, Fusion, PIP, and Optical Modes |
| Visual Camera | 8 MP |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 400°C (-4°F to 752°F) |
| Accuracy | Max (±2°C/3.6°F, ±2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F) |
| Measurement Presets | Center Spot, Hot Spot, Cold Spot, User Preset Point |
| Level and Span Mode | Auto, Manual, and 1-Tap Touch-screen |
| Data Storage and Communication | |
| Storage Media | Built-in 16 GB Flash Memory |
| Image File Format | Radiometric JPEG |
| Video File Format | MP4 |
| Video Storage Capacity | Approx. 20 hours |
| Wi-Fi | 802.11 b/g/n (2.4GHz) |
| USB Interface | USB Type-C |
| Power and Battery | |
| Battery Type | Rechargeable Li-ion Battery |
| Battery Operating Time | Approx. 4 hours |
| Battery Charging Time | Approx. 2.5 hours (fully charged) |
| Power Supply | USB Type-C (5V/2A) |
| Power Saving Mode | Auto Power-off and Manual Sleep |
| General | |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 290 g (0.64 lb) |
| Dimensions | 138.5 × 85.2 × 23.6 mm (5.45 × 3.35 × 0.93 in) |
| Tripod Mounting | UNC 1/4”-20 |
Quick Start Guide
Power Supply
USB Cable
Carrying Pouch
Wrist Strap
- 3 Year Warranty
