Megger DPM1000 Power Clamp Meter – With UKAS Calibration Certificate


£450.00 / £540.00 incl VAT
- UKAS calibrated for full traceability and compliance
- 1000 V / 1000 A AC/DC measurement capability
- Power, harmonics & energy analysis in one instrument
- Bluetooth connectivity to Megger Link app
- CAT IV 600 V safety rated for supply‑side work
- Non‑contact voltage detection + built‑in LED torch
- Large backlit display with auto‑ranging
Only 1 left in stock
Description

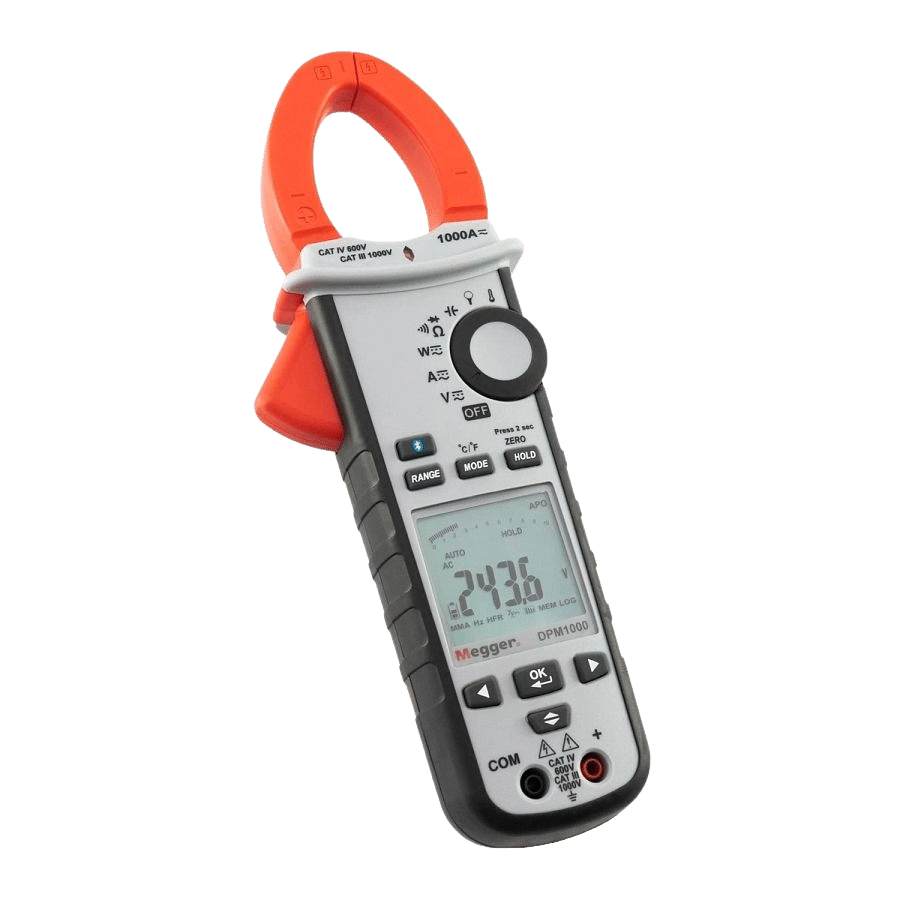

Megger DPM1000 Power Clamp Meter – UKAS Calibrated
Product Overview
The Megger DPM1000 is a high‑performance power clamp meter designed for professionals who need fast, accurate, and reliable electrical measurements. Combining the capabilities of a power meter, harmonics analyser, and data logger, it’s built for demanding applications in installation, maintenance, and power engineering environments.
This unit includes a UKAS Calibration Certificate, giving you full traceability and compliance for regulated industries — a major advantage over standard retail units.
Key Measurement Capabilities
- AC/DC Voltage: up to 1000 V
- AC/DC Current: up to 1000 A
- True RMS accuracy for precise readings
- Resistance: up to 100 kΩ
- Temperature: up to 1000 °C (thermocouple included)
- Power & Energy: real power, energy consumption, frequency, THD, distortion factor, capacitance
- Measures DC, AC, pulsed, and mixed currents
- Non‑contact voltage detection for quick live‑circuit identification
Advanced Features
- Bluetooth connectivity to the Megger Link app for data transfer and reporting
- Three‑phase rotation indication
- Auto‑ranging for ease of use
- Data Hold / Min / Max / Peak Hold functions
- Bright LED torch for low‑light environments
- Continuity beeper
- Auto power‑off to preserve battery life
- Large backlit LCD display with clear, intuitive readout
- CAT IV 600 V safety rating (BSEN 61010‑1 compliant)
What’s Included
- Megger DPM1000 Power Clamp Meter
- UKAS Calibration Certificate
- Test leads
- Thermocouple probe
- Carry case
- Carrying holster/pouch
- Digital user manual (available online)
Why Choose This Unit?
- Exceptional value
- Includes UKAS calibration, typically worth £80–£120
- Ideal for electricians, commissioning engineers, and maintenance teams
- Perfect for mains power quality analysis, troubleshooting, and power electronics work
Technical Summary
The DPM1000 is engineered for supply‑side applications and meets CAT IV 600 V safety requirements. Its clamp design allows current measurement without breaking the circuit, while simultaneous voltage and current measurement enables full power analysis. With built‑in harmonics measurement, data logging, and app connectivity, it’s a versatile tool for modern electrical diagnostics.
Megger part number 1013-356 + 1013-696
Technical specifications
- Current measuring range (AC)
- 0 – 1000 A
- Current measuring range (DC)
- 0 – 1000 A
- Electrical measurement category
- CAT III 1000 V
- Electrical measurement category
- CAT IV 600 V
- Max resistance reading
- 100kΩ
- Voltage measuring range (AC)
- 0 – 1000 V
- Voltage measuring range (DC)
- 0 – 1000 V

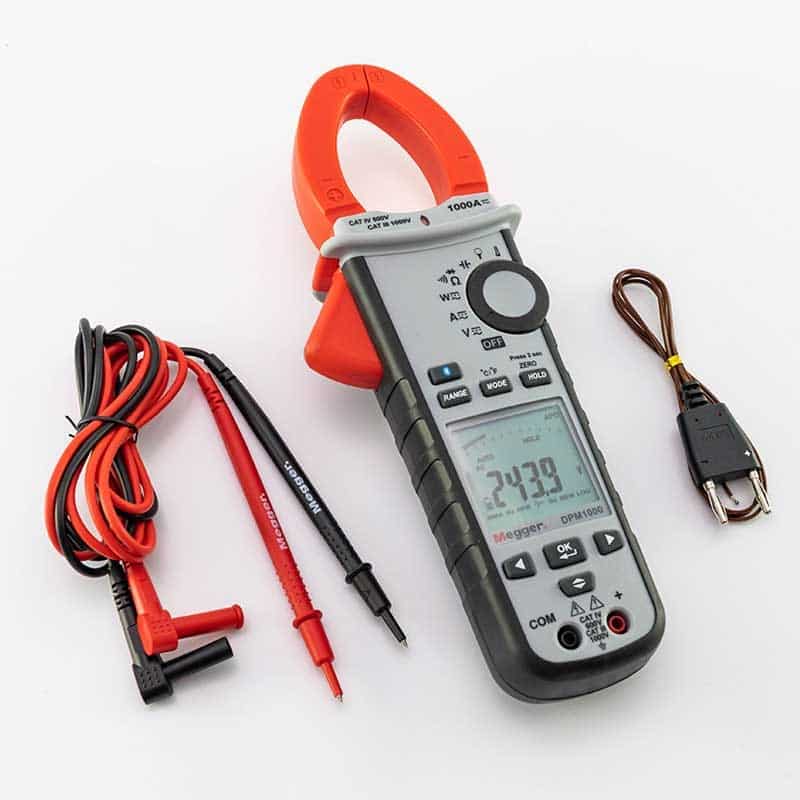

1. Megger DPM1000 Power Clamp Meter
2. Test lead set (one black, one red)
3. Test probes (one black, one red)
4. Crocodile clips (one black, one red)
5. TP100 Temperature probe
6. User Manual
7. Carry case
8. Batteries
