Seaward PV200 Solar PV Testing Complete Kit – 389A915

Seaward

Original price was: £3,063.00.Current price is: £2,879.00. / £3,454.80 incl VAT

⚡ Lightweight, handheld tester for comfortable use
⚡ Affordable, efficient comprehensive PV diagnostic tool
⚡ Easy to use – fast, push-button operation
⚡ All-in-one – performs all commissioning tests and IV-curve tracing in accordance with IEC 62446 and IEC 61829
⚡ Test individual PV modules or strings

In stock (can be backordered)

Price Pledge
SKU: SEA-PV200-KIT Categories: , , Tags: , , , Brand:

Description

Seaward PV200 Solar PV Complete Testing Kit (389A915)

A compact solar PV tester with I-V curve tracing

The PV200 is a compact & cost effective I-V curve tracer that uses simple push button operation making it an efficient and versatile tester for PV systems.

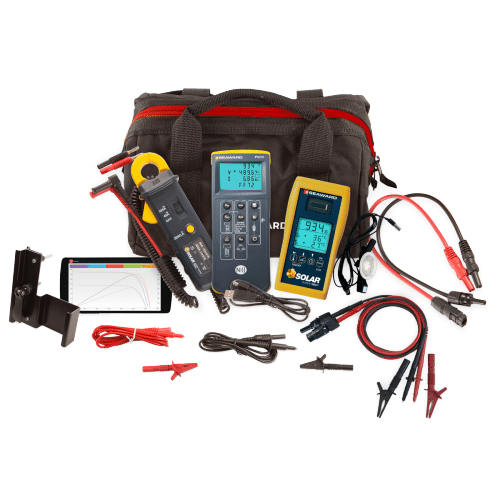

A complete kit for professional solar installers. Includes all of the following:

  • Seaward PV200 PV Tester & I-V Curve Tracer
  • Seaward Survey 200R Multifunction Irradiance Meter
  • Suction Mount PV Module Temperature Sensor
  • Mounting Bracket

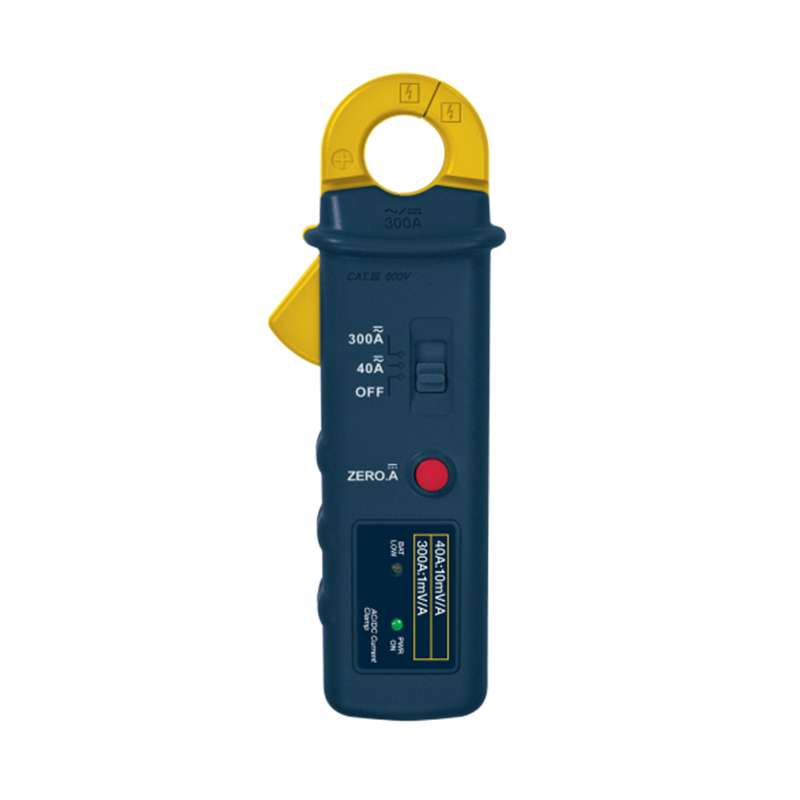

  • AC/DC Current Clamp
  • 2 x MC4 Test Leads (Red and Black)
  • 2 x 1.5m, 4mm Test Leads, Probes and Alligator Clips
  • Type A to mini B USB Cable
  • 6 x Alkaline Batteries (1.5V, AA)
  • Quick Start Guide
  • Rugged Carrying Bag
  • PV200 Calibration Certificate
  • Seaward SolarCert Elements V2 Software

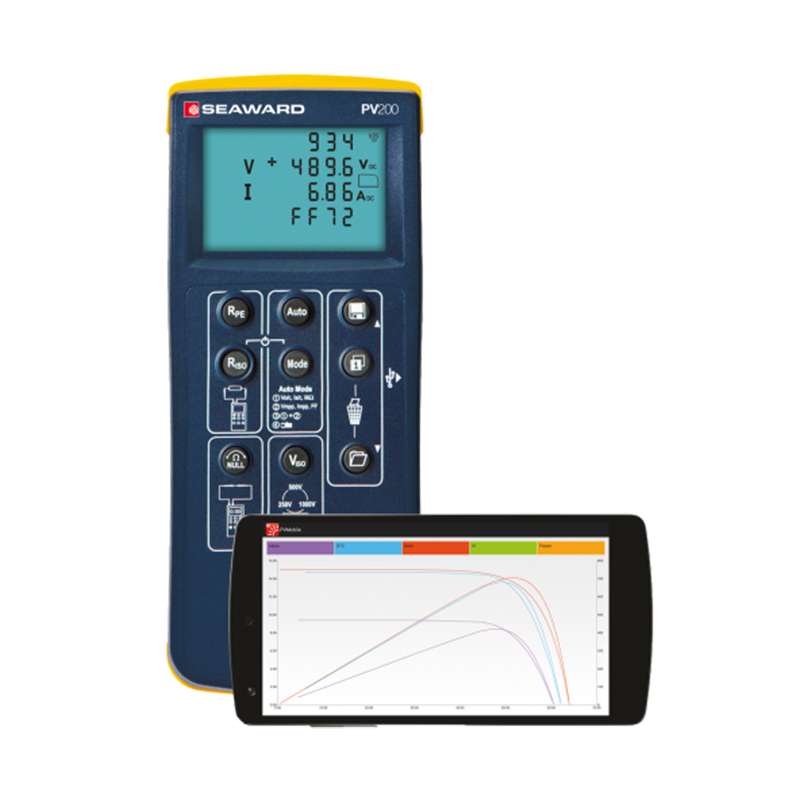

About the Seaward PV200 Solar PV Tester

Seaward’s powerful photovoltaic tester will help you test everything faster than ever.

Fully in compliance with IEC 61829 and IEC 62446, the Seaward PV200 is equipped to test Voc, IOC, insulation and ground bonding. With full downloadable memory included and download to PC via a USB connection, the PV200 is ideal for cataloguing all of your measurement results

Key features include:

  • Full traceability of system performance
  • Compatible with SolarCert Elements V2 software (sold separately)
  • The screen can be viewed even in direct sunlight
  • Earth/earth continuity measurements
  • Insulation resistance measurements (auto short circuit and point to point)
  • AC/DC voltage measurements
  • Open circuit voltage up to 1000V DC
  • Maximum power point voltage up to 1000V DC
  • Short circuit current up to 15A DC
  • Maximum power point current up to 15A DC
  • Automatic fill factor calculation
  • Operating current (requires included current clamp) up to 40A
  • DC power measurements up to 40kW
  • Ideal for all PV system installers, PV O/M technicians and PV module manufacturers

About the Seaward Survey 200R Multifunction Irradiance Meter

More than just a standard irradiance meter, Seaward’s 200R is ideal for measuring roof pitch, roof orientation and ambient air conditions such as temperature to ensure all solar equipment is installed correctly and to a high standard.

The 200R is the upgraded version of the Solar Survey 100 with built-in datalogging capabilities and USB interface for downloading to PC.

Key features:

  • Measures irradiance levels
  • Measures ambient temperature
  • Measures roof pitch and orientation
  • Rugged, durable device
  • Suitable for use for continuous measurements
  • Store up to 5000 test records
  • SolarLink technology allows the device to wirelessly interface with Seaward PV150 Solar Installation Tester
  • LCD display
  • Battery life lasts for more than 20000 readings
  • Auto shut down when left idle for two minutes
  • Selectable sampling rate when capturing data
  • USB port for downloading stored testing data

What’s Included:

  • Seaward PV200 PV Tester & I-V Curve Tracer
  • Seaward Survey 200R Multifunction Irradiance Meter
  • Suction Mount PV Module Temperature Sensor
  • Mounting Bracket
  • AC/DC Current Clamp
  • 2 x MC4 Test Leads (Red and Black)
  • 2 x 1.5m, 4mm Test Leads, Probes and Alligator Clips
  • Type A to mini B USB Cable
  • 6 x Alkaline Batteries (1.5V, AA)
  • Quick Start Guide
  • Rugged Carrying Bag
  • PV200 Calibration Certificate
  • Seaward SolarCert Elements V2 Software

Seaward PV200 Technical Specifications

Earth Continuity/Resistance Measurements
Display Range 0.00 to 199Ω
Measurement Range 0.01Ω to 199Ω
Accuracy 2% + 5 digits
Resolution 0.01Ω maximum
Open Circuit Test Voltage 4V DC, nominal
Test Leads Zero Zero up to 10Ω, by zero button
Number of Measurements 5,000 1 second tests
Audible/Visual Warning ≤30V AC/DC at inputs
User Protection Test inhibited if ≤ 30V AC/DC at inputs
Insulation Resistance (Auto Short Circuit Test)
Display Range 0.1MΩ to 20MΩ
Measurement Range 0.1MΩ to 20MΩ
Accuracy 5% + 5 digits
Resolution 0.1MΩ maximum
Open Circuit Test Voltage 250, 500, 1000V (as per IEC 61557-2)
Test Current 1mA nominal as per IEC 61557-2
Short Circuit Test Current <2mA
Number of Measurements 5000 1 second tests
Audible/Visual Warning ≥ 30VAC/DC at inputs
User Protection Test inhibited if ≥ 30VAC/DC at inputs
Insulation Resistance (Point to Point)
Display Range 0.05MΩ to 300MΩ
Measurement Range 0.05MΩ to 300MΩ
Accuracy 5% + 5 digits
Resolution 0.01MΩ maximum
Open Circuit Test Voltage 250, 500 and 1000V (as per IEC 61557-2)
Short Circuit Test Current <1mA
Number of Measurements 5000 1 second tests
Audible/Visual Warning ≤30V AC/DC at inputs
Circuit Protection Test inhibited if ≥30V AC/DC at inputs
Voltage Measurements (via 4mm Probes)
Display Range 30V to 440V AC/DC
Measurement Range 30V to 440V AC/DC
Resolution 1V
Accuracy ±(5%+2d)
Vo/c Voltage Measurements (via PV Test Leads)
Display Range 0.0 to 1000V DC
Measurement Range 5.0V to 1000V DC
Resolution 0.1V
Accuracy ±(0.5%+2d)
Enunciators DC voltage polarity correct or reversed
Is/c Current Measurements (via PV Test Leads)
Display Range 0.0 to 15.0A DC
Measurement Range 0.5 to 15.0A DC
Resolution 0.1A
Accuracy ±(5% + 2 digits)
Operating Current (Via DC Current Clamp)
Display Range 0.0 to 40.0A AC/DC
Measurement Range 0.1A to 40.0A AC/DC
Resolution 0.1A
Accuracy ±(5%+2 digits)
DC Power
Display Range 0.0 to 40.0kW
Measurement Range 10W to 40.0kW
Resolution 10W max
Accuracy ±(6% + 2 digits)
I-V Curve
Voltage Measurement Range 5.0 to 1000V
Voltage Measurement Accuracy ±(0.5%+2d)
Current Measurement Range 0.5 to 15.0A
Current Measurement Accuracy 1%
Power Measurement Range 5W to 15kW
Power Measurement Accuracy 2%
General Specifications
Weight 1.05kg
Dimensions 265 x 108 x 58mm
Display Custom LCD with backlight
Power Source 6 x 1.5V AA cells
Battery Life >1000 test sequences
Auto Power Down User-programmable
Onboard Memory Up to 999 complete test datasets
Connectivity USB download to PC (CSV format)
Wireless Solarlink to Survey 200R (344MHz) (range c. 30m / 100ft)
NFC transfer of data to PVMobile Android app
  • Seaward PV200 PV Tester & I-V Curve Tracer
  • Seaward Survey 200R Multifunction Irradiance Meter
  • Suction Mount PV Module Temperature Sensor
  • Mounting Bracket
  • AC/DC Current Clamp
  • 2 x MC4 Test Leads (Red and Black)
  • 2 x 1.5m, 4mm Test Leads, Probes and Alligator Clips
  • Type A to mini B USB Cable
  • 6 x Alkaline Batteries (1.5V, AA)
  • Quick Start Guide
  • Rugged Carrying Bag
  • PV200 Calibration Certificate
  • Seaward SolarCert Elements V2 Software
