Fluke A3001 FC Wireless iFlex AC Current Clamp Kit

Fluke

£477.00 / £572.40 incl VAT

⚡ 3 year warranty from Fluke
⚡ Part of the Fluke Connect® team of wireless test tools
⚡ AC and DC voltage measurements to 1000V
⚡ AC and DC current with 0.01 mA resolution
⚡ Continuity, resistance, diode test, capacitance and frequency measurements
⚡ MIN/MAX recording
⚡ CAT III 1000 V, Cat IV 600 V; IP54
Price Pledge

Add Soft Carry Case?

Some Multimeters don’t come with a carry case that’s why we’ve added the perfect cases to go with you brand new multimeter, simply click to select.
(PLEASE CHECK THE PRODUCT YOU’RE BUYING IS NOT ALREADY SUPPLIED WITH A CASE)

None Leaderman LDM-C25 small Carry Case +£15.00 Leaderman LDM-C115 Large Carry Case +£22.00 Fluke C50 Meter Small Carry Case +£42.50 Fluke C25 Large Soft Carry Case +£47.50

Calibration Certificate

Add Calibration on your Clamp Meter.

Calibration Certificate

Add Calibration to your Multimeter.

SKU: FLU-A3001FC-KIT Categories: , , , Brand:

Description

Fluke A3001 FC Wireless iFlex® AC Current Clamp Kit

Fluke a3001 FC Wireless iFlex® AC Current Clamp Kit is part of the Fluke Connect® team of wireless test tools

Connect the a3001 FC Wireless AC Current Module and flexible current probe to your test point, and view the results up to 20 meters away on the 3000 FC Wireless Digital Multimeter.

You’ll save time, with less run-around collecting multiple measurements. Use multiple modules for measurements on three-phase systems, as a stand-alone measurement tool or combine with other Fluke Connect™ modules as a system for multiple measurements.

From short distances, you can even view readings from modules through closed electrical panels. Plus no more writing down data as the FC Wireless AC Current Module captures up to 65,000 sets of time stamped min/max/avg readings, using the optional PC adapter. Fluke Connect wireless test tools also offer increased safety by letting you view readings in a separate location from the test point.

Now you can take readings on moving machinery, with only the measurement module in harm’s way.

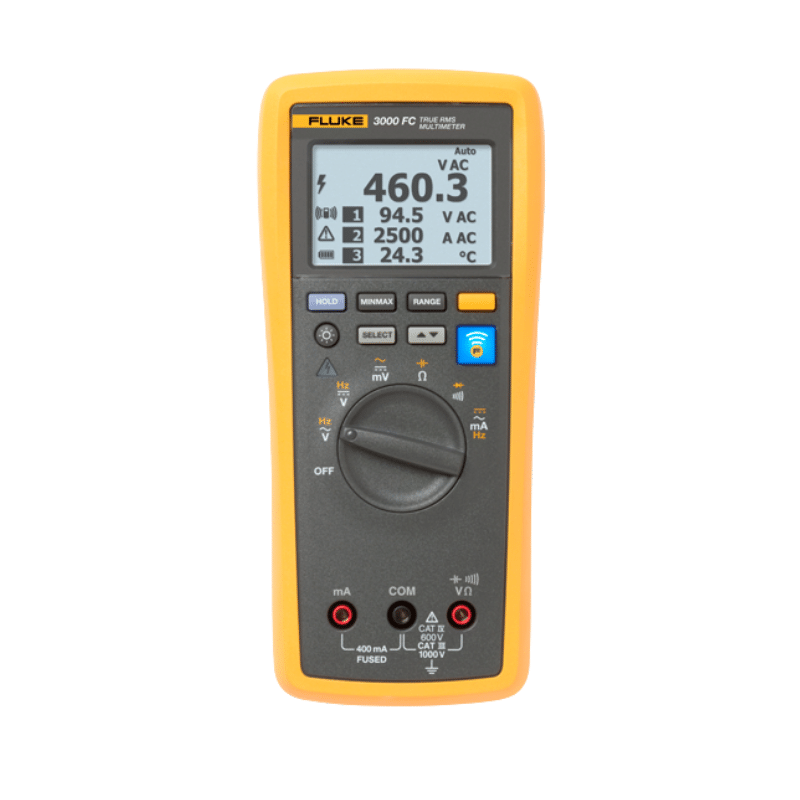

Fluke 3000 FC Series Wireless Digital Multimeter

Part of Fluke’s Connect range, the 3000 FC allows the user to gain wireless readings from compatible Fluke Connect modules (including the A3001 FC Wireless iFlex AC Current Module), making testing easier, safer and even allowing direct measurements of electrical properties in usually inaccessible areas such as electrical panels.

CAT IV 600V and CAT III 1000V rated for use in even the toughest of environments, this multimeter delivers reliable, accurate results with high basic accuracy of just 0.09%. It’s true RMS as well and will still deliver accurate measurement even when used with non-sinusoidal waveforms.

The Fluke 3000 FC allows the user to carry out measurements of AC and DC voltage to 1000V, resolution to 50MΩ, capacitance to 9999μF, AC/DC current to 400mA and frequency, diode and continuity testing. The range and functions of this instrument can be further expanded by connecting to Fluke’s Connect remote modules (range depends on connected module type).

Fluke Connect – Wireless, Safe Measurements
Don’t risk your safety when testing; with Fluke Connect, users can carry out wireless measurements up to 20m away from connected remote modules! All you’ll need to use Fluke Connect is a Fluke remote module, a 3000 FC wireless multimeter, Fluke’s PC adaptor or an Android/Apple mobile device that’s running Fluke’s new Connect app.

The following video outlines the functionality of Fluke Connect:

With the ability to do everything from storing images and creating a comprehensive wireless monitoring network, Fluke Connect opens up testing like never before.

Fluke 3000 FC Series Wireless Digital Multimeter Key Features

  • Connect wirelessly to smartphones running Fluke Connect app
  • Wireless interfacing with Fluke remote modules (sold separately)
  • Compatible modules: iFlex True RMS AC Current Clamp Module, True-RMS AC Current Clamp Module, AC Voltage Module, K-Type Temperature Module, AC/DC Current
  • Clamp Module, DC Voltage Module, PC Adapter
  • AC/DC voltage measurements to 1000V
  • Resistance measurements to 50MΩ
  • Diode and capacitance testing
  • DC/AC current measurements to 400mA
  • Frequency measurements to 99.99kHz
  • 250 hour average battery life



Fluke a3001 FC Wireless iFlex AC Current Module

The Fluke a3001 FC Wireless iFlex AC Current Module is a fully functional true-rms current meter that wirelessly relays measurements to the Fluke Connect® mobile app.

The A3001 puts the tool, not your body, near live electrical panels. Connect the a3001 FC current module and read the results on your smartphone from a safe distance. You can save and share measurements from the field with your team anytime, from anywhere.

Leave your A3001 connected to log measurements and walk away to address other issues. Download the data for further analysis on our phone. Record over time to monitor circuit load changes for an hour, a shift or a week. Use the Fluke Connect wireless USB adapter to collect logged data from remote modules by walking past a working module and downloading logged data.

When your cabinet is de-energised, attach a Fluke a3001 FC Wireless iFlex AC Current Module to each phase. Close, re-energise and start taking readings in 1/3 of the time. What used to take hours and use costly equipment can be done in minutes with an affordable Fluke Connect wireless system.

Log, analyse, and diagnose easily You can solve problems faster by seeing live measurements from multiple test points on a single screen. Send data from the panel to your laptop and go from logging to analysis and diagnosis with the a3001 connected. Once you’ve gathered the measurements, you can perform for analysis with your PC and share the results using Fluke Cloud™ storage and ShareLive™ video call. Share and view data or graphs to get input from team members.

Fluke A3001 FC Wireless iFlex AC Current Module Key Features

  • The iFlex™ Wireless Current Meter allows you to measure around awkward sized conductors or get into tight spaces and makes wire access easier
  • Measure up to 2500 A ac
  • Use as a standalone meter or as part of the system
  • Logging function for recording and saving up to 65,000 readings
  • Inrush function
  • Magnetic hanging strap
  • A true-rms current clamp meter that wirelessly relays measurements to other Fluke Connect™ enabled master units, listed below;
    • Fluke 3000 FC DMM
    • Fluke TiX560/520 Infrared Camera
    • Fluke Ti200/300/400 Infrared Camera
    • PC via optional pc3000 FC Adapter
    • Fluke Connect Mobile app

Specifications: Fluke a3001 FC Wireless iFlex® AC Current Clamp Kit

Fluke 3000 FC Series Wireless Multimeter

* For all specifications: accuracy is specified for one year after calibration, at operating temperatures of 18°C to 28°C, with relative humidity at 0% to 90%. Accuracy specifications take the form of ±([% of Reading ] + [ Number of least significant digits ]).

AC Voltage
Range¹ / resolution 600.0 mV / 0.1 mV
6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V
1000 V / 1 V
Accuracy2 3 4 45 Hz to 500 Hz 1.0% + 3
500 Hz to 1 kHz 2.0% + 3
1. All AC voltage ranges are specified from 1% of range to 100% of range.
2. Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V. 3. For non-sinusoidial waveforms, add ±(2% of reading + 2% full scale) typical, for crest factor up to 3. 4. Do not exceed 107 V-Hz.
DC Voltage, Continuity, Resistance, Diode Test and Capacitance
mV Range / resolution 600.0 mV / 0.1 mV
Accuracy 0.09% + 2
V Range / resolution 6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V
1000 V / 1 V
Accuracy 0.09% + 2
0.15% + 2
))) Range / resolution 600 Ω / 1 Ω
Accuracy Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer.
Ω Range / resolution 600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ
60.00 kΩ / 0.01 kΩ
60.00 kΩ / 0.1 kΩ
600.0 kΩ / 0.001 MΩ
50.00 MΩ / 0.01 MΩ
Accuracy 0.5% + 2
0.5% + 1
1.5% + 3
Diode test Range / resolution 2.000 V / 0.001 V
Accuracy 1% + 2
µF Range / resolution 1000 nF / 1 nF
10.00 μF / 0.01 μF
100.0 μF / 0.1 μF
9999 μF1 / 1 μF
Accuracy 1.2% + 2
10% typical
1. In the 9999 μF range for measurements to 1000 μF, the measurement accuracy is 1.2% + 2.
AC and DC Current
mA AC
(45 Hz to 1 kHz)
Range1 / resolution 60.00 mA / 0.01 mA
400.0 mA3/ 0.1 mA
Accuracy 1.5% + 3
mA DC2 Range1 / resolution 60.00 mA / 0.01 mA
400.0 mA3/ 0.1 mA
Accuracy 0.5% + 3
1. All AC current ranges are specified from 5% of range to 100% of range.
2. Input burden voltage (typical): 400 mA input 2 mV/mA.
3. 400.0 mA accuracy specified up to 600 mA overload.
Frequency
Range / resolution 99.99 Hz / 0.01 Hz
999.9 Hz / 0.1 Hz
9.999 kHz / 0.001 kHz
99.99 kHz / 0.01 kHz
Accuracy1 0.1% + 1
1. Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps.
Input Characteristics
Overload protection 1100 Vrms
Input impedance (nominal) > 10 MΩ < 100 pF
Common mode rejection ratio
(1 kΩ unbalance)
> 120 dB at DC, 50 Hz or 60 Hz
Normal mode rejection > 60 dB at 50 Hz or 60 Hz
Overload protection 1100 Vrms
Input impedance (nominal) > 10 MΩ < 100 pF
Common mode rejection ratio
(1 kΩ unbalance)
> 60 dB, DC to 60 Hz
Normal mode rejection > 60 dB at 50 Hz or 60 Hz
Overload protection 1100 Vrms
Input impedance (nominal) > 10 MΩ < 100 pF
Common mode rejection ratio
(1 kΩ unbalance)
> 120 dB at DC, 50 Hz or 60 Hz
Normal mode rejection > 60 dB at 50 Hz or 60 Hz
Open Circuit Test Voltage
Overload protection 1100 Vrms
Input impedance (nominal) < 2.7 VDC
Full scale voltage to 6 MΩ
Full scale voltage 50 MΩ
< 0.7 VDC < 0.9 VDC
Typical short circuit current < 350 mA
Overload protection 1100 Vrms
Input impedance (nominal) < 2.7 VDC
Full scale voltage to 6 MΩ
Full scale voltage 50 MΩ
2.000 VDC
Typical short circuit current < 1.1 mA
mA Function
Overload protection Fused, 44/100 A, 1000 V FAST Fuse
Overload 600 mA overload for 2 minutes maximum, 10 minutes rest minimum
MIN/MAX Recording Accuracy
DC functions ±12 counts for changes > 350 mS in duration.
AC functions ±40 counts for changes > 900 mS in duration.
General Specifications
Maximum voltage between any terminal and earth ground 1000 VDC or AC rms
Ω fuse protection from A inputs 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only
Display (LCD) Update rate 4/sec
Volts, amps, ohms 6000 counts
Frequency 10,000 counts
Capacitance 1,000 counts
Battery type Three AA Alkaline batteries, NEDA 15A IEC LR6
Battery life 250 hours minimum
RF communications 2.4 GHZ ISM Band
RF communication range Open air, unobstructed Up to 20 m
Obstructed, sheetrock wall Up to 6.5 m
Obstructed, concrete wall, or steel electrical enclosure Up to 3.5 m
Temperature Operating -10°C to 50°C
Storage -40°C to 60°C
Temperature coefficient 0.1 x (specified accuracy) / °C (< 18°C or > 28°C)
Relative humidity 0% to 90% (0°C to 35°C)
0% to 75% (35°C to 40°C)
0% to 45% (40°C to 50°C)
Altitude Operating 2,000 m
Storage 12,000 m
Electromagnetic compatibility
EMI, RFI, EMC, RF
EN 61326-1:2006, EN 61326-2-2:2006
ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489
V1.8.1:2008
FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249
FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE
Safety compliance ANSI/ISA 61010-1 / (82.02.01): 3rd edition
CAN/CSA-C22.2 No 61010-1-12: 3rd edition
UL 61010-1: 3rd edition
IEC/EN 61010-1:2010
Certifications CSA, FCC, CE
Ingress Protection (IP) rating IP54
Pollution Degree 2
Size (H x W x L) 4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in)
Weight 340 g (12 oz)
Warranty Three years
Not compatible with Fluke CNX test tools

Fluke a3001 FC Wireless iFlex® AC Current Module

Specifications
Range 0.5 A to 2500 A AC
Resolution 0.1 A
Accuracy 3% ±5 digits (5 Hz to 500 Hz)
Crest factor (50 Hz / 60 Hz) 3.0 at 1100 A
2.5 at 1400 A
1.42 at 2500 A
Add 2% for C.F. > 2
LCD w/ backlight 3½ digits
Log rate/interval 1 sec minimum/adjustable by PC or front panel
Battery type 2 AA, NEDA 15 A, IEC LR6
Battery life 400 hours
Memory Record up to 65,000 readings
RF communications 2.4 GHZ ISM Band
RF communication range Open air, unobstructed Up to 20 m
Obstructed, sheetrock wall Up to 6.5 m
Obstructed, concrete wall or steel electrical enclosure Up to 3.5 m
Operating temperature -10°C to +50°C
Storage temperature -40°C to +60°C
Temperature coefficient Add 0.1 x (specified accuracy) / °C (< 18°C or > 28°C)
Operating humidity 90% at 35°C
75% at 40°C
45% at 50°C
Altitude Operating 2,000 m
Storage 12,000 m
EMC EN 61326-1:2006
Safety compliance IEC 61010-1, 600 V CAT IV/1000 V CAT III, 3rd edition
Safety rating CAT IV 600 V, CAT III 1000 V
Certifications CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
Ingress Protection (IP) rating IP42
Pollution Degree 2
Jaw opening 25.4 cm (10 in) coil
Size (H x W x D) 16.5 x 6.35 x 1.4 cm (6.5 x 2.5 x 1.4 in)
Weight .22 kg (8 oz)
Warranty Three years
Not compatible with Fluke CNX test tools

Includes:

  • Fluke 3000 FC Series Wireless Multimeter
  • Fluke a3001 FC Wireless iFlex AC Current Module
  • TL175 Test Leads
  • AC175 Alligator Clips
  • iFlex i2500-10 Flexible Current Probe
