Red and black leads with 4mm terminals and MC4 connectors Adaptors included to convert to MC3 connections Suitable for Megger PVM210, PVK320 and PVK330 solar test equipment
Megger PVM210 Irradiance Meter Megger DCM340 600A AC/DC Clamp Meter Standard silicone test leads for DCM340 4mm plug to MC4 connector test leads (1.3m) MC4- to MC3- type adaptor test leads (0.2m) Soft carry case

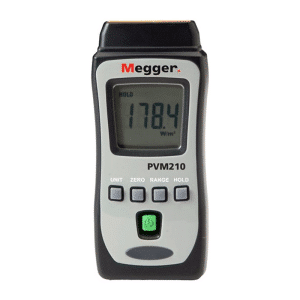

⚡ Designed for solar/photovoltaic sector applications, the Megger PVM210 Irradiance Meter offers portability and one-handed operation for ease of use in various locations. ⚡ Features a clear 3.75” LCD screen with a hold function for freezing readings, ensuring accurate data collection during solar power measurements. ⚡ Can be paired with an ammeter to provide short circuit current values, aiding in…
⚡ Designed for testing Mode 3 EVSE with a type 2 connector. ⚡ Supports 3-phase load testing up to 13A for accurate testing of EVSE performance. ⚡ Detects multiple error types, including PE open, ensuring comprehensive safety checks. ⚡ Compatible with Metrel AutoSequences® for automated state-by-state testing of the EVSE station. ⚡ Enables the creation of professional station-based reports with…
⚡ Monitors AC EV charging up to 32 A EVSE. ⚡ Observes CP signal communication, PP resistance, current, and voltage during charging. ⚡ Connects to instruments for voltage and current verification. ⚡ Simulates external loads up to 13 A to verify EVSE counters. ⚡ Compliant with standards: EN 61851, HD 60364-6, EN 60364-7-722, EN 61326, IEC/EN 61010-1, EN 61010-2-030, EN…

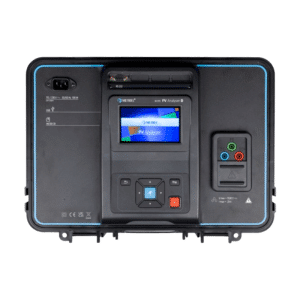

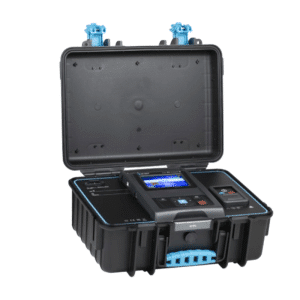

⚡Autotest Function: One-button testing ensures compliance with IEC 62446-1. ⚡Advanced Measurement Range: Uoc up to 1500 V and Isc up to 40 A. ⚡Wireless Monitoring: Remote unit for real-time irradiation and temperature measurements. ⚡STC Calculations: Results adjusted to STC values for performance comparisons. ⚡Professional Reporting Software: Includes Metrel ES Manager for efficient data handling and compliance reports.
⚡ Autotest function for streamlined, one-button testing of PV systems in compliance with IEC 62446-1. ⚡ Measures Open Circuit Voltage (Uoc) and Short Circuit Current (Isc) up to 1500 V and 40 A. ⚡ Wireless remote unit for real-time measurement of irradiation and module temperature. ⚡ Calculates results to STC values and compares with nominal manufacturer data. ⚡ Includes Metrel…

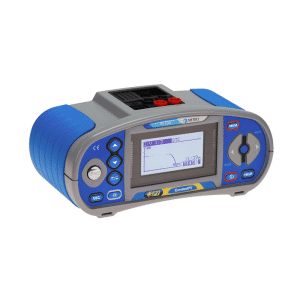

⚡ Autotest functionality for one-button EN 62446 compliance testing ⚡ Performs voltage, current, power, and insulation resistance measurements ⚡ I-U curve tracing and efficiency calculations for PV modules and systems ⚡ Dual channels for simultaneous AC and DC parameter testing ⚡ Includes Metrel A1378 remote for real-time solar irradiation and temperature measurements

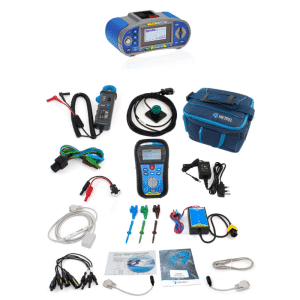

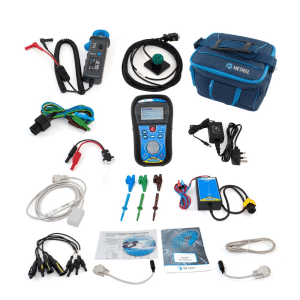

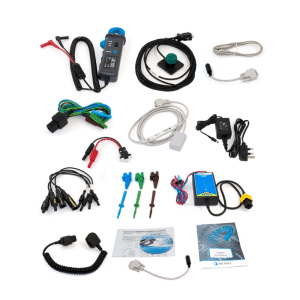

⚡ Autotest function for quick one-button testing and PV system verification ⚡ Performs I-V curve tracing and electrical safety tests for PV installations ⚡ Measures Open Circuit Voltage and Short Circuit Current with supplied DC clamp ⚡ Optional probes for irradiance and module temperature measurements ⚡ Graphical I-V curve representation and report generation via EuroLink PRO software
⚡ Insulation and I/U measurement capability up to 1500V, with integrated STC value calculations. ⚡ Wireless remote unit for logging irradiation and cell temperature of PV modules in real-time. ⚡ Large colour touch screen for easy control, data review, and test execution with graphical/numerical results. ⚡ Auto test sequences for Category 1 tests, with correction options for previously entered parameters.…

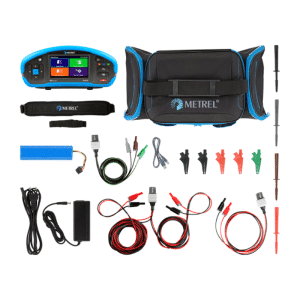

2 Year Metrel Warranty Included Includes the versatile, Bluetooth-enabled Metrel MI3125BT MFT Metrel A1532 simulates a vehicle attached to a charging point An economical kit which is perfect for testing electric vehicle charging points
⚡ Insulation resistance measuring according to UN ECE R100 measuring using internal DC source ⚡ Performing accurate four wire measurements with Kelvin clamps and up to 2 A measuring current ⚡ Settable duration and current direction (unidirectional or bidirectional) in the Micro Ohm measurement ⚡ Insulation range: wide range of insulation test voltages from 50 V to 1500 V, resistance measuring range up to…
An advanced kit specifically designed for testing electric vehicle charging points Includes the downloadable, Bluetooth-enabled Metrel MI3152 Eurotest XC MFT Metrel A1532 Adaptor allows state-by-state testing on charging points ⚡ Free Next Working Day Delivery ⚡ We Meet Or Beat Prices!
⚡ Connect Seaward PV modules and strings to multi-contact MC4 test sockets ⚡ Designed for use with Seaward PV150/PV200 solar testers ⚡ Rated safe to 1000V and 15A ⚡ Available as part of the Seaward PV100 Solar Installation Test Kit
⚡ Suitable for use with Seaward PV150 or PV200 Solar Testers ⚡ Test probes have removable tips for maximum flexibility ⚡ Standard MC4 connections and crocodile clips
Measures up to 1500V DC and 400A AC/DC current Bluetooth 5.0 for wireless data transfer Compatible with Seaward PV:1525 or standalone use Large 35mm jaw for thick PV cables Multi-function testing: voltage, current, resistance & more CAT IV 1000V / CAT III 1500V safety rated Backlit display and built-in LED torch Compact, lightweight, and ideal for field use

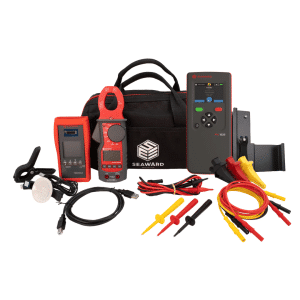

Handheld PV tester for systems up to 1500V DC / 25A Performs all key safety tests: Voc, Isc, insulation & continuity Supplied calibrated: tester & irradiance meter Optional calibration available for clamp meter Bluetooth enabled – sync results to mobile app & software Includes clamp meter & irradiance meter for complete testing Stores up to 1000 results with tagging for…
Designed for Seaward PV:1525 tester Quick-release solar panel mounting bracket Enables safe, hands-free operation Secure and easy to attach/remove Ideal for PV testing and site surveys
⚡ Carries out all electrical tests as required by MCS and IEC 62446 ⚡ Records irradiance & temperature while electrical testing is being conducted ⚡ Store and download up to 200 complete test records into certification software
⚡ 2 Year Warranty ⚡ Improved capacitive-induced in-rush protection by a factor of 300% ⚡ Supports safe testing of energised PV arrays ⚡ Combines the PV commissioning tests required by IEC 62446
⚡ Lightweight, handheld tester for comfortable use ⚡ Affordable, efficient comprehensive PV diagnostic tool ⚡ Easy to use - fast, push-button operation ⚡ All-in-one - performs all commissioning tests and IV-curve tracing in accordance with IEC 62446 and IEC 61829 ⚡ Test individual PV modules or strings
3-colour test lead set (red, yellow, black) 1.5m leads with 4mm connectors Includes probes and alligator clips Suitable for electrical and PV testing Durable and easy to use
⚡ Suitable for use with Seaward Solar PV150 and PV200 PV installation testers ⚡ Measures current up to 300A ⚡ Moving jaw clamp with maximum clamping diameter of 22mm
